2 Buttons

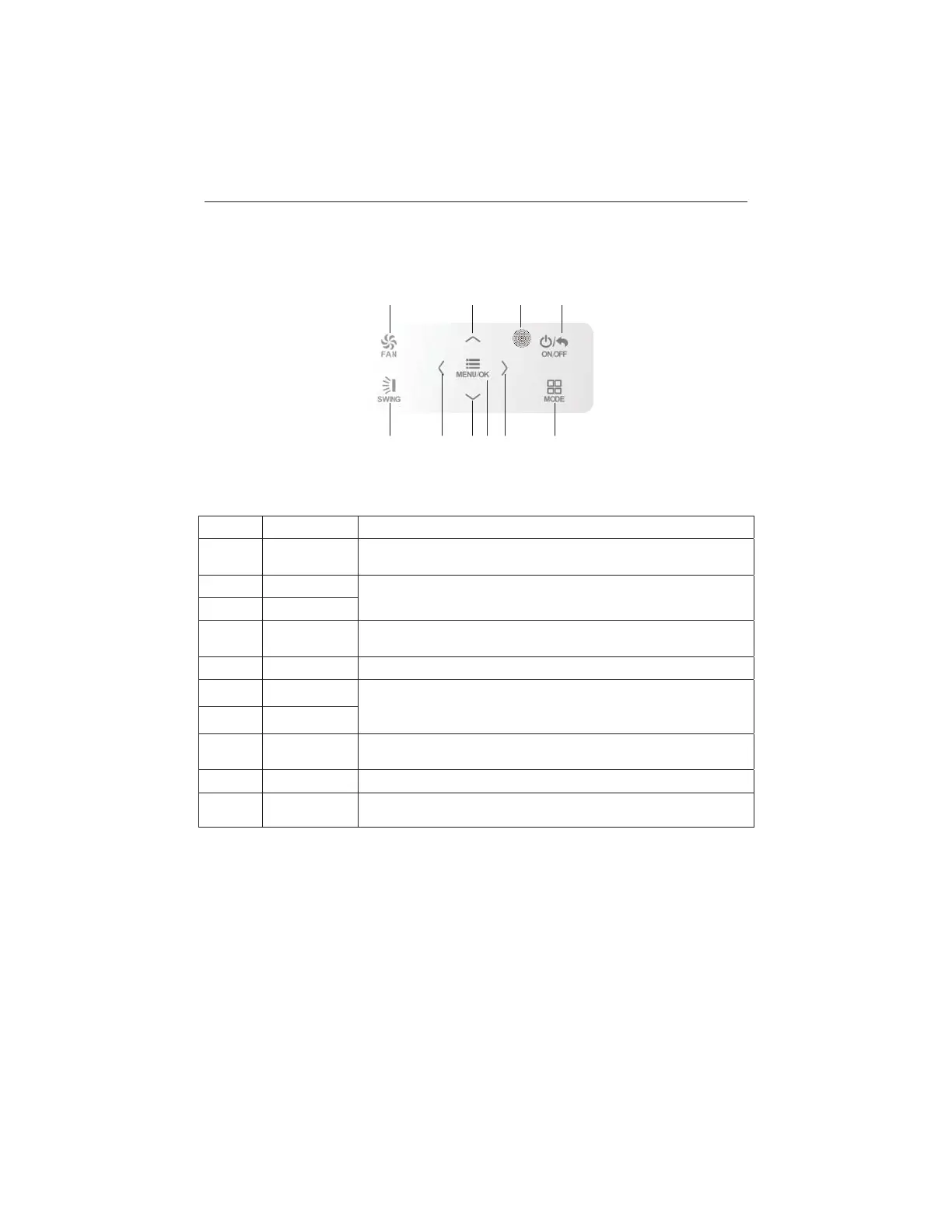

2.1 Button Graphics

Fig. 2 Button graphics
2.2 Function Instructions of Buttons
No. Button name Button Function
1FAN
Set low speed, medium speed,high speed, turbo and auto speed.
2
ġ
(1) Set temperature
(2) Set parameter
(3) Move option cursor
6
Ģ
3 ON/OFF/BACK
(1) Turn on or turn off unit
(2) Return to last page
4
SWING Set up&down SWING (louver) and set left&right louver
5
˘
(1) Set related function on or off
(2) Move option cursor
(3) Set parameter
8
˚
7MENU/OK
(1) Enter menu page
(2) Confirm setting
9
10
MODE Set auto, cooling, dry, fan and heating modes for indoor unit.
3 Operation Instructions
3.1 Menu Structure
Normal setting of wired controller can be set directly on the main page,
including fan speed, SWING (louver), set temperature, mode, ON/OFF. The
setting and status view of other functions can be set in corresponding sub-
menu. Detailed menu structure is as shown in Fig. 3.
3
12 3
456
10
978
Remote control
receiver window
