Wired Controller DWUNI User Manual
3.6 SWING (Louver) Setting
When unit is in ON status, press SWING button for louver setting. Two
louver modes are available: fixed-angle louver and simple louver.
. Up&down

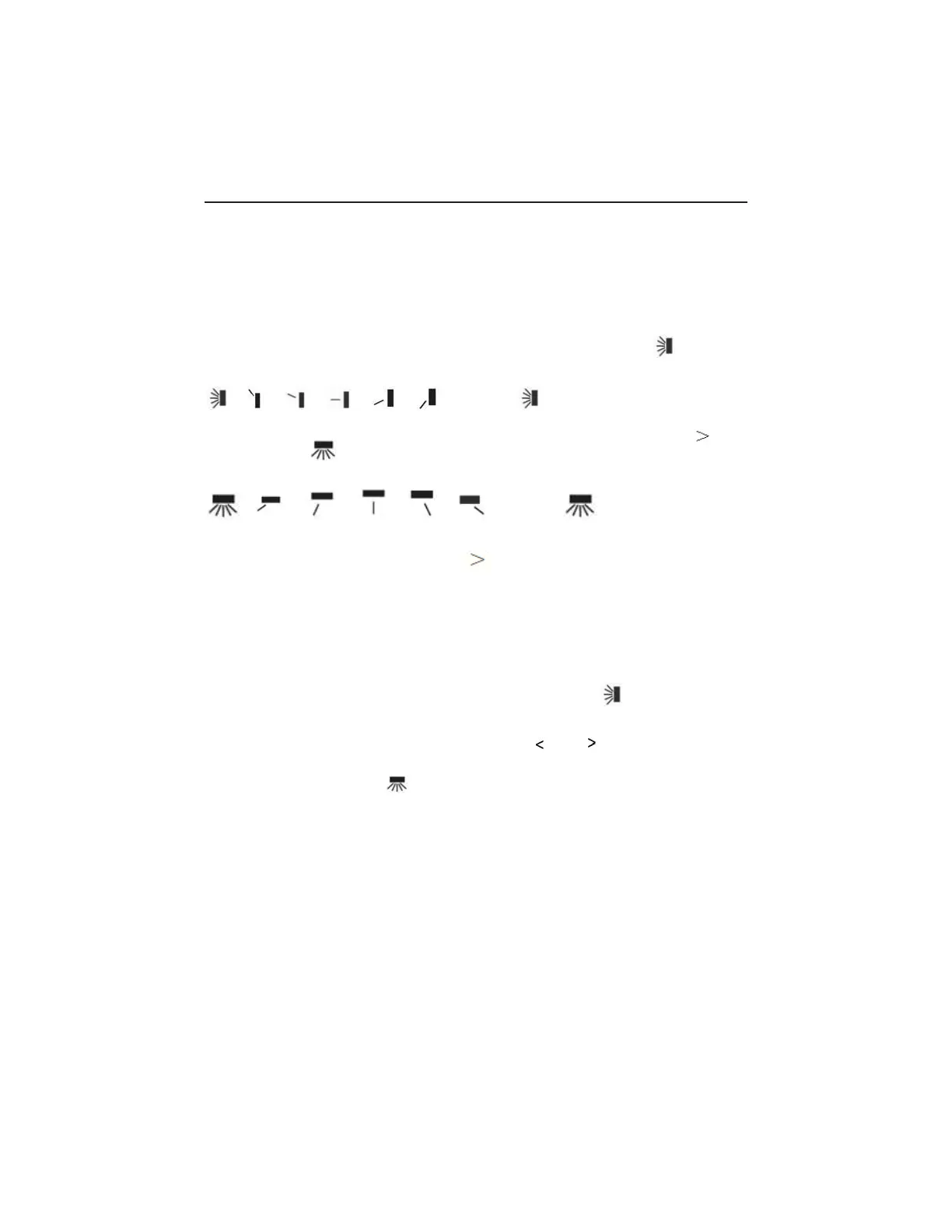

When fixed-angle louver mode is set, louver operation is a follows:
When unit is in ON status, press SWING button to select
up&down louver. louver angle is adjusted as below:
ĺ ĺ ĺ ĺ ĺ ĺ closed ĺ
Select up&down and left&right louver by the “
˘
” or “ ”
button. Select left&right louver to adjust the louver angle as
follows:
ĺ ĺ ĺ ĺ ĺ ĺ closedĺ
Note:
ķ
.
Turn on fixed-angle louver mode in f function setting page;
ĸ
.
If fixed-angle louver is not available for the model, fixed-angle louver is
invalid when the wired controller turns on fixed-angle louver mode.
Simple louver mode: when fixed-angle louver mode is turned off, louver operation
is as below:
Pressing SWING button under unit on status, up&down louver frame occurs.
Press SWING button to turn on or off up&down louver. is displayed when
up&down louver is on and is not displayed when up&down louver is off. If
up&down louver frame does not disappear, press “ ” or “ ” button to switch to
left&right louver setting. Left&right louver frame occurs. Press SWING button to turn
on or off left&right louver. is displayed when left&right louver is on and is not
displayed when left&right louver is off. For detailed operation, please refer to Fig. 7.
