FIRECLASS Fire detection system Mounting Repeater Panels
Installation Guide Doc. version 2.0 16
– Hang the repeater on the loose screws and screw
the bottom two bolts.
– Tighten the four screws until the panel is fitted
securely.
5 Remove debris from the housing.
6 To connect the repeaters, refer to “Install FCZ4x or
FCZ8x Zonal Indicators” on page 44.
.
480.0
140.0
149.5
410.0
40.0 330.0 40.0
27.0 378.0
85.0 240.0 85.0

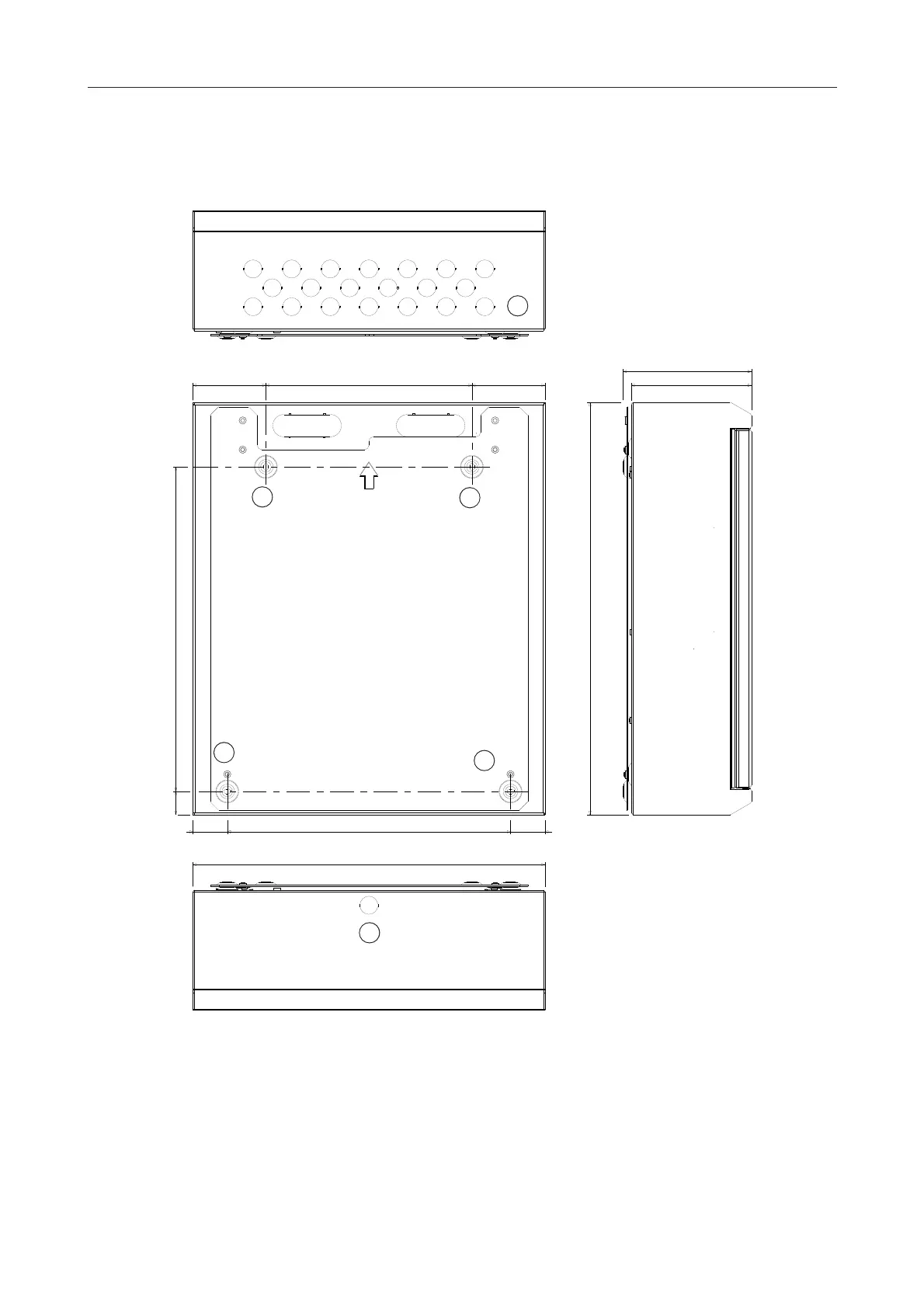

Fig. 14: FireClass Single Loop Panel Shallow and FC8AS FireClass AC Repeater - Overall and Fixing Dimensions Knockouts
Ø 20 mm (13x)
1 – Knockouts
2 – Mounting hole Ø 5.5 mm
1
2
2
1
2
2
