FIRECLASS Fire detection system Mounting the IOB800 and FB800 boards

Installation Guide Doc. version 2.0 38

IOB800

S1 Position Setting Activation by Emergency

Alarm

1. (XT3.1,2,3Relay_1) OFF * / ON Disabled / Enabled

2. (XT3.4,5,6Relay_2) OFF * / ON Disabled / Enabled

3. (XT3.7,8,9Relay_3) OFF * / ON Disabled / Enabled

4. (XT3.10,11,12Relay_4) OFF * / ON Disabled / Enabled

5. (XT4.1,2,3Relay_5) OFF * / ON Disabled / Enabled

6. (XT4.4,5,6Relay_6) OFF * / ON Disabled / Enabled

7. (XT4.7,8,9Relay_7) OFF * / ON Disabled / Enabled

8. (XT4.10,11,12Relay_8) OFF * / ON Disabled / Enabled

Table 35: IOB800 - Relay Output Activations by Emergency Alarm setting

* Default

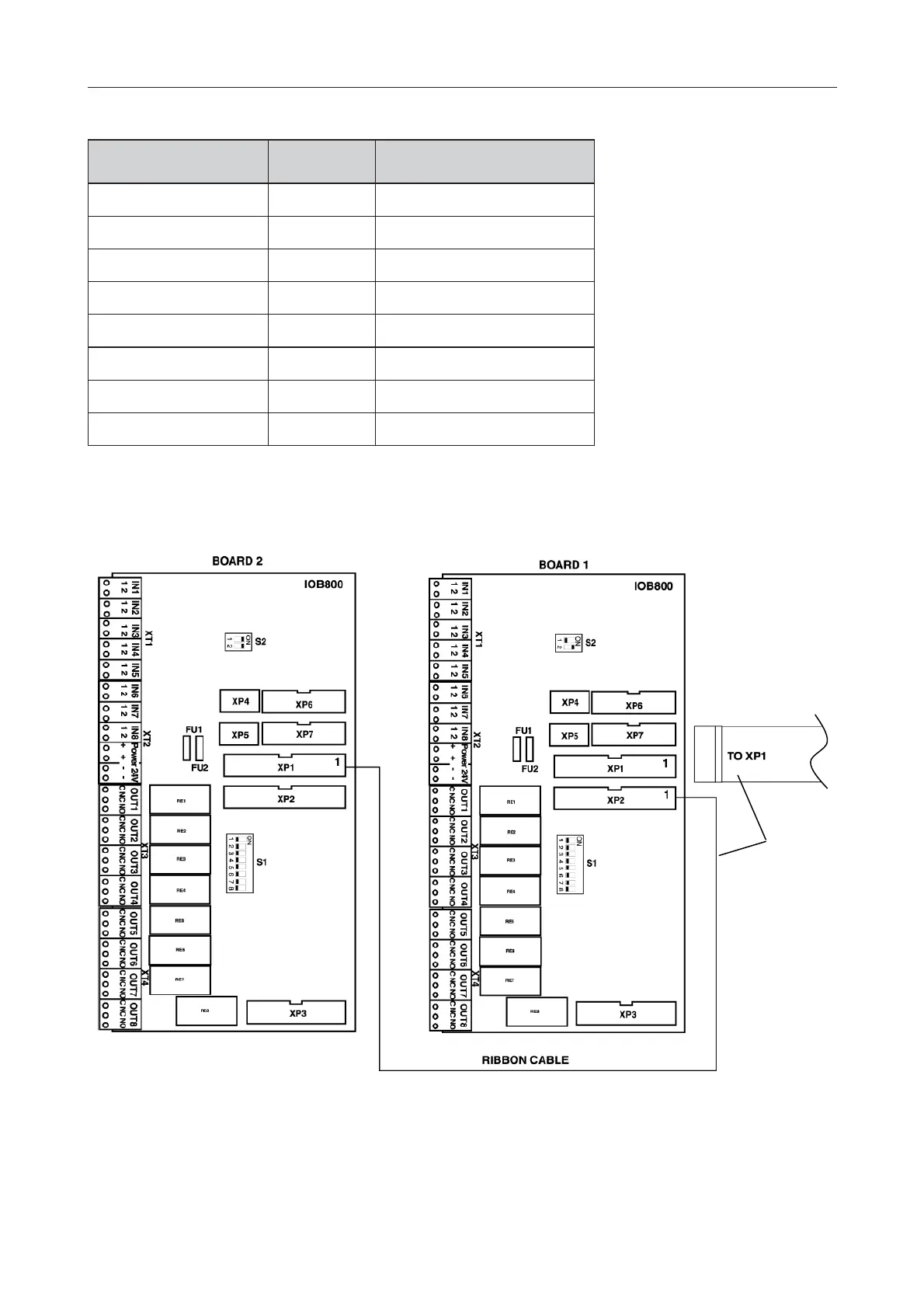

Fig. 29: IOB800 - Switch, terminal and connector positions.

IO-Bus
