28
Hardware Installation—Installing the IFC-1010/2020

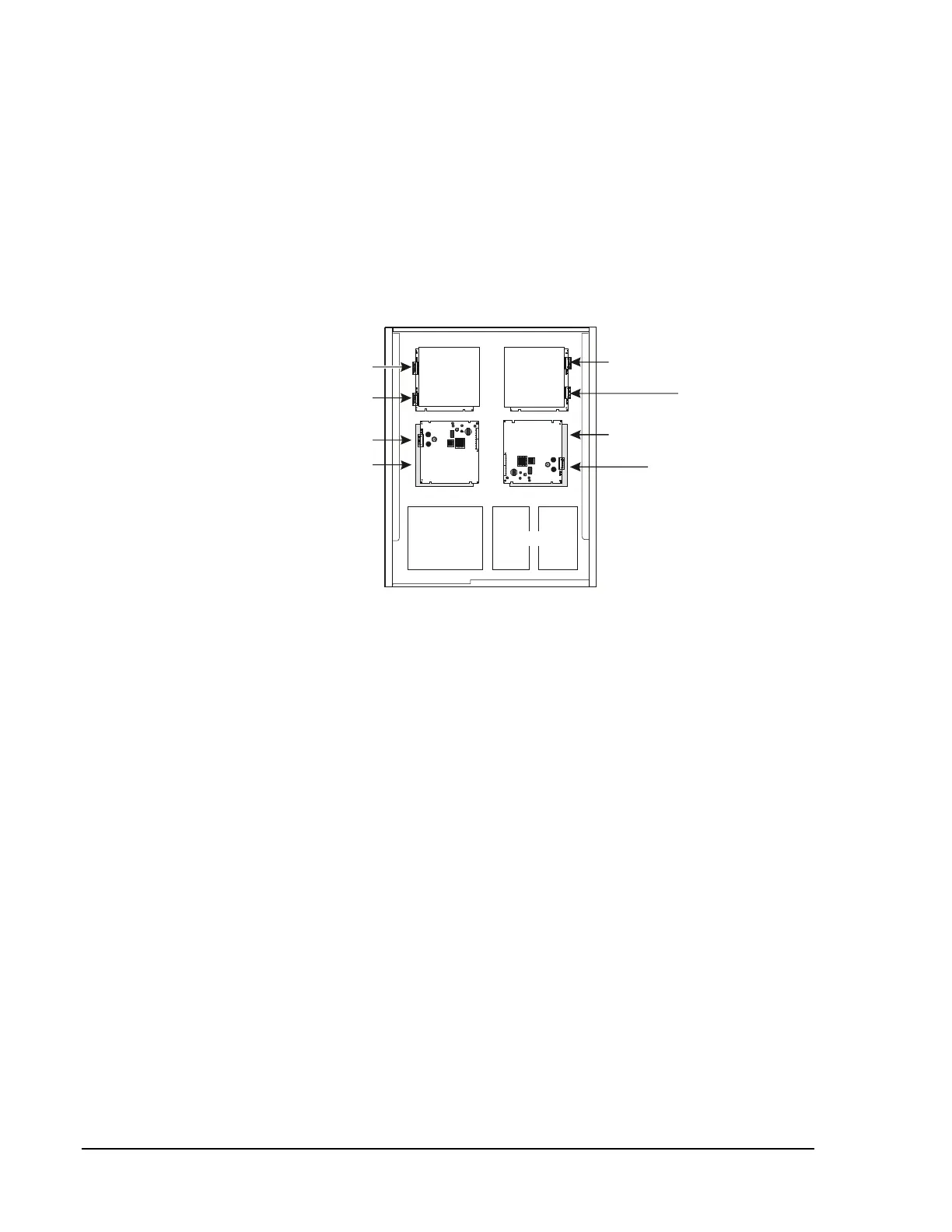

Figure 20 depicts the LIB SLC numbering scheme for an IFC-1010 in a
CAB-B3 cabinet. If CAB-A3 cabinet is used with LIB-400 modules
exclusively, it may house a maximum four loop IFC-1010 system. One or
two ICA-4L or ICA-4 chassis are required to mount the LIB modules,
depending upon the number and type of LIB modules employed. Refer to
Figure 21 as an example of IFC-2020 applications.
Note: The installation of LIB modules resulting in duplicate LIB SLC
numbers is never permitted.
Loop 1 (LIB-200)
Loop 4 (LIB-400)
Loop 3
Loop 2
(LIB-400, LIB-200A, or LIB-200)
Loop 3 (LIB-200)
Loop 4
( LIB-200)LIB-200A or
Do Not Install
Any LIB Here!
Do Not Install
Any LIB Here!
MPS-24A
or
MPS-24AE
Batteries
libmix1
SIB
CPU
Figure 20: IFC-1010 LIB SLC Numbering Scheme
