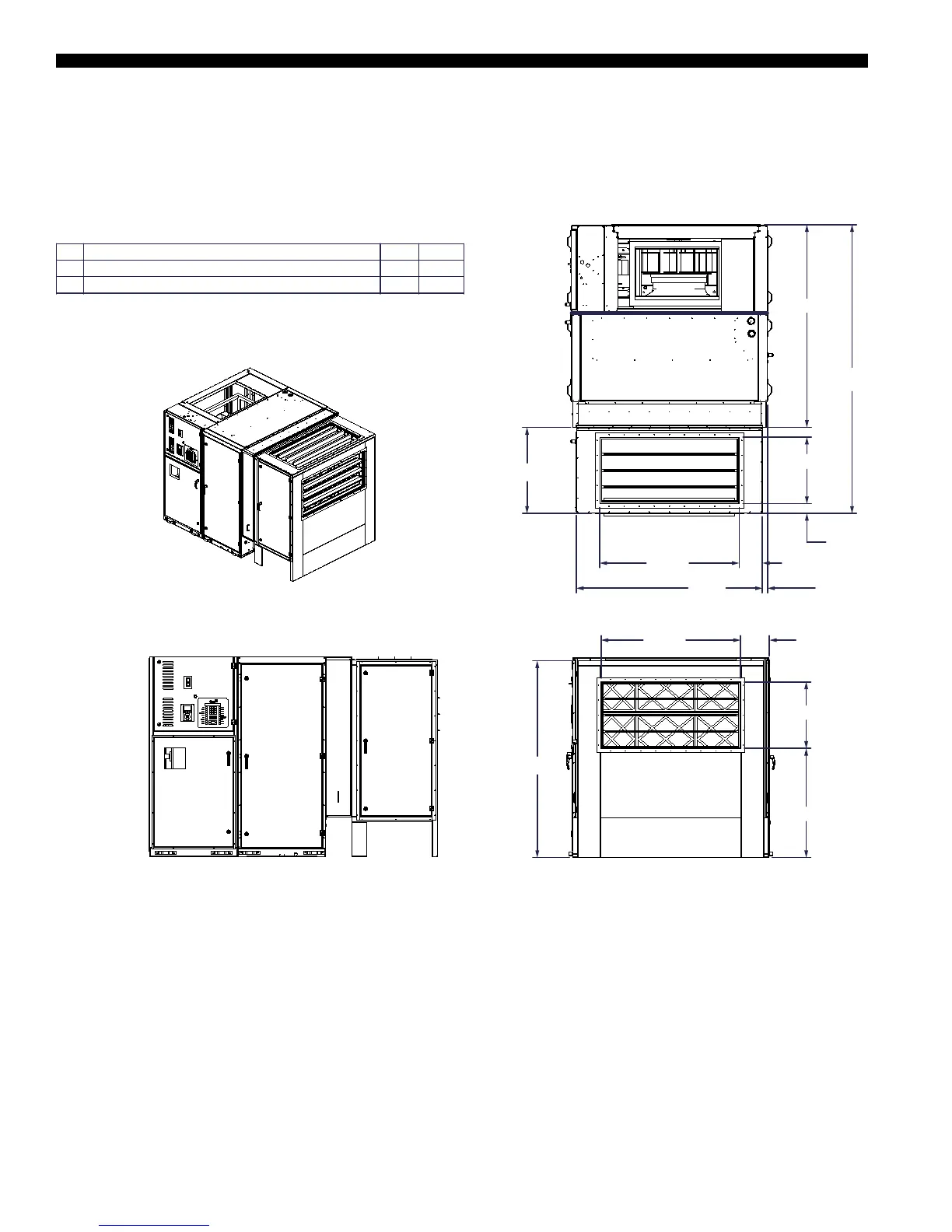

AIRSIDE ECONOMIZER OPTION
LSWU025–040 MODELS
*MINIMUM INTERIOR DUCT DIMENSIONS
NOTE: AIRSIDE ECONOMIZER WILL BE SHIPPED SEPARATELY
NO. FILTER OPTIONS "A" "B"
1
2
4" FILTER 76.43 110.65
4" PRE-FILTER + 4" HIGH EFFICIENCY FILTER 80.68 114.90
34.22
"A"
("B")
26.47*
3.86*
9.26*55.47*
74.06 2.00
COIL SECTION
FILTER SECTION
FAN SECTION
AIRSIDE ECONOMIZER
78.32
55.47*
11.51*
26.47*
43.41*
Dimensional Data (Cont’d)
