FORM 145.05-EG2 (618)
JOHNSON CONTROLS
39

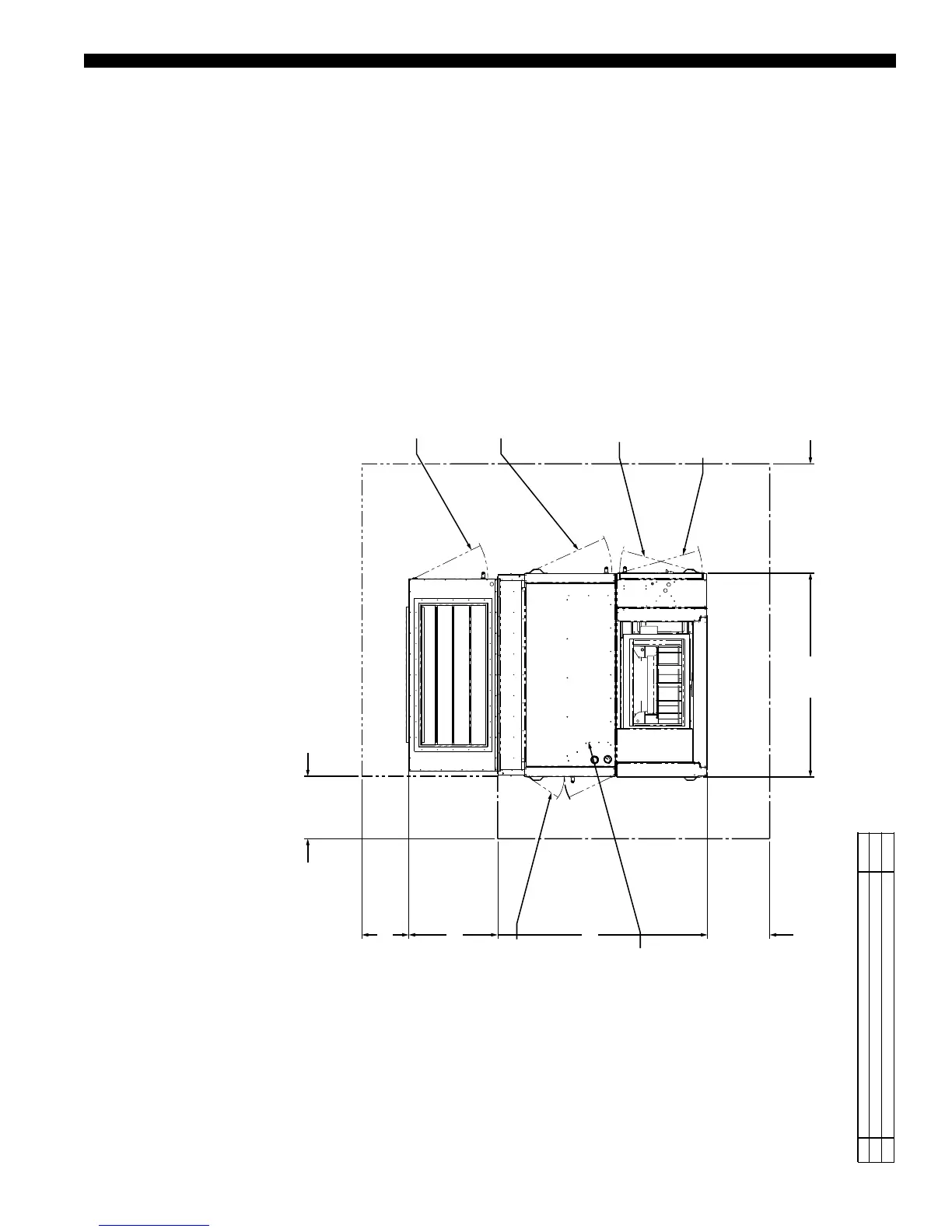

AIRSIDE ECONOMIZER SERVICE CLEARANCES
LSWU025–040 MODELS
24” CLEARANCE REQUIRED ON
STANDARD UNITS; 3” CLEARANCE
REQUIRED ON UNITS WITH RIGHT
AND REAR ACCESS ONLY OPTION
OPTIONAL WHEN CLEARANCE IS
AVAILABLE - REMOVABLE DOORS
WITH HINGES, ONE DOOR HANDLE,
AND ONE TOOL-OPERATED LATCH
REMOVABLE INTERNAL PANEL IS
PROVIDED FOR ACCESS TO WATER
VALVES WHEN NO LEFT SIDE
CLEARANCE IS REQUIRED
24” CLEARANCE REQUIRED ON
STANDARD UNITS; 3” CLEARANCE
REQUIRED ON UNITS WITH RIGHT
AND REAR ACCESS ONLY OPTION
REMOVABLE DOOR WITH HINGES, ONE DOOR HANDLE, AND TOOL- OPERATED LATCH REMOVABLE DOOR WITH HINGES, ONE DOOR HANDLE, AND TOOL- OPERATED LATCH
ENTRY DOOR (UNDER) STANDARD 32” WIDE X 44” HIGH NOMINAL WITH ONE DOOR HANDLE AND TOOL- OPERATED LATCH
ELECTRICAL PANEL DOOR (OVER), NONREMOVABLE WITH HINGES, ONE DOOR HANDLE, AND TOOL- OPERATED LATCH
REAR
FILTER SECTION
COIL SECTION
FAN SECTION
FRONT
LEFT
RIGHT
18” CLEARANCE
42” CLEARANCE
34.22”
78.37”
“A”
FILTER OPTIONS “A”NO.
1
2
4” FILTER
4” PRE-FILTER + 4” HIGH EFFICIENCY FILTER
76.43
80.68
