FORM 145.05-EG2 (618)
JOHNSON CONTROLS
43

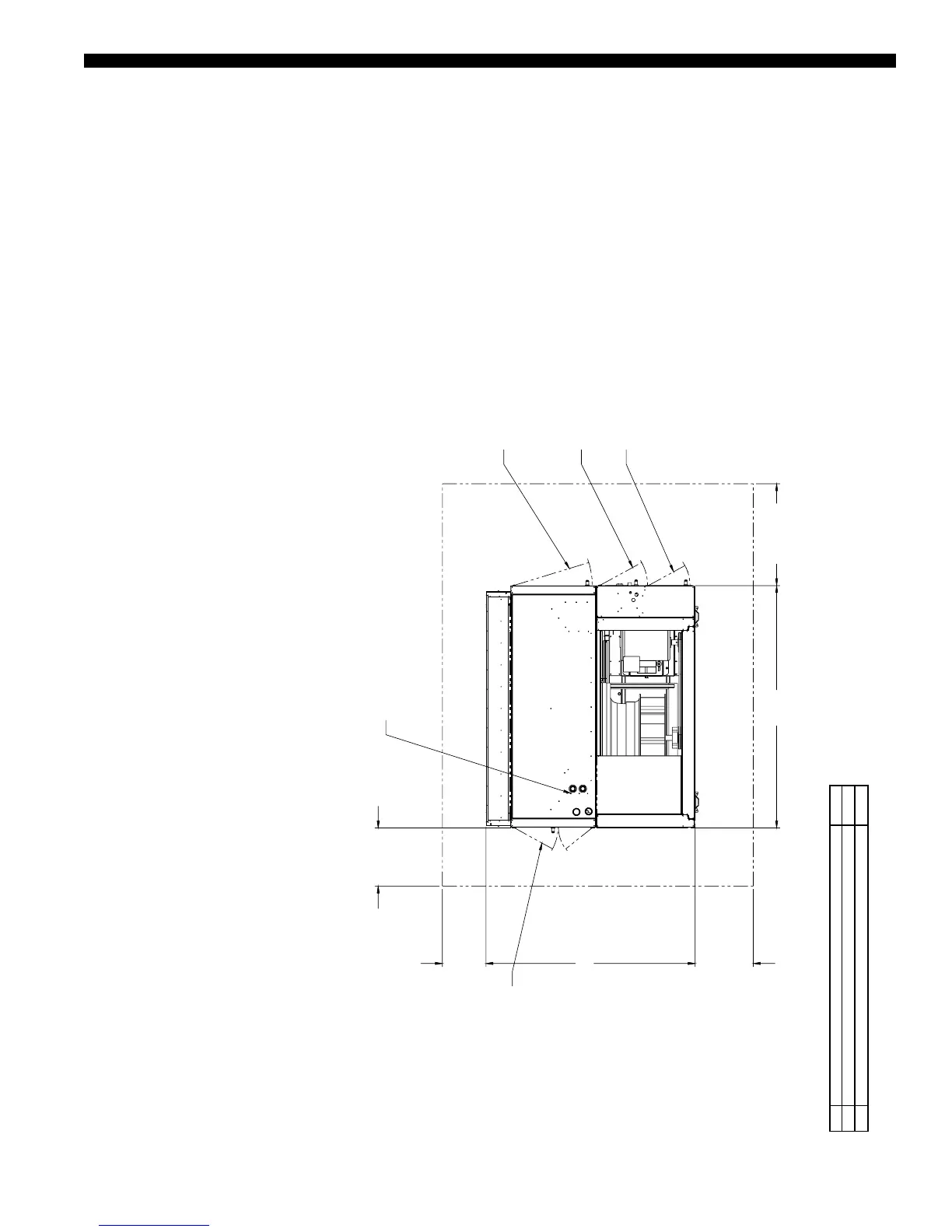

OVERVIEW OF SERVICE CLEARANCES
LSWU050–060 MODELS
24” CLEARANCE REQUIRED ON
STANDARD UNITS; 3” CLEARANCE
REQUIRED ON UNITS WITH RIGHT
AND REAR ACCESS ONLY OPTION
OPTIONAL WHEN CLEARANCE IS
AVAILABLE - REMOVABLE DOORS
WITH HINGES, ONE DOOR HANDLE,
AND ONE TOOL-OPERATED LATCH
REMOVABLE INTERNAL PANEL IS PROVIDED
FOR ACCESS TO WATER VALVES WHEN NO
LEFT SIDE CLEARANCE IS REQUIRED
24” CLEARANCE REQUIRED ON
STANDARD UNITS; 3” CLEARANCE
REQUIRED ON UNITS WITH RIGHT
AND REAR ACCESS ONLY OPTION
REMOVABLE DOOR WITH HINGES, ONE DOOR HANDLE, AND TOOL- OPERATED LATCH ENTRY DOOR STANDARD 32” WIDE X 44” HIGH NOMINAL WITH ONE DOOR HANDLE AND TOOL-OPERATED LATCH
ELECTRICAL PANEL DOOR, NONREMOV
ABLE
WITH HINGES, ONE DOOR HANDLE, AND TOOL-OPERATED LATCH
REAR
FILTER SECTION
COIL SECTION
FAN SECTION
FRONT
LEFT
RIGHT
18” CLEARANCE
42”
CLEARANCE
99.94”
“A”
FILTER OPTIONS “A”NO.
1 2
4” FILTER
4” PRE-FILTER + 4” HIGH EFFICIENCY FILTER
82.00 86.25
