Operating Instructions—IFC-200 Operating Instructions 3
Operating Instructions
200CIRBD
123
654
78
9
*
0#
ABC DEF
GHI JKL MNO
PRS TUV WXY
Q Z
.
ENTER
IFC-200
ANALOG FIRE PANEL
ALL SYSTEMS NORMAL
12:00 FRI 12/24/93
AC POWER
FIRE ALARM
PRE-ALARM
WARNING
DET MOD
SUPERVISORY
ALARM
SILENCED
SYSTEM
TROUBLE
ACKNOWLEDGE
STEP
ALARM
SILENCE
SYSTEM RESET
DRILL
HOLD 2 SECONDS

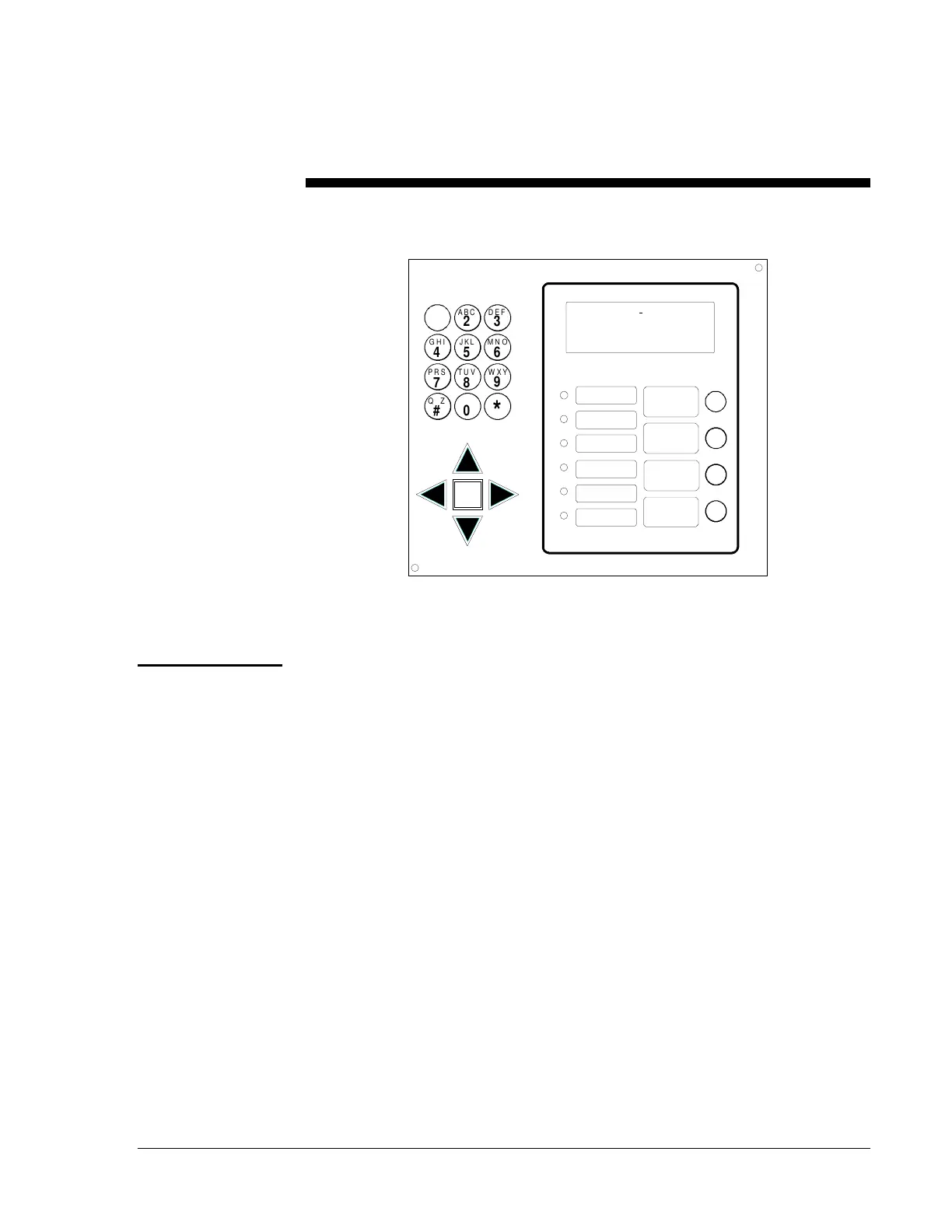

Figure 1: The IFC-200 Membrane Switch Panel
The ACKNOWLEDGE/STEP key silences the piezo sounder and changes
all flashing conditions to steady. Only one press is necessary regardless of
the number of new alarms, troubles, or supervisory signals. If the piezo
was silenced, depressing the switch sends an ACKNOWLEDGE message
to the printer and history file.
ACKNOWLEDGE also automatically sends a special command to the
LCD-80 and ACS annunciators to silence their piezo.
If more than one event exists, ACKNOWLEDGE/STEP advances the
display to the next item and holds there for 20 seconds, or until the
ACKNOWLEDGE/STEP key is pressed again.
ALARM SILENCE performs all functions of ACKNOWLEDGE/STEP.
In addition, if an alarm exists, it turns off all silenceable circuits and
illuminates the ALARM SILENCE LED. It sends an “Alarm Silenced”
message to the printer and the history file.
A subsequent new alarm will resound the system.
Switch
Functions
Acknowledge/
Step
Alarm Silence
