58 VAV Controller—Variable Air Volume Controller
OUT 1
COM 2
VDC 3
TE1
Room
Sensor
BINARY INANALOG INPUTS
BINARY OUTPUTS
DSI
DPT1
120VAC 24VAC
DPT2
DA1
Damper
Actuator
DA2
EXH
vavwe2a
VA1
Proportional
Valve
Actuator
OUT 1
COM 2
VDC 3
Power
Transformer
120/24VAC

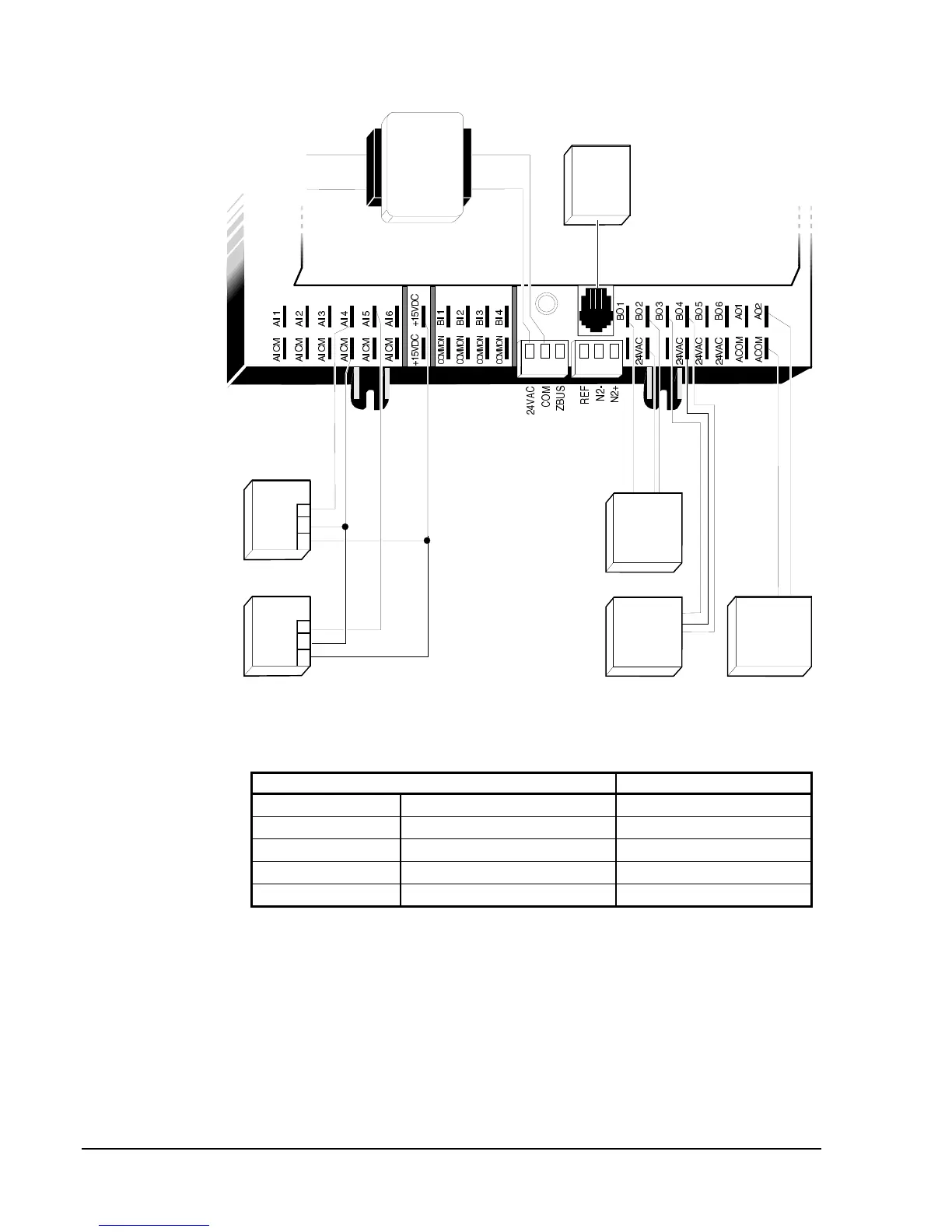

Figure 26: Single Duct Wiring Example 2
Table 21: Single Duct Wiring Example 2 Bill of Materials
Component Description Part Number
C1
Digital Controller AS-VAV111-1
TE1
Metastat TE-6400 Series
DA1 and DPT1
Actuator/P Sensor
ATP-2040
VA1
Valve Actuator VA-8022 Series
DA2 and DPT2
Actuator/DP Sensor ATP-2040
