Johnson Controls R-410A Installation Manual

349218-JIM-F-0512
10 Johnson Controls Unitary Products

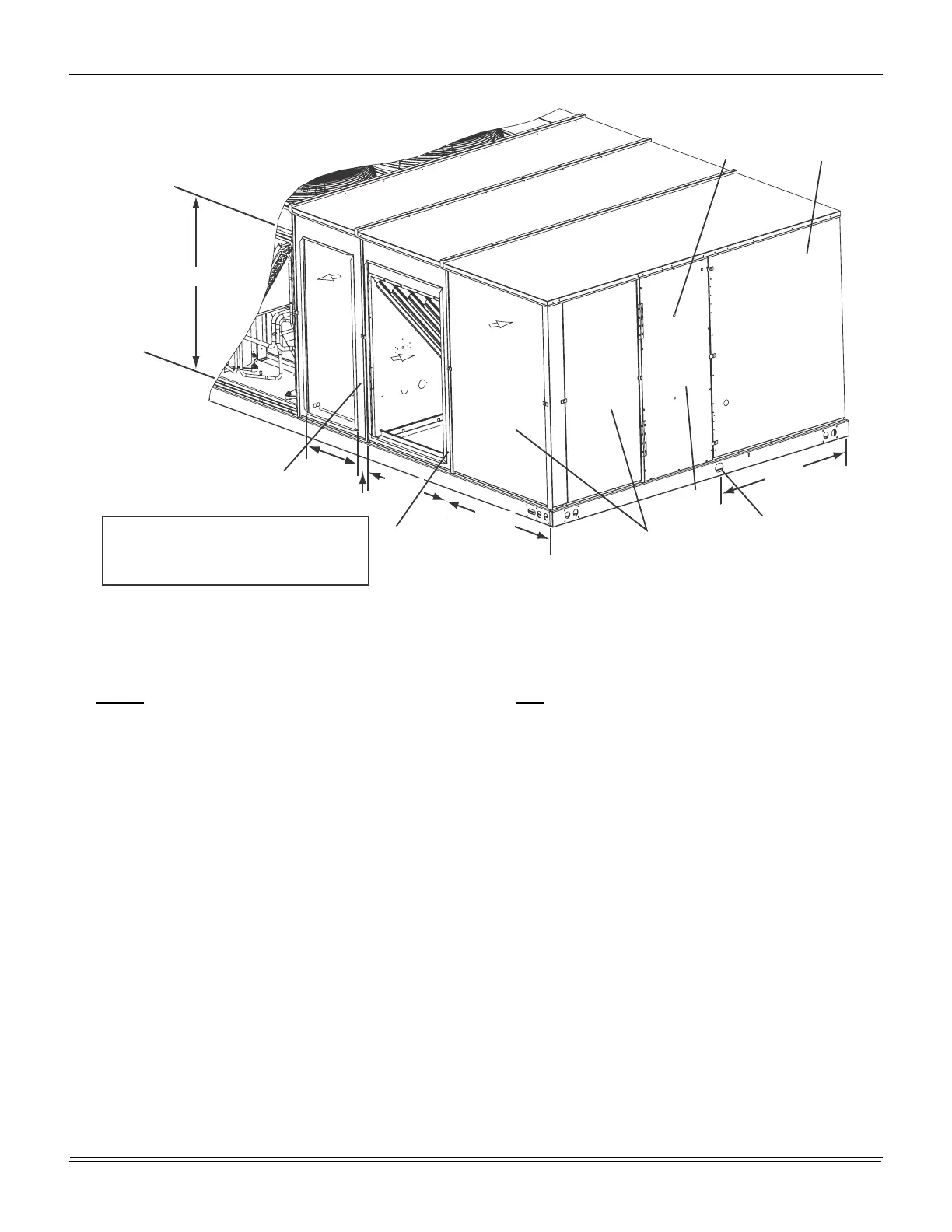

Figure 6: J15 thru 25 ZJ Unit Dimensions Rear View
NOTE: Units are shipped with the bottom duct openings
covered. An accessory flange kit is available for
connecting side ducts.
For
bottom duct applications:
1. Remove the side panels from the supply and return air
compartments to gain access to the bottom supply and
return air duct covers.
2. Remove and discard the bottom duct covers. Duct
openings are closed with sheet metal covers except when
the unit includes a power exhaust option. The covering
consists of a heavy black paper composition.
3. Replace the side supply and return air compartment
panels.
For side duct applications:
1. Replace the side panels on the supply and return air
compartments with the accessory flange kit panels.
2. Connect ductwork to the flanges on those panels.
Outdoor
Air
Supply
Air
Return
Air
40-1/2”
39-5/8”
Outdoor Air
Compartment
Access
Return Air
Access
Supply Air
Access
1” NPT Female
Cond. Drain
Connector
Evaporator
Section
Filter
Access
Dot Plug
(for Pressure
Drop Reading)
27-3/4”
18-5/8”
5-1/8”
40-3/8”
Dimensions listed are for side duct
flange opening; see Field Accessories
for Side Duct Flange Kit.
