349218-JIM-F-0512
8 Johnson Controls Unitary Products
Units may be moved or lifted with a forklift, from the side only,
providing an accessory skid is used.
LENGTH OF FORKS MUST BE A MINIMUM OF 90 INCHES.

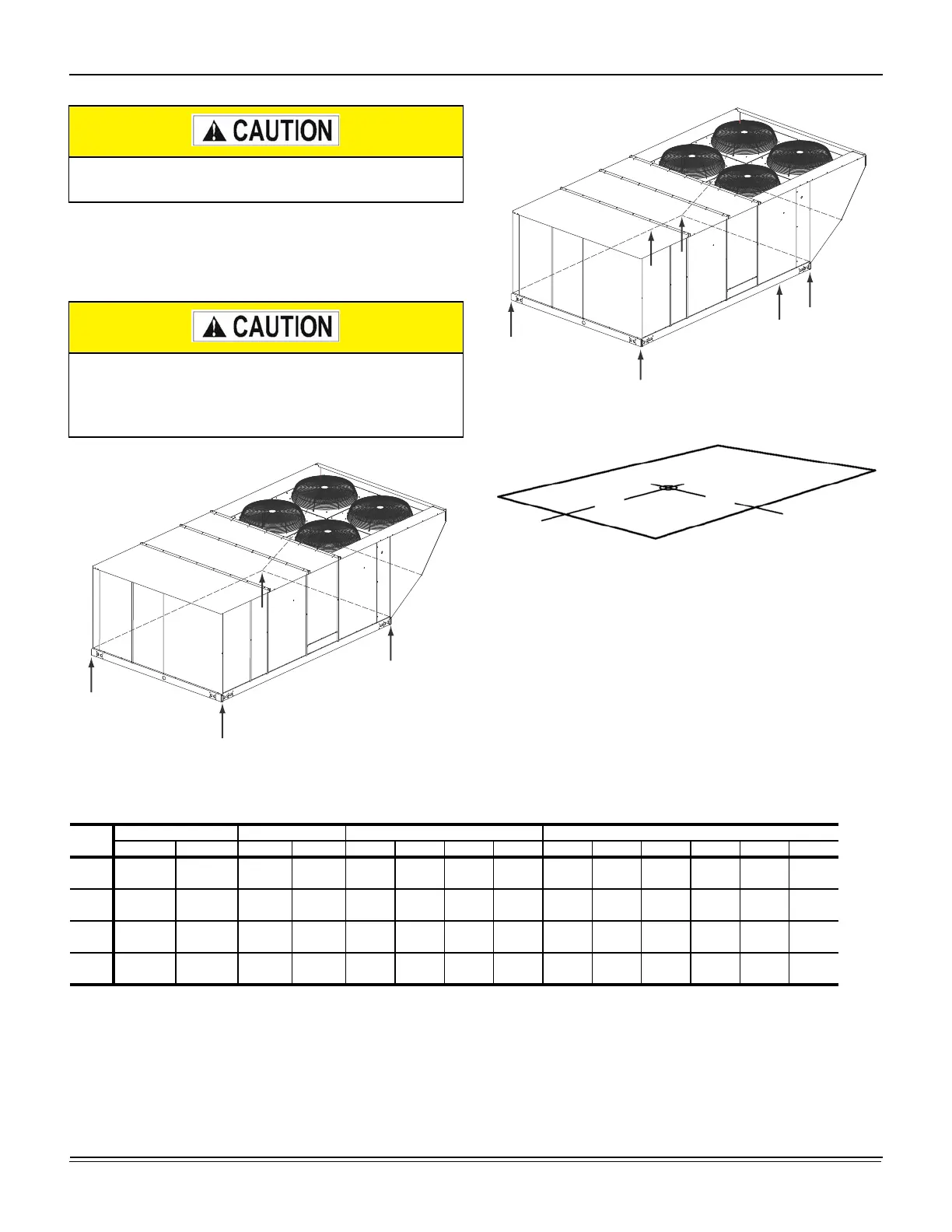

Figure 2: Unit 4 Point Load Weight
Figure 3: Unit 6 Point Load Weight
Figure 4: Center of Gravity
Before lifting, make sure the unit weight is distributed
equally on the rigging cables so it will lift evenly.
All panels must be secured in place when the unit is
lifted.
The condenser coils should be protected from rigging
cable damage with plywood or other suitable material.
A
D
B
C
A
D
E
C
F
B
X
Y
LEFT
FRONT
Table 2: Weights and Dimensions
Size
(Tons)
Weight (lbs.) Center of Gravity 4 Point Load Location (lbs.) 6 Point Load Location (lbs.)
Shipping Operating X Y ABCDABCDEF
J15ZJ
(15)
2614 2609 85.25 44 467 781 852 510 287 392 568 620 428 313
J18ZJ
(17.5)
2670 2665 85.25 44 477 797 870 520 293 401 580 633 437 320
J20ZJ
(20)
2702 2697 85.05 44 485 805 878 529 298 406 585 638 443 326
J25ZJ
(25)
2788 2783 85.25 44 498 833 908 544 306 419 606 661 457 334
