Charging The Unit

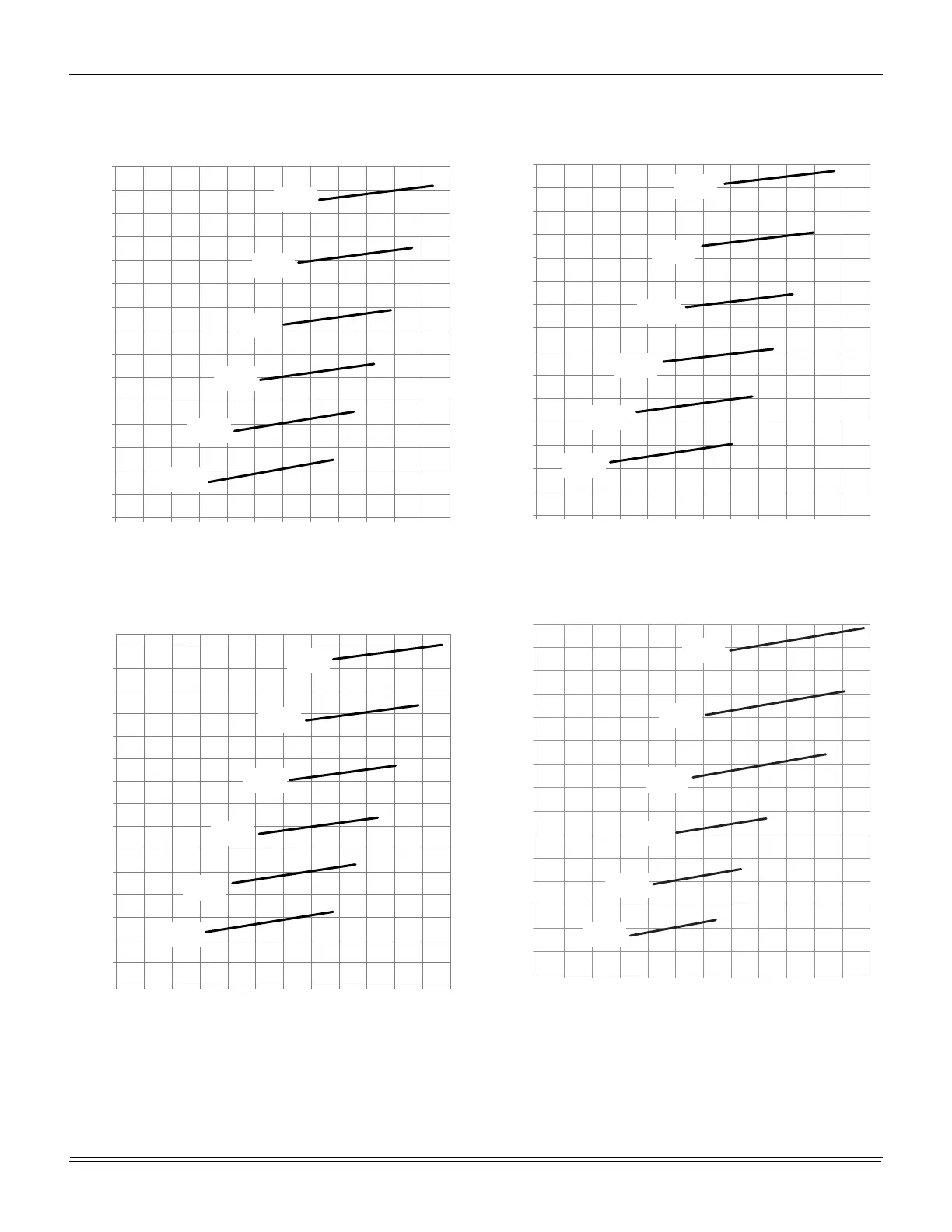

Figure 27: J15ZJ (15 Ton) Charging Chart
Figure 28: J18ZJ (17.5 Ton) Charging Chart
Figure 29: J20ZJ (20 Ton) Charging Chart
Figure 30: J25ZJ (25 Ton) Charging Chart
15 Ton Charging Chart
200
220
240
260
280
300
320
340
360
380
400
420
440
460
480
500
110 115 120 125 130 135 140 145 150 155 160 165 170
Suction Pressure (psig)
Discharge Pressure (psig)
115°F
Outdoor
105°F
Outdoor
95°F
Outdoor
85°F
Outdoor
75°F
Outdoor
65°F
Outdoor
17.5 Ton Charging Chart
200
220
240
260
280
300
320
340
360
380
400
420
440
460
480
500
110 115 120 125 130 135 140 145 150 155 160 165 170
Suction Pressure (psig)
Discharge Pressure (psig)
95°F
Outdoor
85°F
Outdoor
75°F
Outdoor
65°F
Outdoor
105°F
Outdoor
115°F
Outdoor
20 Ton Charging Chart
200
220
240
260
280
300
320
340
360
380
400
420
440
460
480
500
110 115 120 125 130 135 140 145 150 155 160 165 170
Suction Pressure (psig)
Discharge Pressure (psig)
115°F
Outdoor
105°F
Outdoor
95°F
Outdoor
85°F
Outdoor
75°F
Outdoor
65°F
Outdoor
25 Ton Charging Chart
230
250
270
290
310
330
350
370
390
410
430
450
470
490
510
530
95 100 105 110 115 120 125 130 135 140 145 150 155
Suction Pressure (psig)
Discharge Pressure (psig)
115°F
Outdoor
105°F
Outdoor
95°F
Outdoor
85°F
Outdoor
75°F
Outdoor
65°F
Outdoor
