Johnson Controls RSH Series User Manual

FORM 145.16-IOM2 (0611)
24 JOHNSON CONTROLS
G J L M
RSH007 34.00 19.00 13.00 31.75 21.50 16.50 10.50 6.75 7.25 6.00 6.07 2.50
RSH009 34.00 19.00 13.00 31.75 21.50 16.50 10.50 6.75 7.25 6.00 6.07 2.50
RSH012 34.00 19.00 13.00 31.75 21.50 18.50 10.50 6.75 7.25 6.00 6.07 2.50
RSH018 40.00 21.00 19.00 37.75 23.50 23.00 16.50 6.50 9.19 10.31 3.75 2.80
RSH024 44.00 21.00 19.00 41.75 23.50 24.50 16.50 6.50 9.19 10.31 4.81 2.80
RSH030 44.00 21.00 19.00 41.75 23.50 24.50 16.50 6.50 9.69 11.38 4.81 2.80
RSH036 48.00 22.00 21.00 45.75 24.50 27.50 18.50 6.50 9.69 11.38 5.88 2.80
RSH042 52.00 26.00 21.00 49.75 28.50 35.50 18.50 6.50 10.50 13.63 5.88 2.80
RSH048 52.00 26.00 21.00 49.75 28.50 35.50 18.50 6.50 10.50 13.63 5.13 2.80
RSH060 56.00 26.00 23.00 53.75 28.50 43.50 20.50 6.00 13.12 13.63 5.13 3.06
RSH070 56.00 26.00 23.00 53.75 28.50 43.50 20.50 6.00 13.12 13.63 5.13 3.06

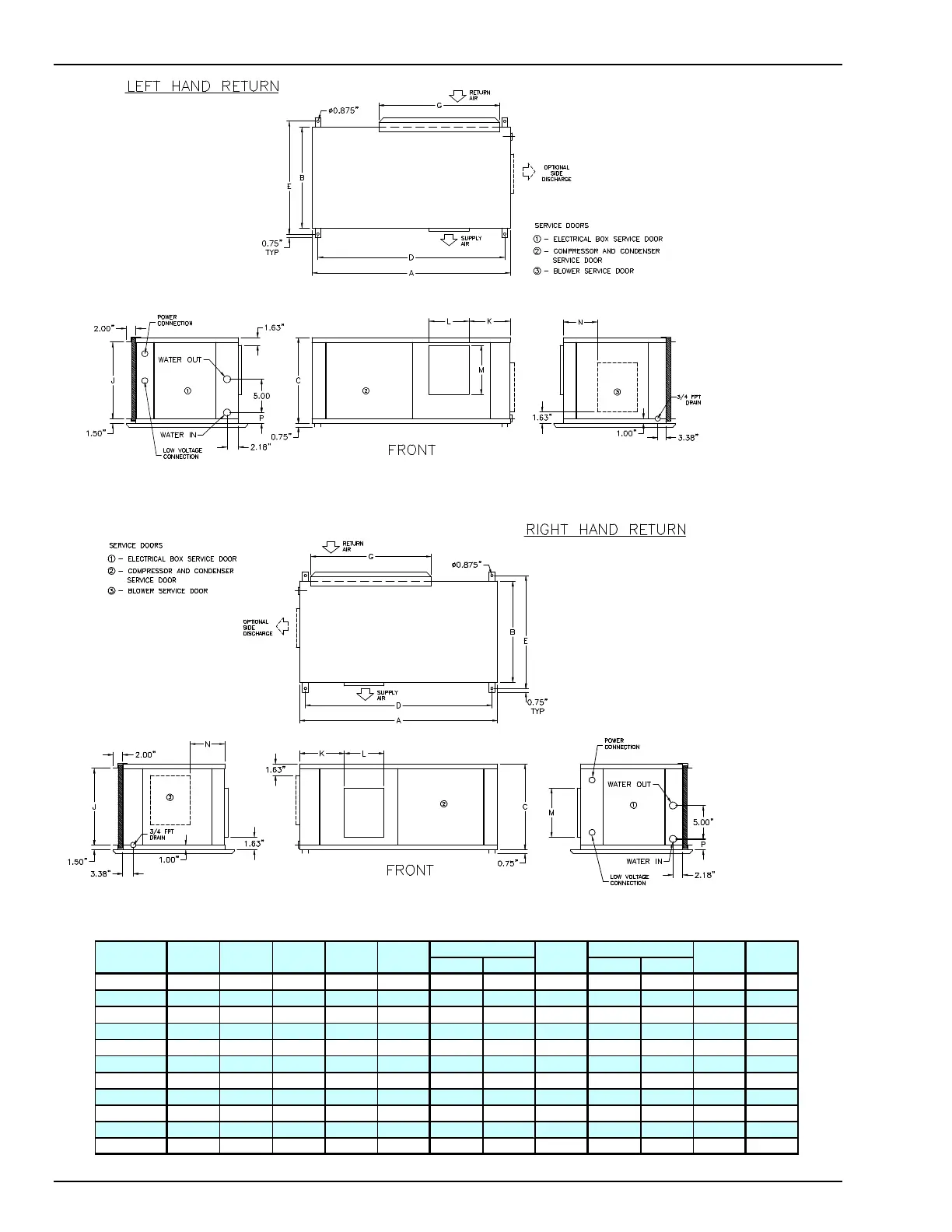

ALL DIMENSIONS IN INCHES
Model
A
PN
B C D E
RETURN AIR
K
SUPPLY AIR
