Delay profile:
The delay profile is an airflow profile that the system will run in COOL mode. These profiles are not
implemented in heating. Each profile is designed to accommodate the original environment where
the equipment is installed.
Airflow Summary
Airflow Configuration
The “View/Edit Dehum” check box, when selected, will display the option to reduce the airflow by a
selectable percentage when there is a call to dehumidify.

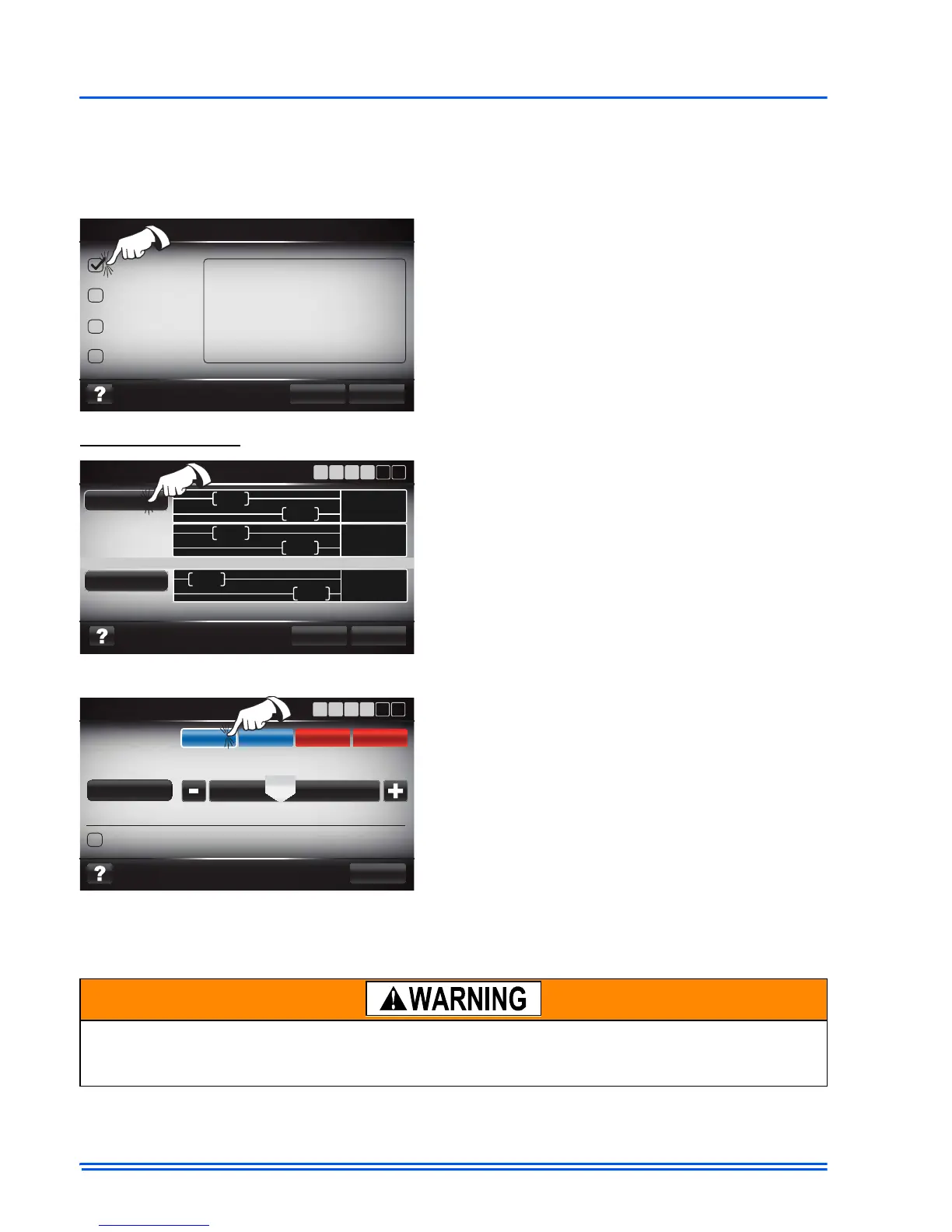

To change the delay profiles press the box next
to the profile that is desired (as pictured). Each of
the profiles, (when selected) will provide a brief
description of the profile design intent.
The airflow summary screen displays all current
airflow settings at a glance. To edit the airflow
settings press the indoor or outdoor button (heat
pump or air handler shown).
The airflow configuration screen shows the avail-
able airflow adjustments at the top of the screen
(High Cool, Low Cool, High Heat, etc.). Simply
press the desired adjustment to edit airflow.
Once in the desired airflow adjustment screen
the user can adjust the airflow by CFM (in 10
CFM increments) by sliding the “homeplate” icon
or pressing the “+” or “-“ symbols.
The “Restore Defaults” button will return the
airflow to the factory setting.
When changing airflow settings on electric heating components, the user should reference mini-
mum CFM values required for operation (provided in the communicating air handler installation
instructions).
