System 450™ Series Control Module with Ethernet Communications Installation Instructions
41
Analog Output Configuration Page

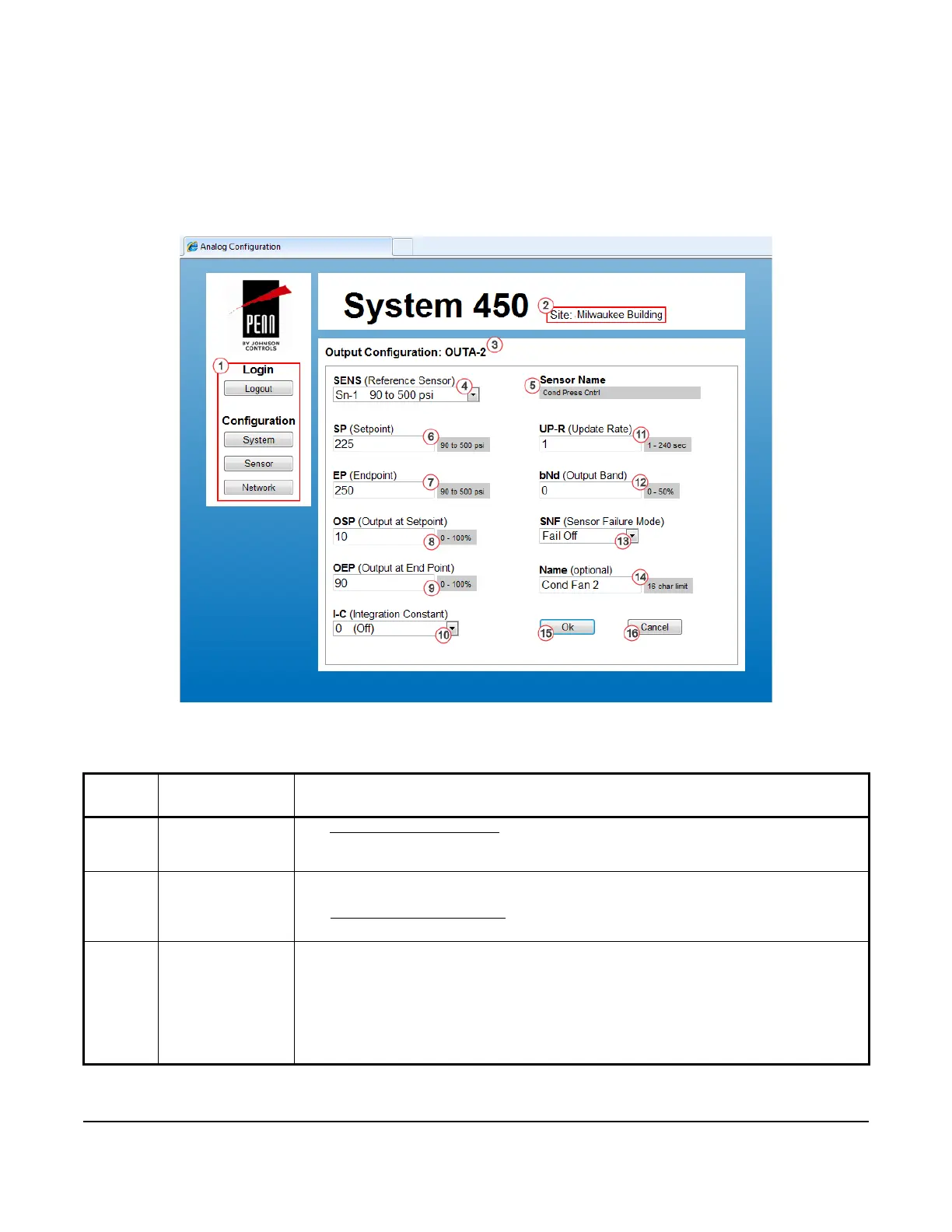

Figure 11 shows an example Analog Output Configuration Page for a System 450 control system that is set up and
operating.
Table 17 provides descriptions, user actions, and references for the items called out in Figure 11.
Table 17: System 450 Web UI Analog Output Configuration Page, User Actions, Descriptions, and
References (Part 1 of 3)
Callout
Number
Identifier / Item
Name
User Actions, Descriptions, References
1 Logout and
Configuration
Buttons
See System Configuration Page
on page 35 for descriptions and user actions regarding the
System, Sensor, and Network buttons.
2Site NameDisplays the assigned site name. You can assign a website name on the Network
Configuration page.
See Network Configuration Page
on page 47 for more information about assigning a site
name.
3Output
Configuration:
OUTA-2
Displays the output type (OUTA or OUTR) and output number (-n), which are assigned by
the control module.
Note: When you first power on a System 450 module assembly, the control module
automatically detects the connected outputs and assigns an output type and number for
each connected output.
In this example, an analog output is detected and identified in the number 2 position in the
module assembly (OUTA-2).
Figure 11: System 450 Analog Output Configuration Page Example
