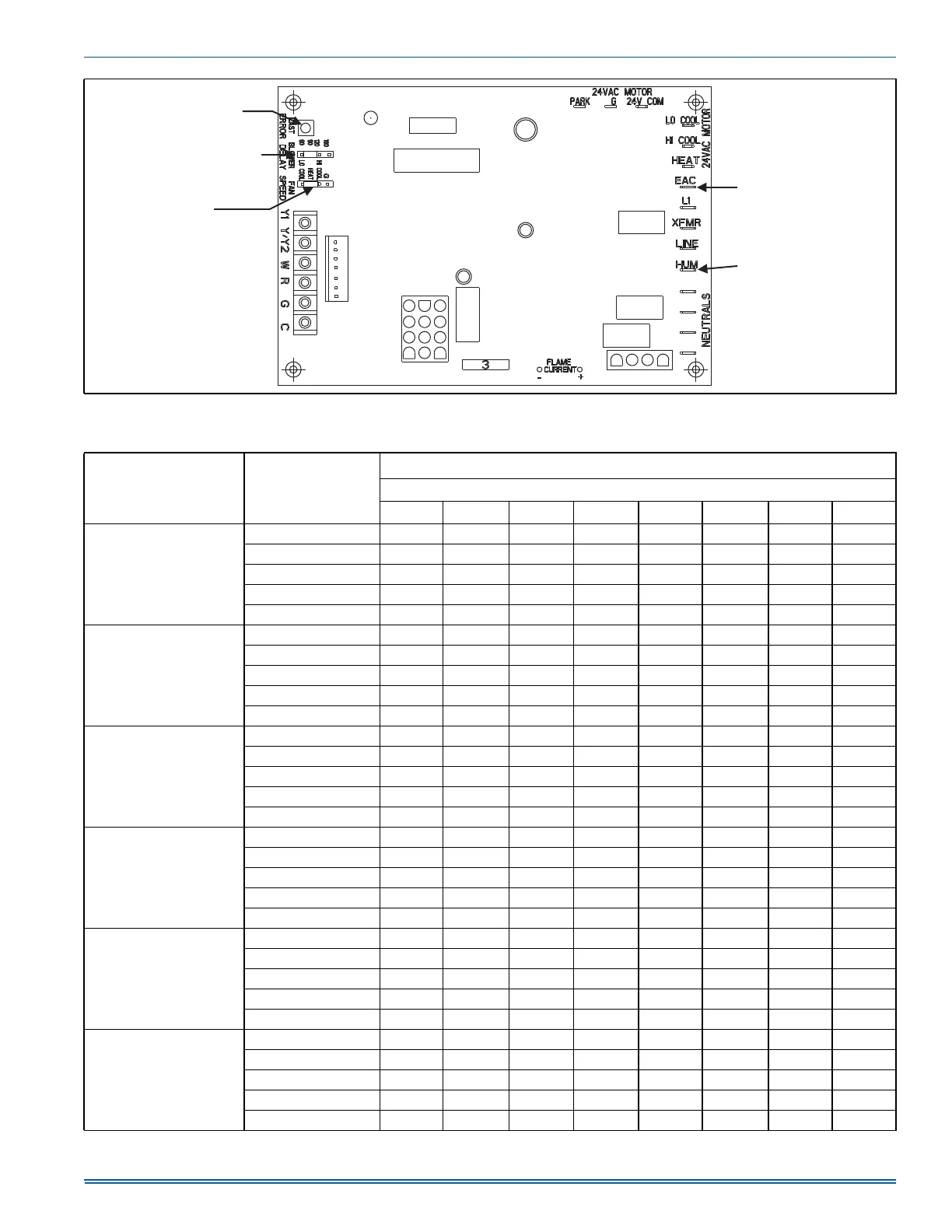

FIGURE 20: Furnace Control Board
Table 13: Blower Performance CFM - Any Position (without filter)
Models Speed
Airflow Data (SCFM)
1, 2
Ext. Static Pressure (in. H2O)
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8
040A12
High 1408 1358 1313 1275 1227 1180 1133 1088
Medium High 1195 1153 1093 1043 1005 957 904 850
Medium 1053 1008 954 897 851 797 755 702
Medium Low 947 892 838 783 738 684 626 582
Low 649 697 682 630 575 518 471 422
060A12
High 1343 1309 1279 1238 1193 1163 1123 1075
Medium High 1149 1107 1074 1031 993 942 900 857
Medium 997 959 911 877 825 777 737 697
Medium Low 921 878 831 782 731 696 651 599
Low 838 784 742 695 648 601 551 518
080B12
High 1457 1421 1387 1358 1325 1289 1256 1220
Medium High 1336 1302 1269 1233 1198 1163 1124 1083
Medium 1118 1088 1052 1016 973 945 885 841
Medium Low 994 957 926 880 839 786 734 686
Low 811 770 725 673 625 572 521 467
080C16
High 1784 1746 1704 1660 1607 1556 1504 1466
Medium High 1444 1405 1354 1304 1252 1210 1157 1114
Medium 1253 1211 1157 1111 1064 1015 969 908
Medium Low 1083 1033 979 924 872 816 755 693
Low 902 849 787 724 659 593 538 475
080C20
High 2200 2162 2110 2061 2021 1981 1931 1970
Medium High 1980 1939 1892 1846 1804 1758 1701 1652
Medium 1734 1687 1645 1592 1547 1504 1456 1408
Medium Low 1597 1547 1504 1457 1410 1357 1310 1256
Low 1413 1362 1304 1247 1195 1148 1095 1046
100B12
High 1360 1321 1288 1259 1223 1182 1146 1105
Medium High 1197 1154 1127 1085 1046 1005 957 912
Medium 1016 981 945 899 859 805 761 710
Medium Low 916 878 839 794 743 691 643 595
Low 781 741 696 643 594 535 482 433
Continued on next Page.
ELECTRONIC AIR
CLEANER TERMINAL
HUMIDIFIER TERMINAL
DIAGNOSTIC ERROR CODE
RETRIEVAL BUTTON
BLOWER OFF DELAY JUMPER
CONTINUOUS FAN SPEED
JUMPER
