CALIBRATION CHARTS
Notes:
1. Minimum and maximum airow limits are dependent on the specic DDC controller supplied. Contact the control vendor to obtain the
minimum and maximum differential pressure limits (inches w.g.) of the transducer utilized with the DDC controller.
2. Maximum CFM is limited to value shown in General Selection Data.
3. FlowStar™ differential pressure tubing connections: High side indicated by red tubing; Low side indicated by black tubing.
4. Electric heat will not operate below 0.03” w.g. differential pressure
UNIT
SIZE
400 SERIES
(PNEUMATIC)
STANDARD CON-
TROLLER
7000 SERIES
ANALOG
ELECTRONIC
DDC CONSIGNMENT CONTROLS
(See Notes Below)
MIN. MAX. MIN. MAX.
MIN. MAX.
Min. transducer differential
pressure (in. w.g.)
Max. transducer differential
pressure (in. w.g.)
0.015 0.03 0.05 1.0 ≥1.5
4 43 250 35 250 30 43 55 250 250
5 68 350 50 350 48 65 88 350 350
6 75 490 60 550 53 75 97 435 530
8 145 960 115 1000 105 145 190 840 1000
10 235 1545 185 1600 165 235 305 1355 1600
12 340 2250 285 2300 240 340 440 1975 2300
14 475 3100 390 3100 335 475 615 2750 3100
16 625 4100 520 4100 440 625 805 3595 4100
19 1180 6500 1025 6500 845 1180 1510 6375 6500
22 1730 8000 1450 8000 1260 1730 2200 8000 8000


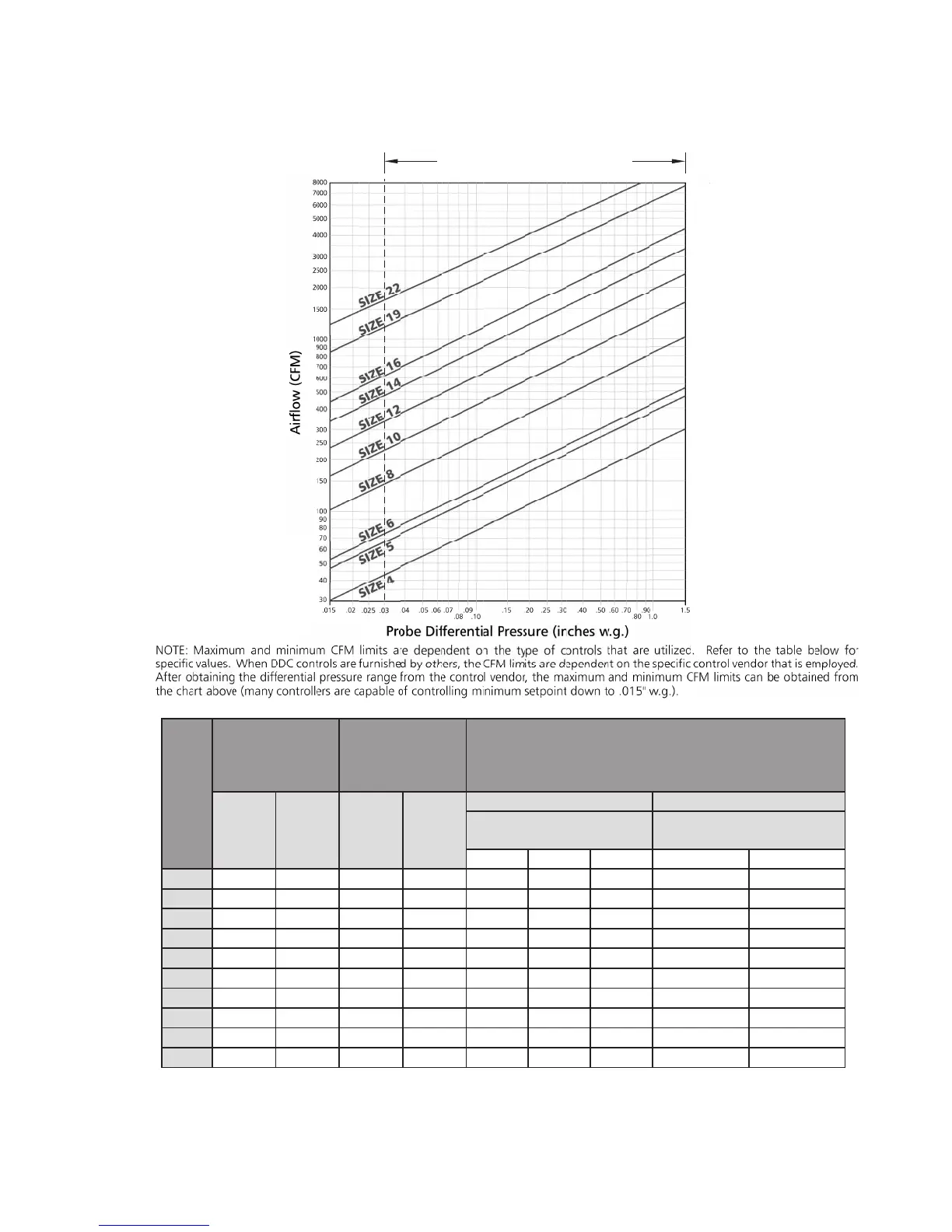

Flow Star Calibration Chart

Model TSS
FlowStar Calibration Chart
(For dead-end differential pressure transducers)
Model TSS
