NEMA Type 1 IntelliPass/IntelliDisconnect Drive

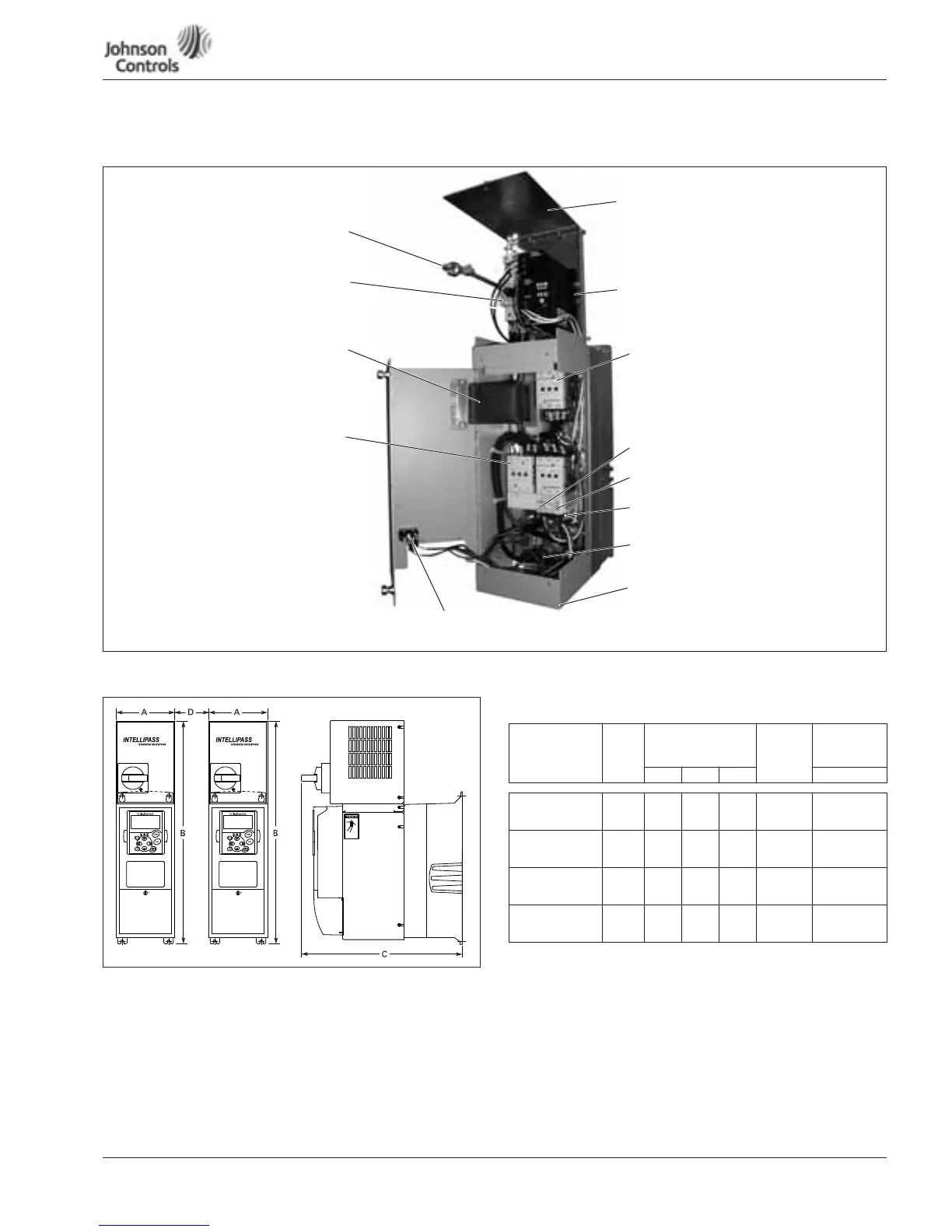

Figure 4: Identification of NEMA Type 1 Components
Figure 5: VSD Series IntelliPass/IntelliDisconnect Drive Dimensions
Table 2: VSD Series NEMA Type 1 IntelliPass/IntelliDisconnect Drive
Dimensions
If mounting two or more IntelliPass Drives next to each other, make sure to use the
proper spacing between the drives for hinged door operation.
Optional 3rd Contactor S1 Switch *
(provided for drive isolation)
Circuit Breaker
Extension Bar
24V DC Power Supply *
Ribbon
Cable Hinge
Optional 3rd Input Contactor *
Output & Bypass
Contactor*
Contactor Overload *
Manual/Auto Reset *
24V DC Motor Overload
Terminal Block *
Circuit Breaker Endplate
Circuit Breaker
Ground Studs
Drive Enclosure Endplate
(located at bottom)
* IntelliPass only.
Drive
Horsepower (VT)
Frame
Size
Approximate
Dimensions in
Inches (mm)
Approx.
Weight
in lbs. (kg)
Distance
Between
Drives in
Inches (mm)
ABC D
208V, 1 – 3 hp
230V, 1 – 3 hp
480V, 1 – 7-1/2 hp
FR4 5.04
(128)
18.25
(464)
13.24
(336)
21 (9.5) 5.3 (134.6)
208V, 5 – 7-1/2 hp
230V, 5 – 10 hp
480V, 10 – 20 hp
FR5 5.50
(140)
23.25
(591)
13.24
(336)
35 (15.9) 5.7 (144.8)
208V, 10 – 20 hp
230V, 15 and 20 hp
480V, 25 – 40 hp
FR6 7.50
(191)
29.38
(746)
15.25
(387)
67 (30.4) 7.5 (190.5)
208V, 25 and 30 hp
230V, 25 and 30 hp
480V, 50 – 75 hp
FR7 9.10
(231)
37.53
(953)
15.25
(387)
108 (49.0) 9.0 (228.6)
