Enclosed NEMA Type 12/3R

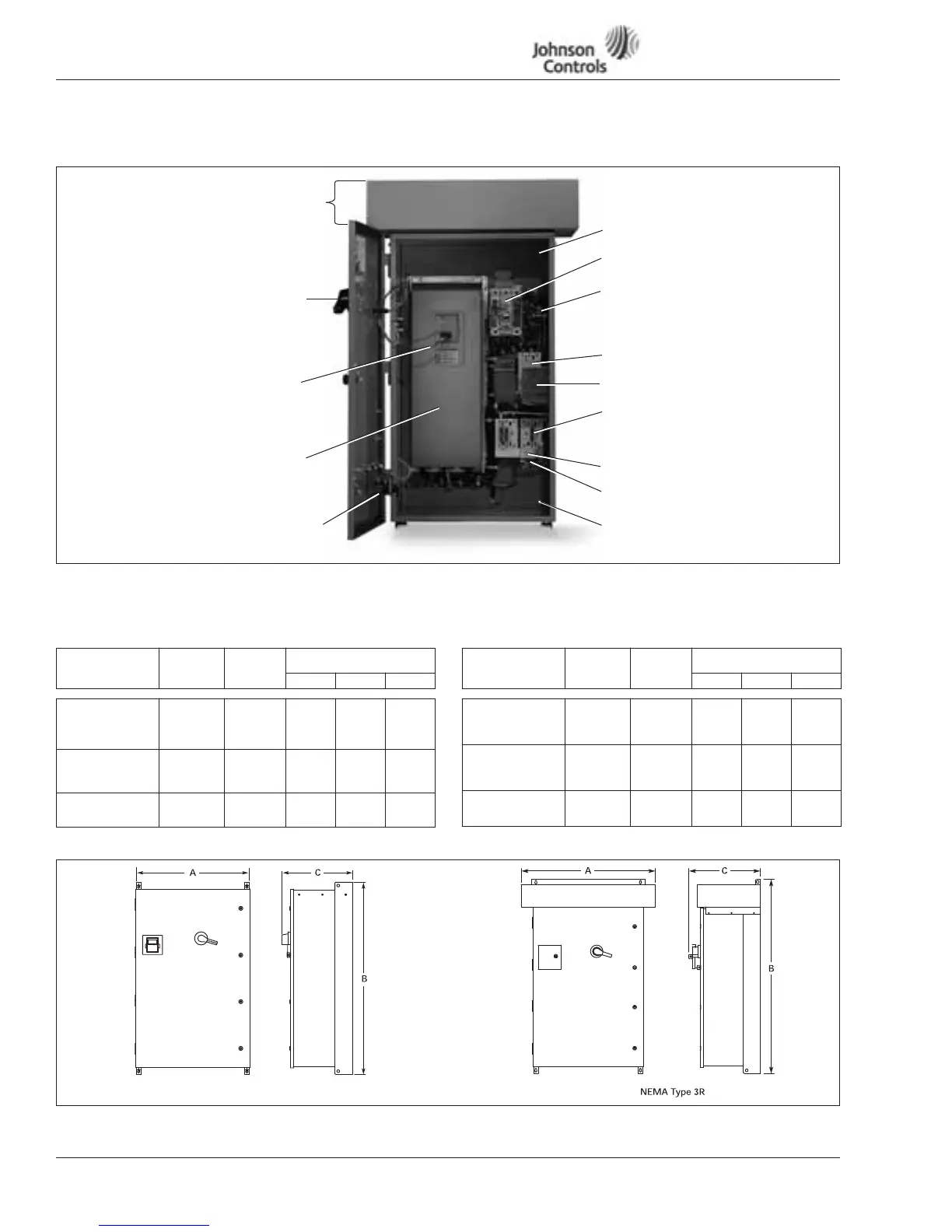

Figure 7: Identification of NEMA Type 12 and NEMA Type 3R Components
Note: You will need to consult the electrical schematic supplied with the drive and the appropriate wiring diagram in Appendix D.
Table 4: VSD Series NEMA Type 12 Enclosed IntelliPass Drive
Dimensions

Floor Stands available on Box C only and can be purchased and shipped separately
as kit.
Table 5: VSD Series NEMA Type 3R Enclosed IntelliPass Drive
Dimensions

Floor Stands available on Box C only and can be purchased and shipped separately
as kit.
Figure 8: VSD Series Enclosed Drive Dimensions
24V DC Power Supply
Optional 3rd Input Contactor
Space Heater (not on
electrical schematic)
Output & Bypass Contactor
Circuit Breaker
50 hp NEMA Type 3R
480V AC Variable
Frequency Drive
(behind drive cover)
Optional 3rd Contactor S1 Switch
(provided for drive isolation)
Keypad Cable
Circuit Breaker
Handle
Power Ground Stud
Contactor Overload
24V DC Motor Overload
Terminal Block
Motor Ground Stud
Optional NEMA Type 3R Hood
(Hood not present on
NEMA Type 12 drive)
Drive
Horsepower (VT)
Frame
Size
Enclosure
Box
Approximate Dimensions in
Inches (mm)
ABC
208V, 1 – 15 hp
230V, 1 – 15 hp
480V, 1 – 30 hp
575V, 3 – 30 hp
FR4 – FR6
FR4 – FR6
FR4 – FR6
FR6
A 16.92
(429.8)
29.00
(736.6)
18.60
(472.4)
208V, 20 – 30 hp
230V, 20 – 30 hp
480V, 40 – 75 hp
575V, 40 – 50 hp
FR6 – FR7 B 20.92
(531.3)
40.00
(1016.0)
19.10
(485.1)
208V, 40 – 60 hp
230V, 40 – 60 hp
480V, 100 – 150 hp
FR8 C 30.92
(785.3)
52.00
(1320.8)
19.10
(485.1)
Drive
Horsepower (VT)
Frame
Size
Enclosure
Box
Approximate Dimensions in
Inches (mm)
ABC
208V, 1 – 15 hp
230V, 1 – 15 hp
480V, 1 – 30 hp
575V, 3 – 30 hp
FR4 – FR6 A 21.05
(534.7)
33.00
(838.2)
19.57
(497.0)
208V, 20 – 30 hp
230V, 20 – 30 hp
480V, 40 – 75 hp
575V, 40 – 50 hp
FR6 – FR7 B 26.31
(668.3)
46.09
(1170.7)
20.07
(509.9)
208V, 40 – 60 hp
230V, 40 – 60 hp
480V, 100 – 150 hp
FR8 C 37.73
(958.3)
58.09
(1475.5)
20.08
(510.0)
NEMA Type 12
