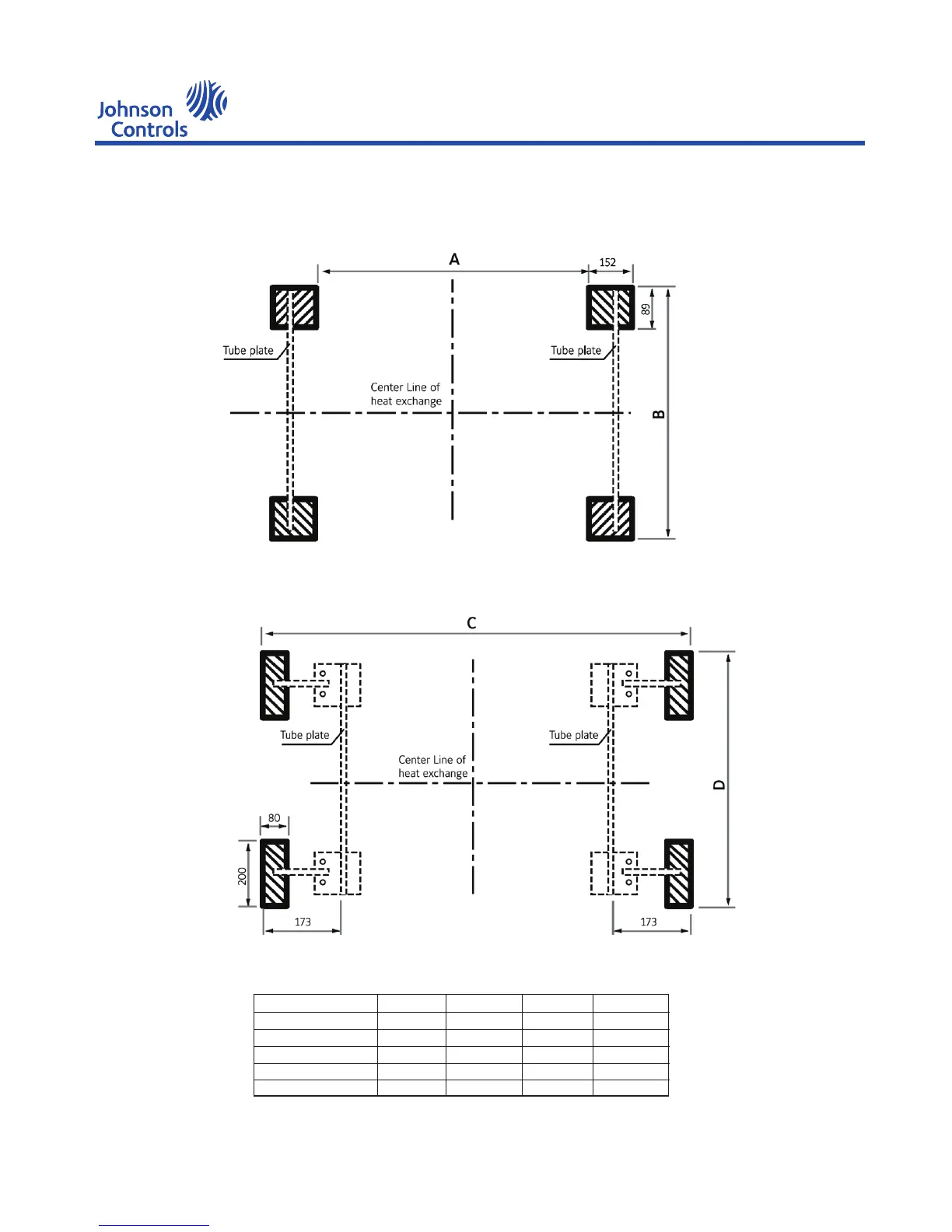

10.5 Foundation Diagram
Rubber Isolator Pad Layout
Spring Isolator Layout
Model
YEWS100
YEWS130
YEWS170
YEWS200
YEWS215
A(mm)
1822
2427
2427
2427
3494
B(mm)
1280
1280
1350
1430
1620
C(mm)
2332
2937
2937
2937
4004
D(mm)
1368
1368
1438
1518
1708
YEWS-E Water Cooling Screw Chiller/Heat Pump
