Johnson Controls YORK YLUA0078Z Series - Clearances; FIGURE 17 - Unit Clearances - All Models

JOHNSON CONTROLS
95
SECTION 5: TECHNICAL DATA
FORM 150.73-NM1
ISSUE DATE: 07/03/2024
55
Clearances
NOTES:
1. No obstructions allowed above the unit.
2. Only one adjacent wall may be higher than the unit.
3. Adjacent units should be 10 ft (3 m) apart.
LD13243

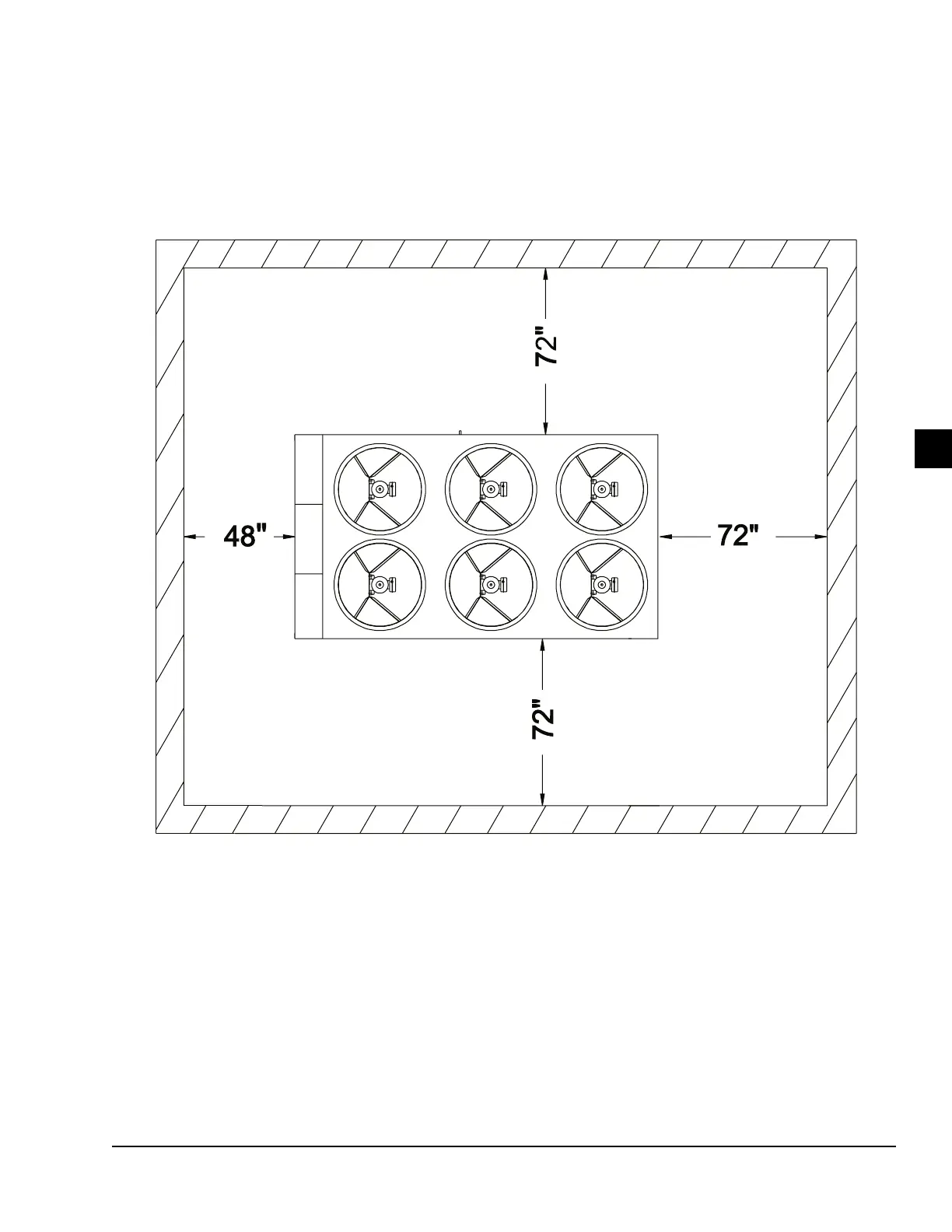

FIGURE 17 - UNIT CLEARANCES – ALL MODELS
(1.3 m)
(2 m)
(2 m)
(2 m)
