GENERAL INFORMATION
1-3
preceding section) and special PCTune
™
software. All
adjustments are made electronically using the software
(no manual adjustments are required). Alignment is
described in Section 6.

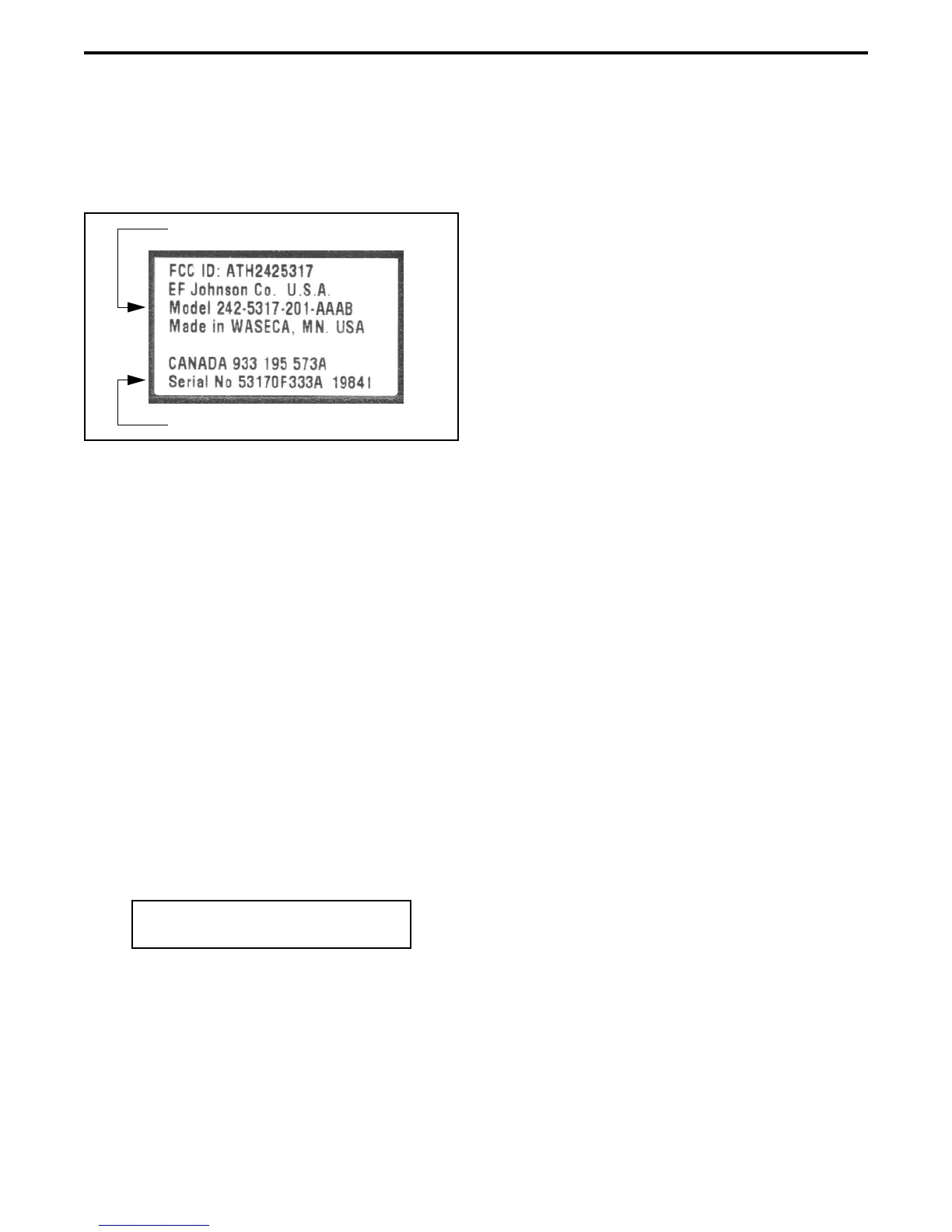

Figure 1-1 Identification Label Example
1.3 PRODUCT WARRANTY
The warranty statement for this transceiver is
available from your product supplier or from the
Warranty Department, E.F. Johnson Company, 1440
Corporate Drive, Irving, TX 75038-2401. This infor-
mation may also be requested from the Warranty
Department by phone as described in Section 1.7. The
Warranty Department may also be contacted for
Warranty Service Reports, claim forms, or any other
questions concerning warranties or warranty service.
1.4 MODEL NUMBER BREAKDOWN
The radio model number is located on the radio
identification label attached to the bottom cover (see
Figure 1-1). The following is a breakdown of this
number:
M (Model)
3 - 5300 Series
4 - 53SL Series
5 - Ascend Series
F (Frequency Band)
1 - VHF (136-174 MHz)
2 - VHF HB (146-174 MHz)
3 - UHF (403-470 MHz)
4 - UHF (450-512 MHz) Not available
6 - UHF (380-470 MHz)
7 - 762-806 and 806-870 MHz
8 - 800-870 MHz
T (Type)
0 - Motorcycle
3 - Medium Power (40W UHF), Dash Mount
4 - Medium Power (40W UHF,) Remote Mount
5 - High Power (100W VHF), Dash Mount
6 - High Power (100W VHF), Remote Mount
7 - Standard Power, Dash Mount
8 - Standard Power, Remote Mount
9 - Standard Power, Dash Mount Public Works
S (Signaling, Primary)
2 - P25 Conv. Analog/Digital
4 - Special
8 - Analog Mode Only
E (Encryption Type)
0 - No encryption
5 - DES/DES-OFB (SEM*)
6 - DES/DES-XL/DES-OFB (UCM only*)
7 - DES/DES-OFB/AES (SEM*)
8 - DES/DES-XL/DES-OFB/AES (UCM only*)
(* See Sections 1.11 and 1.12.2 for more information.)
C (Configuration)
1 - Six button standard control unit
4 - Dual Controls (Front + Remote)
5 - Handheld Control Unit (HHC)
6 - Dual Remote (Two Rem Ctrl Units)
7 - Transit Bus System
8 - Motorcycle (rotary on-off)
9 - Modified logic, B+ on J5, -280 cable
O (Options
A - Std cable, no installed options (-230)
D - + Data/Accessory cable (-282)
S - + Siren cable (-231)
U - + UI cable (-245)
R - + Remote/Accessory cable (-249)
T - + Dual remote cable (-283)
C - + 2nd control hd cable (-251)
A (Analog or Additional Signaling)
A - No additional signaling
B - P25 and SN/SZ trunking analog/digital
C - SMARTNET trunking
E - SMARTNET/SmartZone trunking
Model Number
Serial Number
242-5MFT-SEC-OADE
