4.4 CRANK REPLACEMENT

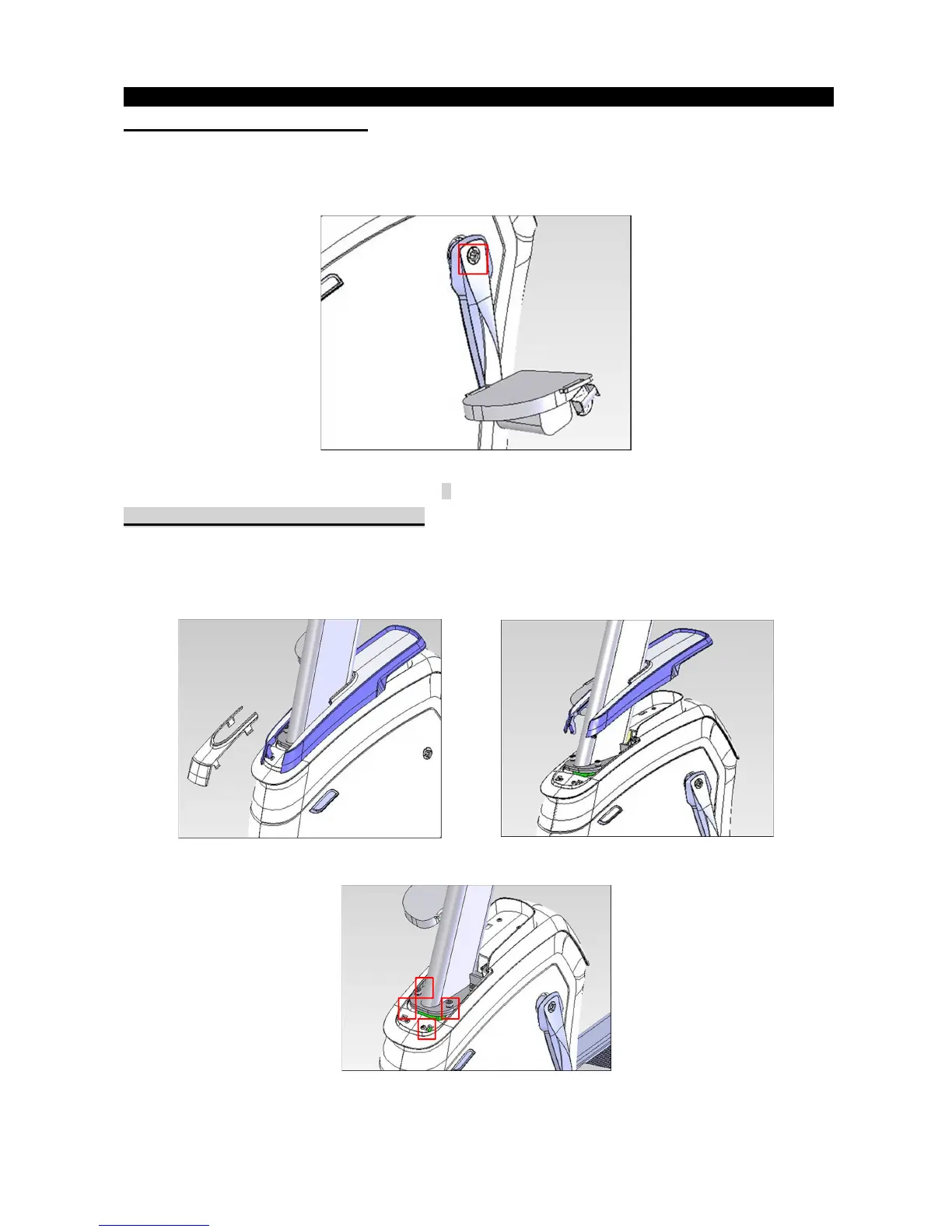

1) Loosen and remove the screw holding the crank to frame (Figure A).
2) Install a new crank.
4.5 SIDE COVERS REPLACEMENT
FIGURE A
1) Remove the two top covers by hand (Figure A and B)
2) Remove the mast by removing the four screws. (Figure C).
FIGURE A FIGURE B
FIGURE C
