4.6 MCB REPLACEMENT
1) Remove side cover (see section 4.5)
2) Remove the LCB by removing the 2 screws (Fig A).
3) Install a new LCB. (Fig B)
4) Reverse step 1

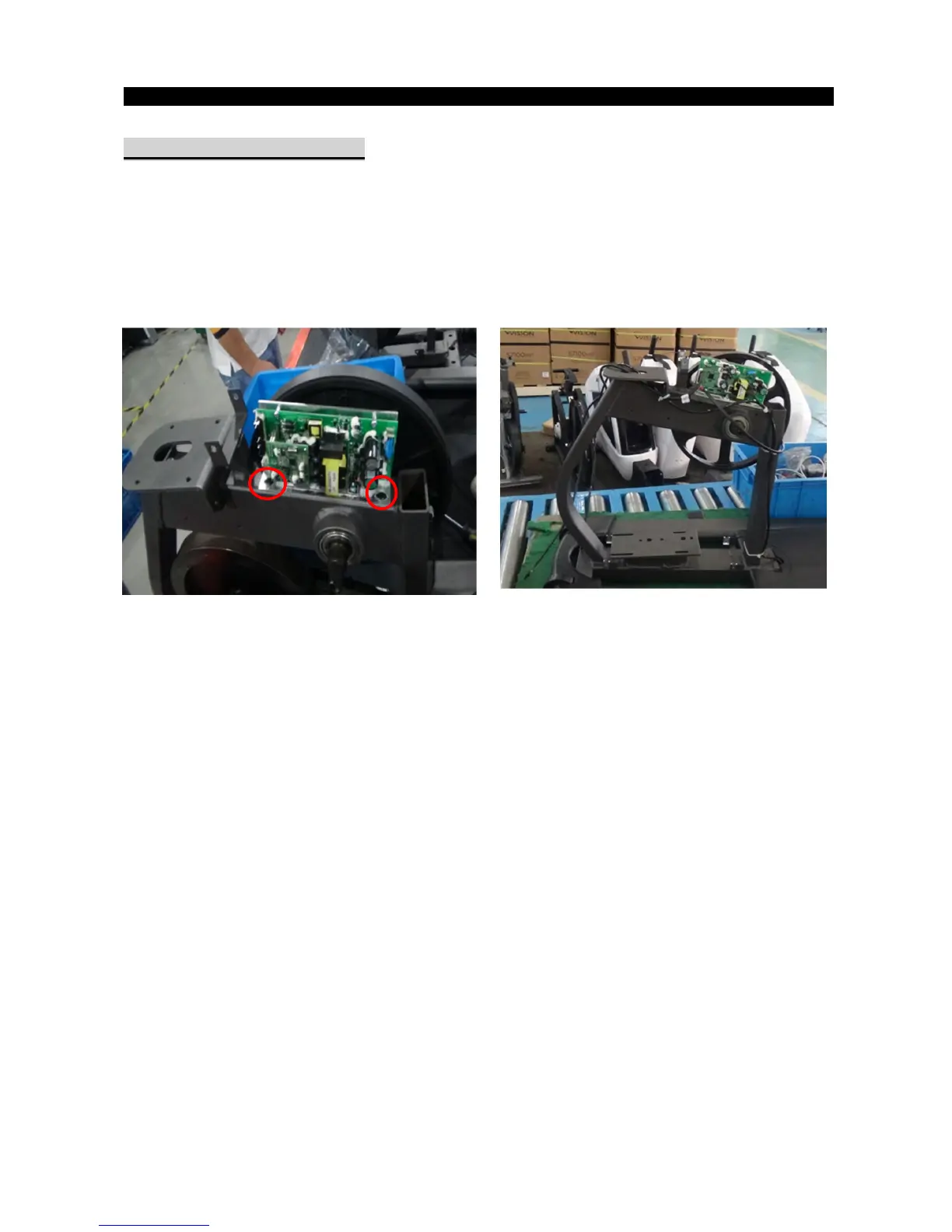

Fig A Fig B
Note: Wear an ESD strip when handling and installing the MCB.
