Johnson Matrix Retail R30 - Drive Belt Replacement

33
CHAPTER
4:
Part
Replacement
Guide

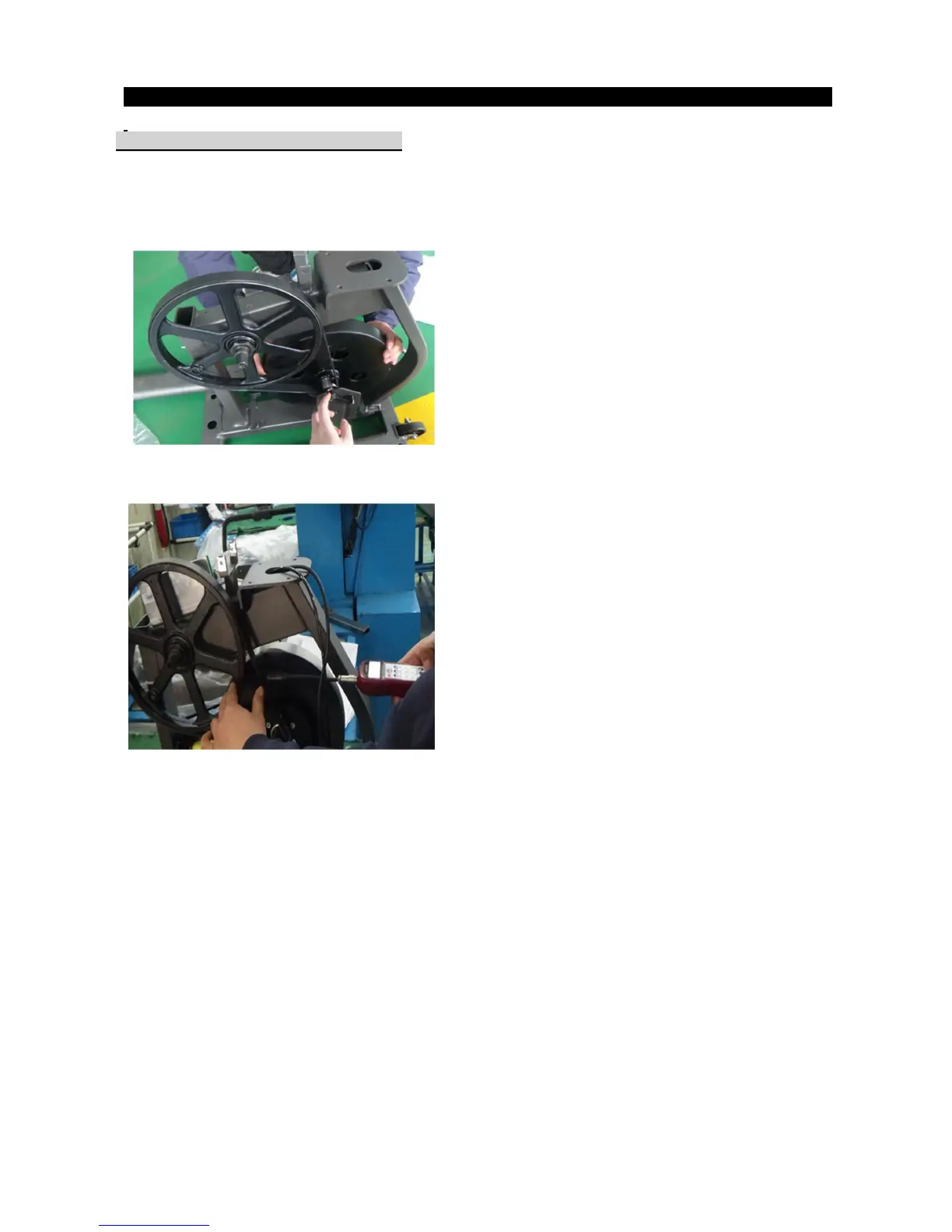

4.12. DRIVE BELT REPLACEMENT
1. REMOVE SIDE COVER (SEE SECTION 4.5)
2. Put the drive belt on the wheel (FIGURE-A)
FIGURE A
3. Measure belt tension that it should be 200HZ -220HZ (FIGURE-B)
FIGURE B
4. Reverse Step 1
