Johnson Matrix Retail R30 - Adjustment Bar Replacement

32
CHAPTER
4:
Part
Replacement
Guide
4.11 ADJUSTMENT BAR REPLACEMENT

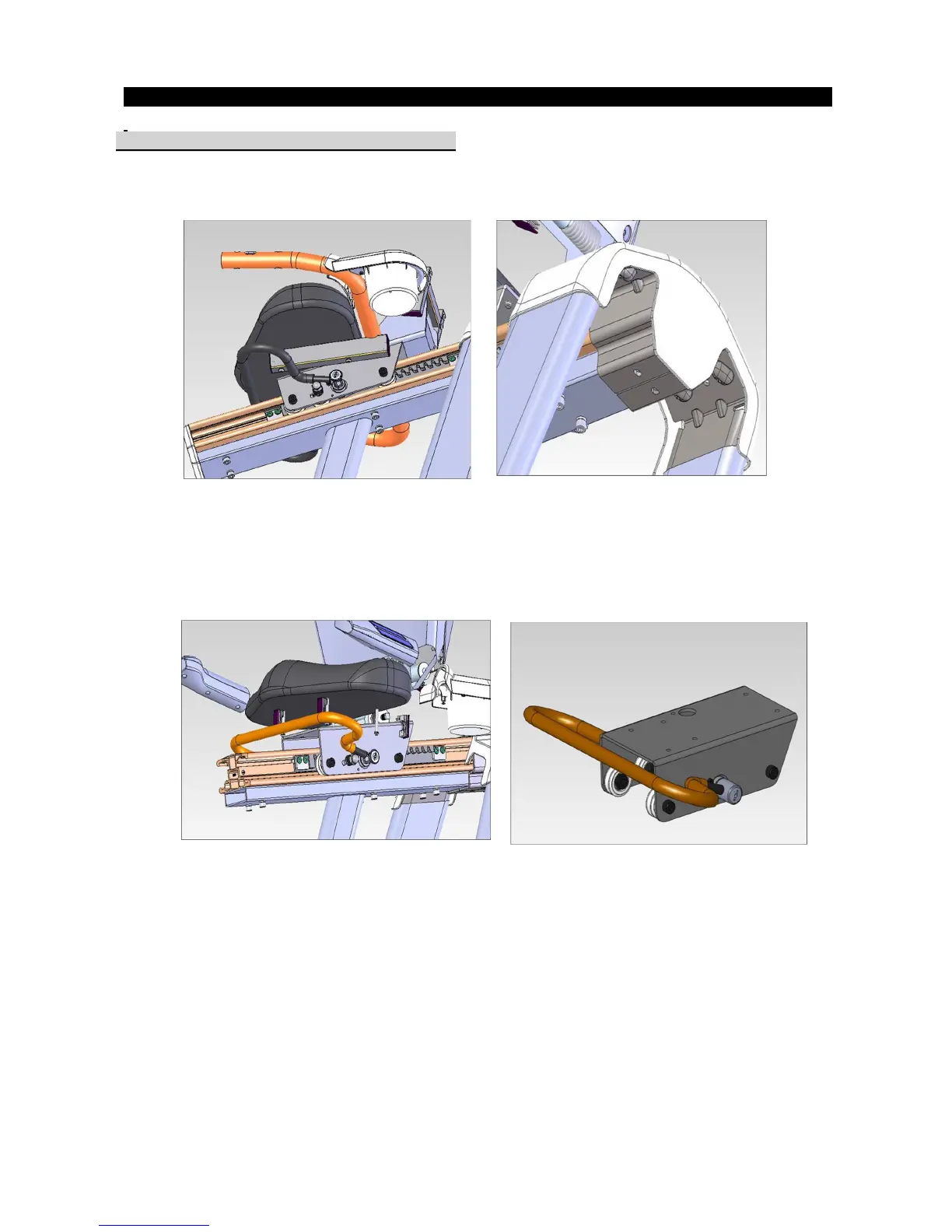

1) Remove the 2 screws to disassemble the front cover (Figure A) and or the back cover (Figure B).
FIGURE A FIGURE B
2) Remove the (front or rear) 2 screws corresponding to step one (Figure C and D).
3) Reverse the steps to install a new adjustment bar.
FIGURE C FIGURE D
