Johnson Matrix Retail R30 - Heart Rate Wire Replacement

30
CHAPTER
4:
Part
Replacement
Guide

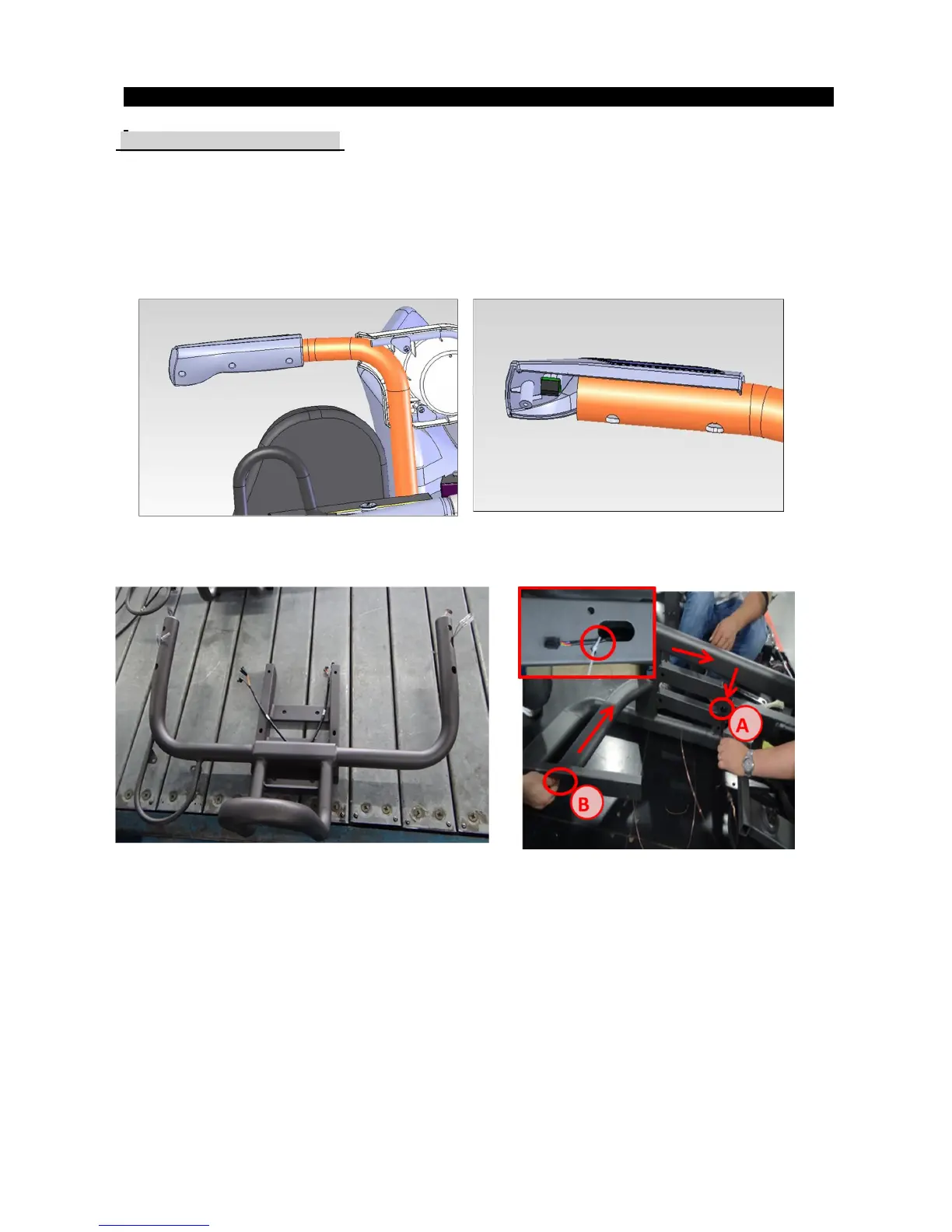

4.9 Heart rate replacement
1) Remove the 3 screws (Figure A & Figure B).
2) Gently pull out the heart rate wire (Figure B).
3) Reverse the steps to install a new heart rate wire.
4) Connect the heart rate wire to the console by following the path shown from A to B (FIGURE-D)
FIGURE A FIGURE B
FIGURE C FIGURE D
