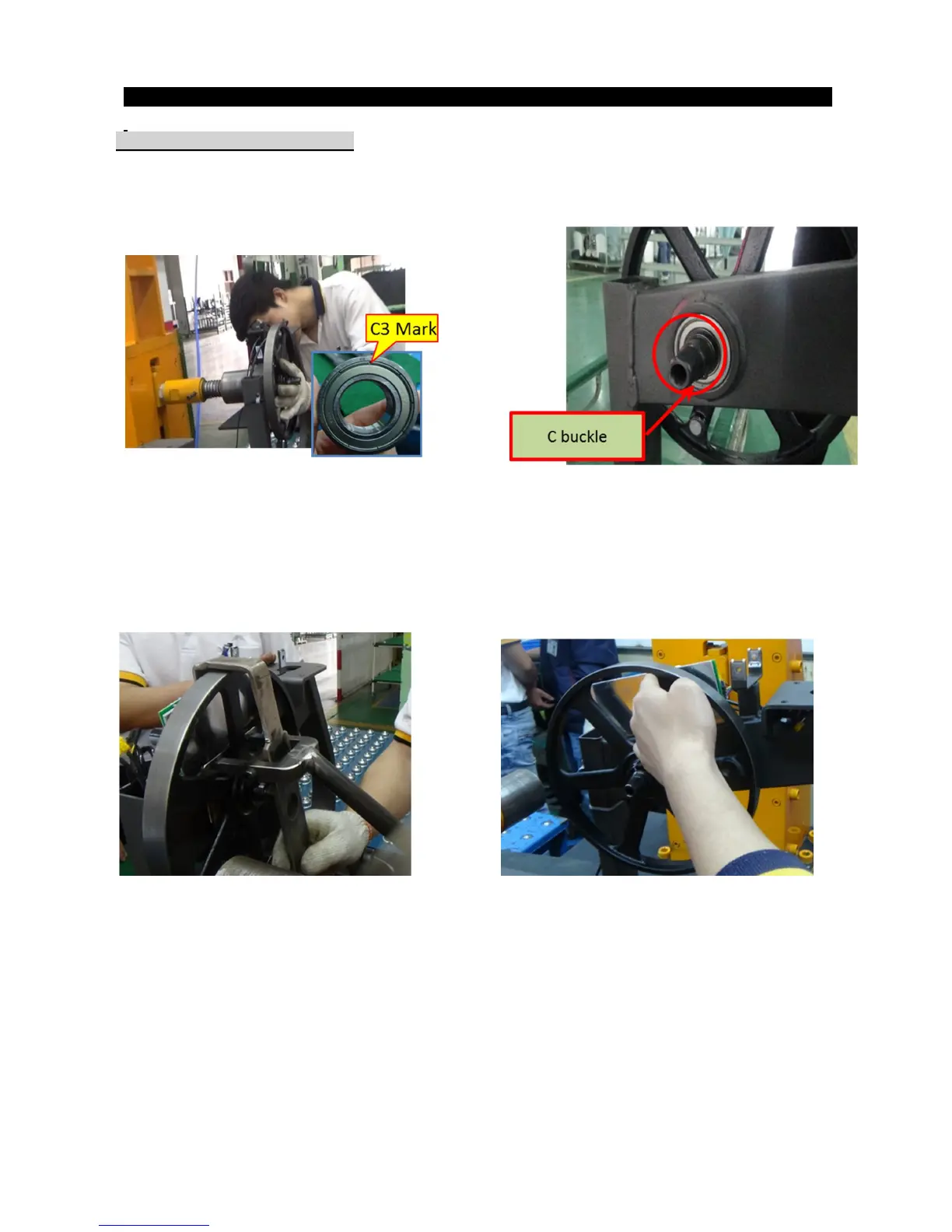

4.13 .DRIVE AXLE REPLACE
1. REMOVE SIDE COVER (SEE SECTION 4.5)
2. Insert the wheel with C3 Bearing (FIGURE-A)
FIGURE A FIGURE B
3. Add C buckle (FIGURE-B)
4. Press bearing by fixture (FIGURE-C)
Note: An alternative method is to position the old bearing over the new bearing, and then use a mallet to pound
against the old bearing until the new bearing is pressed in place. Be careful not to directly hit the new bearing.
5. Roll the wheel to see if smooth (FIGURE-D)
FIGURE C FIGURE D
