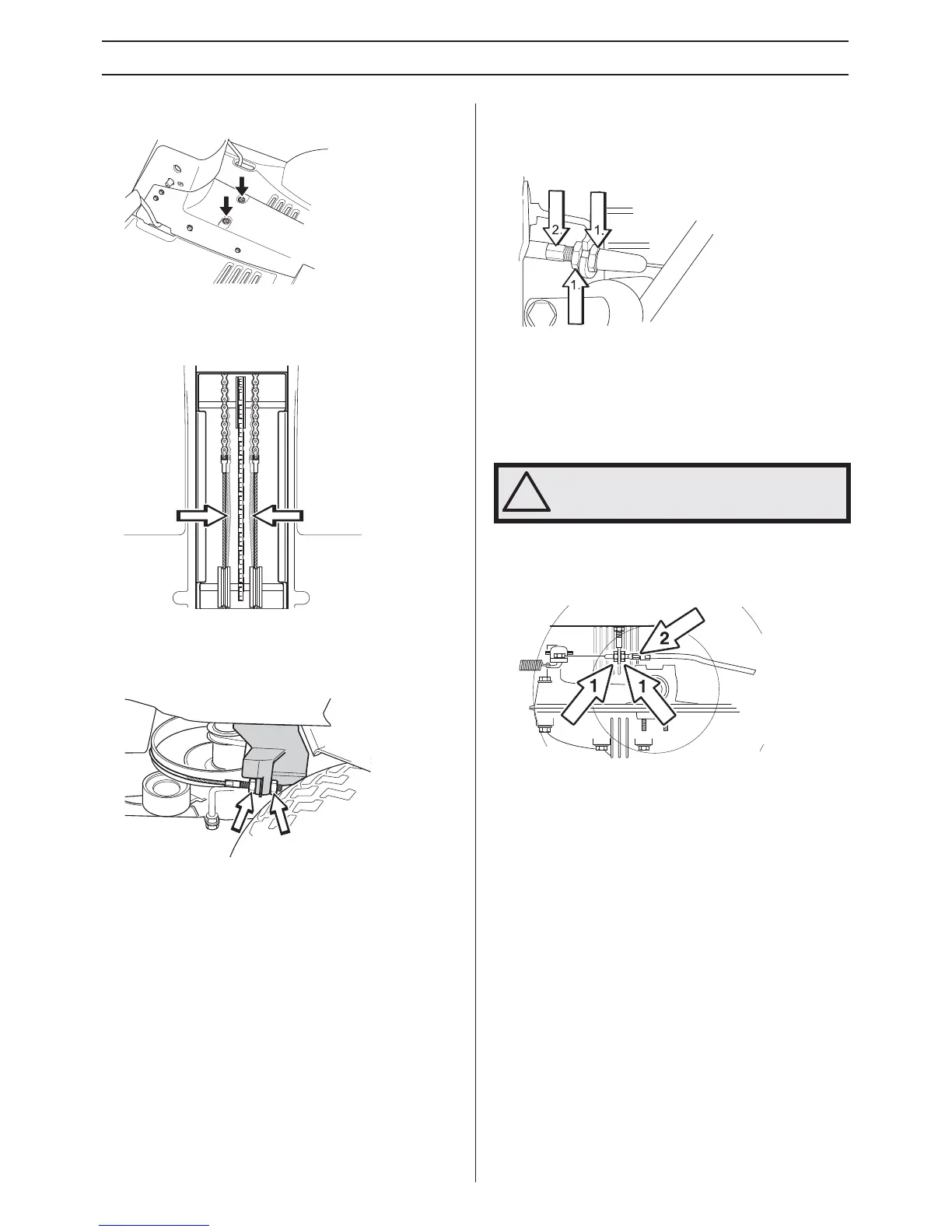

Maintenance
1 Remove the frame plate by loosening the screws (2) and
lift the frame plate by the rear edge.
2 Check the tension of the steering wires by pushing them
together (at the arro
ws). It should be possible to push
them together so that the distance between them is half as
much, without using unnecessary force.
3 If necessary, the wires can be adjusted by tightening the
adjuster n
uts on each side of the steering collar.
4 Do not over tighten the cables; they should only be drawn
in to
wards the steering collar.
Hold the cable, for example using an adjustable wrench,
so that it does not twist.
If the adjustment is only made on
one side, the middle position of the steering will be
affected.
Check the wire tension on completion of the adjustment as
per item 2.
Adjusting the parking brake
Check that the parking brake is adjusted correctly by placing
the machine on a slope with the front and rear axles
disengaged.
Apply and lock the parking brake.
When the machine does not stand still, the brake should be
adjusted according to the f
ollowing.
FR 2218FA 4X4
1 Remove the left-hand wing cover.
2 Loosen the locking nuts (1).
3 Tension the cable using the adjuster screw (2) until the
pla
y in the cable is taken up.
4 Tighten the locking nuts (1).
5 The brake should be checked again after adjustment
6 Assemble the left-hand wing cover.
FR 2216 FA
When the machine does not stand still, the parking brake
should be adjusted according to the following.
• Loosen the locking nuts (1).
• Tension the cable using the adjuster screw (2) until the
pla
y in the cable is taken up.
• Tighten the locking nuts (1) after adjustment.
• The parking brake should be checked again after the
adjustment has been made
.
Adjusting the throttle wire
The throttle cable may need to be adjusted, if the engine does
not respond as it should when accelerating, if it produces
black smoke or maximum revs are not reached.
!
WARNING! A poorly adjusted brake can
result in reduced braking ability.
