YDFLP-E-20&30&50-LP User’s Manual
7 File Number: S-PI-0033

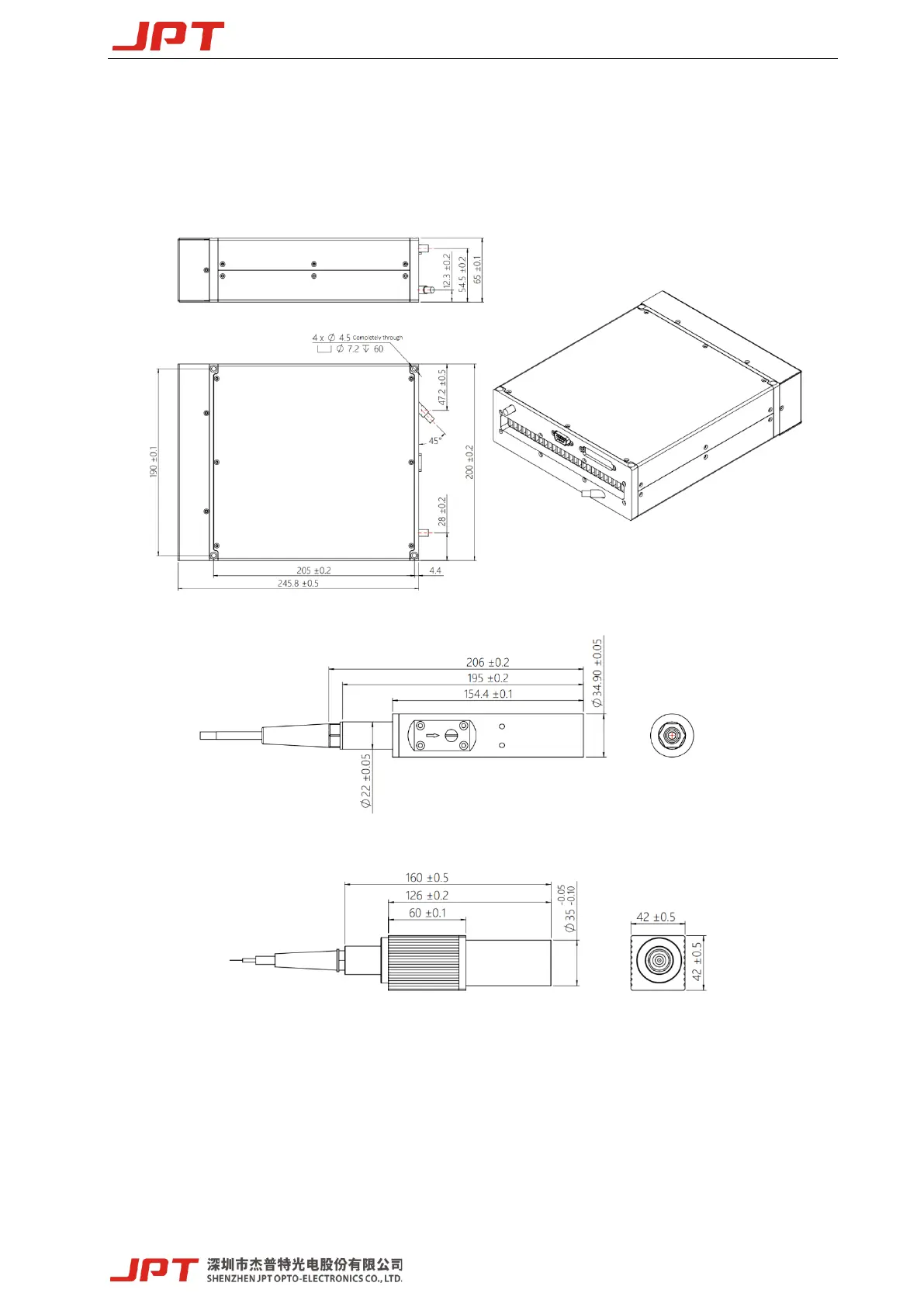

1.6 Installation Dimensions
1YDFLP-E-20&30-LP-S Laser dimensions
Figure 7 YDFLP-E-20&30-LP-S Laser module dimensions (Unitmm)
Figure 8 YDFLP-E-20-LP-S Standard isolated output head dimensions (Unitmm)
Figure 9 YDFLP-E-30-LP-S Standard isolated output head dimensions (Unitmm)
The output isolator head is only for reference. Please be subject to the actual product.
