JPT YDFLP-E-80&100-M7-M-R User Manual

YDFLP-E-80&100-M7-M-R User Manual
17
File Number: JG-MCYF-SM-0039

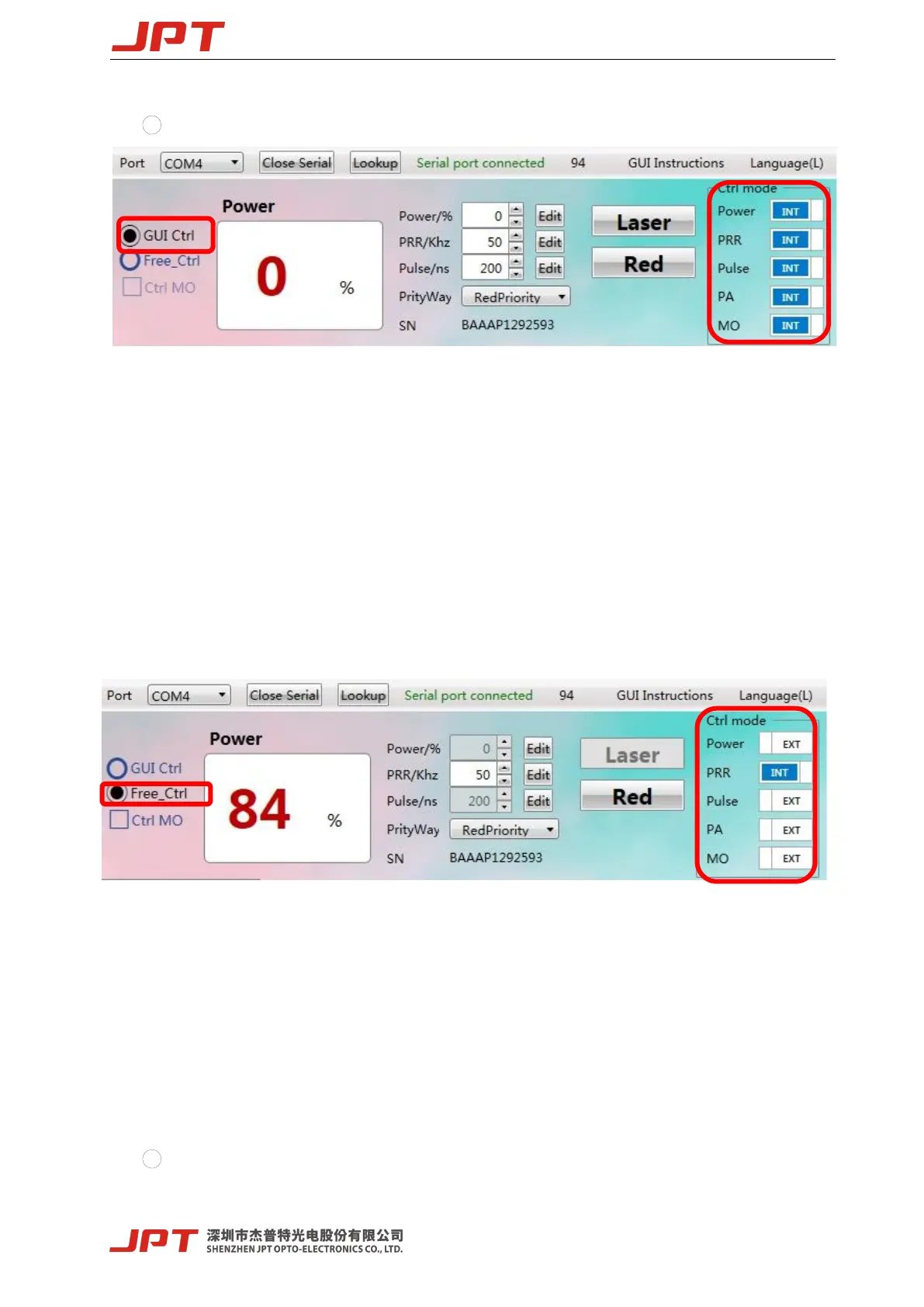

1 Choose the GUI control Mode
GUI Full Control mode(GUI Ctrl): When selecting the GUI full Control mode, all the
parameters of Internal/External Control mode (eg. power, frequency, pulse width, PA, MO) will
change to Internal Control mode. This mode will not be preserved after power off. It will change
to “Free Ctrl” mode after serial port closed, and all the parameters of Internal/External Control
mode will be changed to the external control mode setting. User can select this mode to
temporarily test the emission of laser.
Figure 17 Free Ctrl mode
Free Control Mode (Free Ctrl): When selecting free Control mode, user can choose
parameter control mode individually. In this mode, all the settings will be preserved after power
off. EG. User can select this mode to lock a specific frequency or output power individually
when don't want to control it by external signal.
2 Set parameters and emitting
Figure 16 GUI Full Ctrl mode
