[IV] Transmission Port Setting (TX Port)
For each sentence, set a communication port through which signals are transmitted to sensors.
Procedures 1. Open the Adjust Menu.
2. Press [5] key.
Press [3] key.
The TX Port Menu will appear.
3. Select the signal you want to set,
pressing the numeric keys [1] to [9].

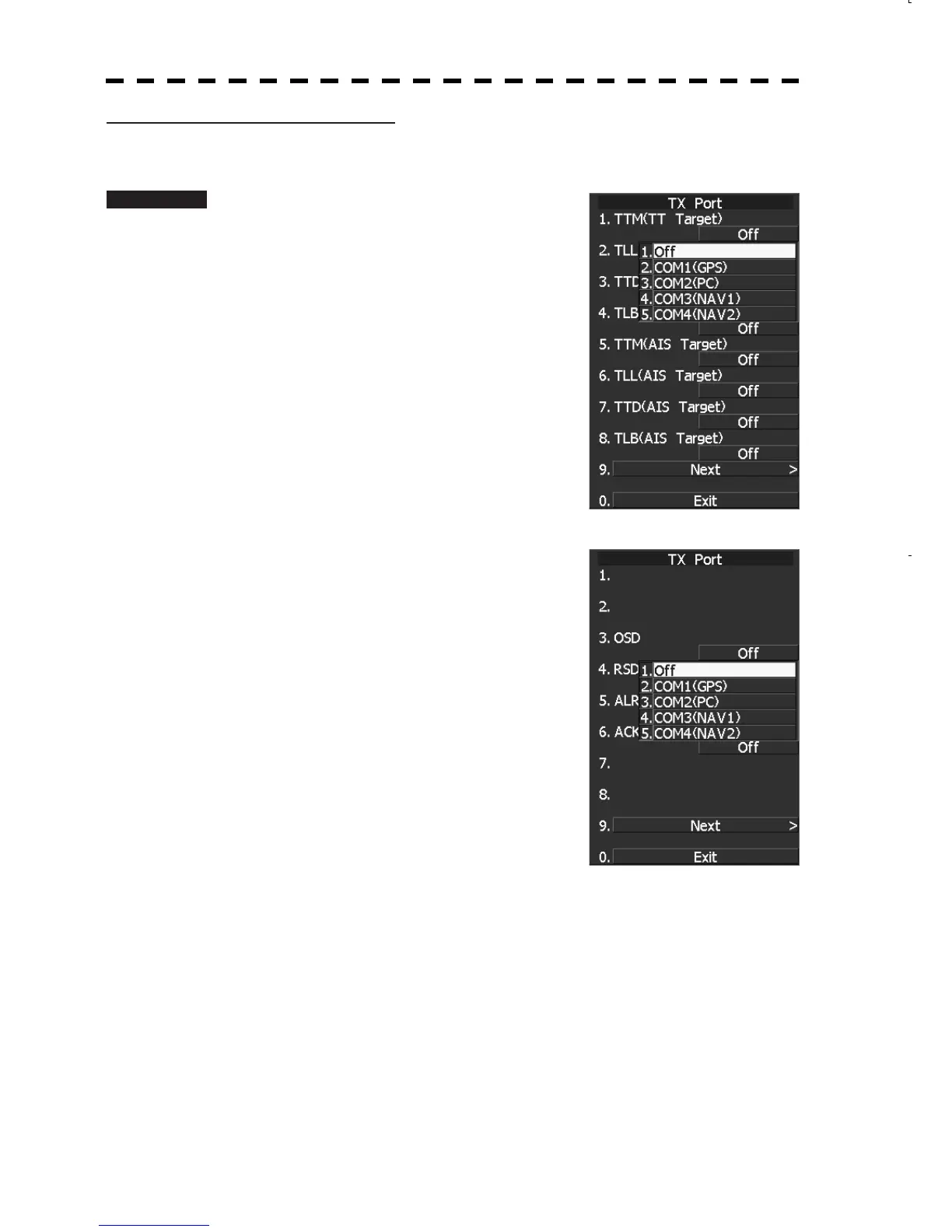

The Output Port Setting Menu for each signal will
appear.
Settable sentences
1. TTM(TT Target)
2. TLL(TT Target)
3. TTD(TT Target)
4. TLB(TT Target)
5 TTM(AIS Target)
6 TLL(AIS Target)
7 TTD(AIS Target)
8 TLB(AIS Target)
1.
2.
3. OSD
4. RSD
5. ALR
6. ACK
7.
8.
1. Remote Maintenance
2. NMEA0183 Output Format
3. NMEA0183 Talker
4. NMEA0183 TX Interval
5. APB
6. BOD
7. GGA
8. GLL
1. RMC
2. RMB
3. VTG
4. XTE
5. BWC
6. HDT
7. THS
To Next Page
