[III] Reception Sentence Setting (RX Sentence)
Set signal sentences to be received from sensors.
The system is factory-set for using all sentences.
To receive only specified sentences, select Unused for sentences which are not necessary.
Procedures 1. Open the Adjust Menu.
2. Press [5] key.
The COM Port Setting Menu will appear.
3. Press [2] key.

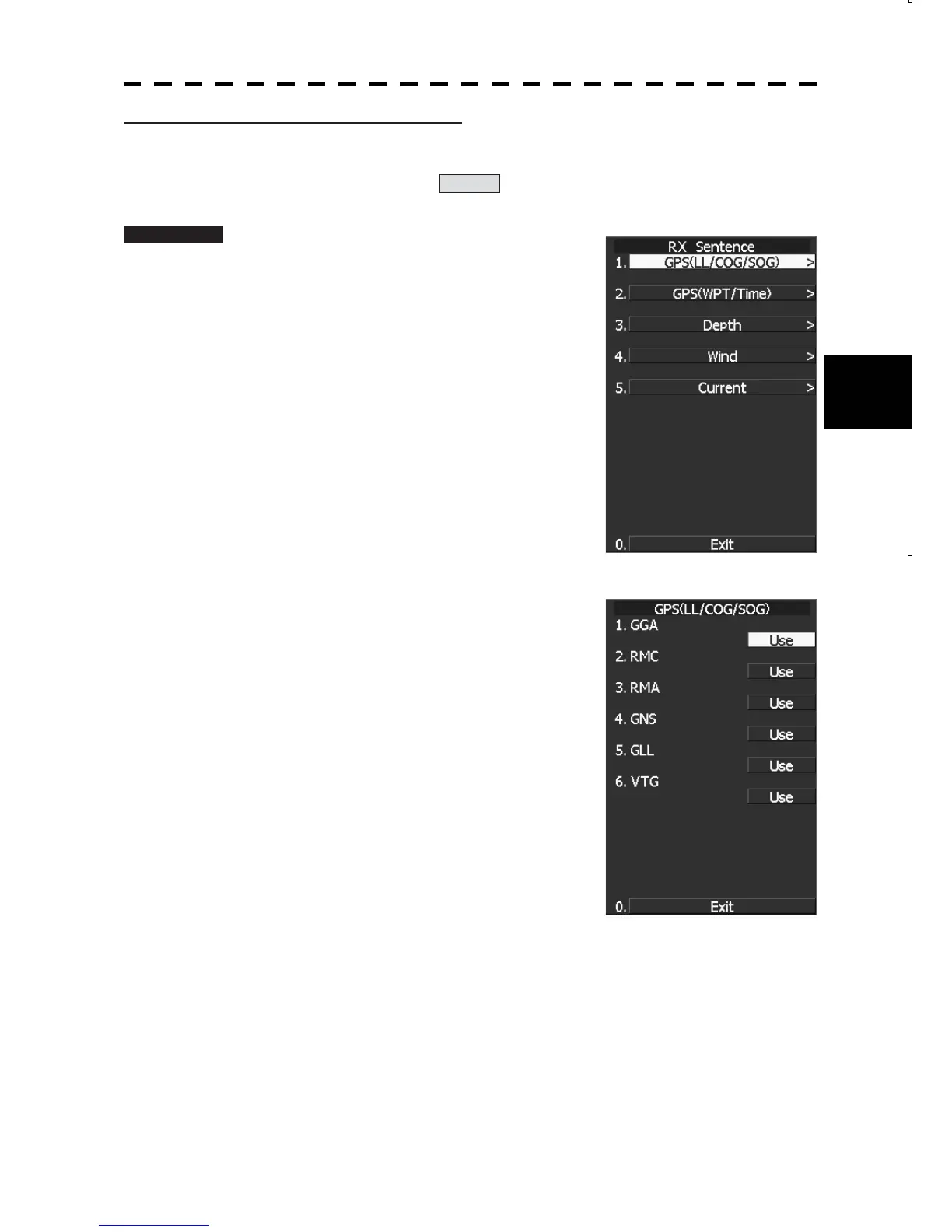

The RX Sentence Menu will appear.
4 Select the signal you want to set,
pressing the numeric keys [1] to [3].
The Setting Menu for each signal will appear.
Settable signal
1. GPS (LL/COG/SOG)
2. GPS (WPT)
3. Depth
4. Wind
5. Current
5 Select whether or not you want to use
sentence for the signal.
Types of sentences to be used
1. GPS (LL/COG/SOG):
GGA/RMC/RMA/GNS/GLL/VTG
2. GPS (WPT): RMB/BWC/BWR
3. Depth: DPT/DBK/DBT/DBS
4. Wind: MWV/MWD
5. Current: CUR
After having selected a signal, choose the number of the
sentence for which you want to set whether or not it is
used, pressing the numeric key.
As concerns current, set data set number and layer
number of CUR sentence.
Data Set Number:
0-9. Set the number of the sentence to be used
by Data Set Number. (Initial value 0)
Layer A:
0-999. Set the number of the sentence to be used with layer A by Layer Number.
(Initial value 3)
Layer B:
0-999. Set the number of the sentence to be used with layer B by Layer Number.
(Initial value 4)
Layer C:
0-999. Set the number of the sentence to be used with layer C by Layer Number.
(Initial value 5)
