3.3 INSTALLATION OF THE OPERATION
UNIT
1) Installation of the operation unit
The operation unit can be installed at any place as far as it is located
within 5 m
eters from the radar process
unit.
2) Connecting the operation unit to the radar process unit
The operation unit is connected to the ra
dar process unit with one cable. The cable is integrated into the

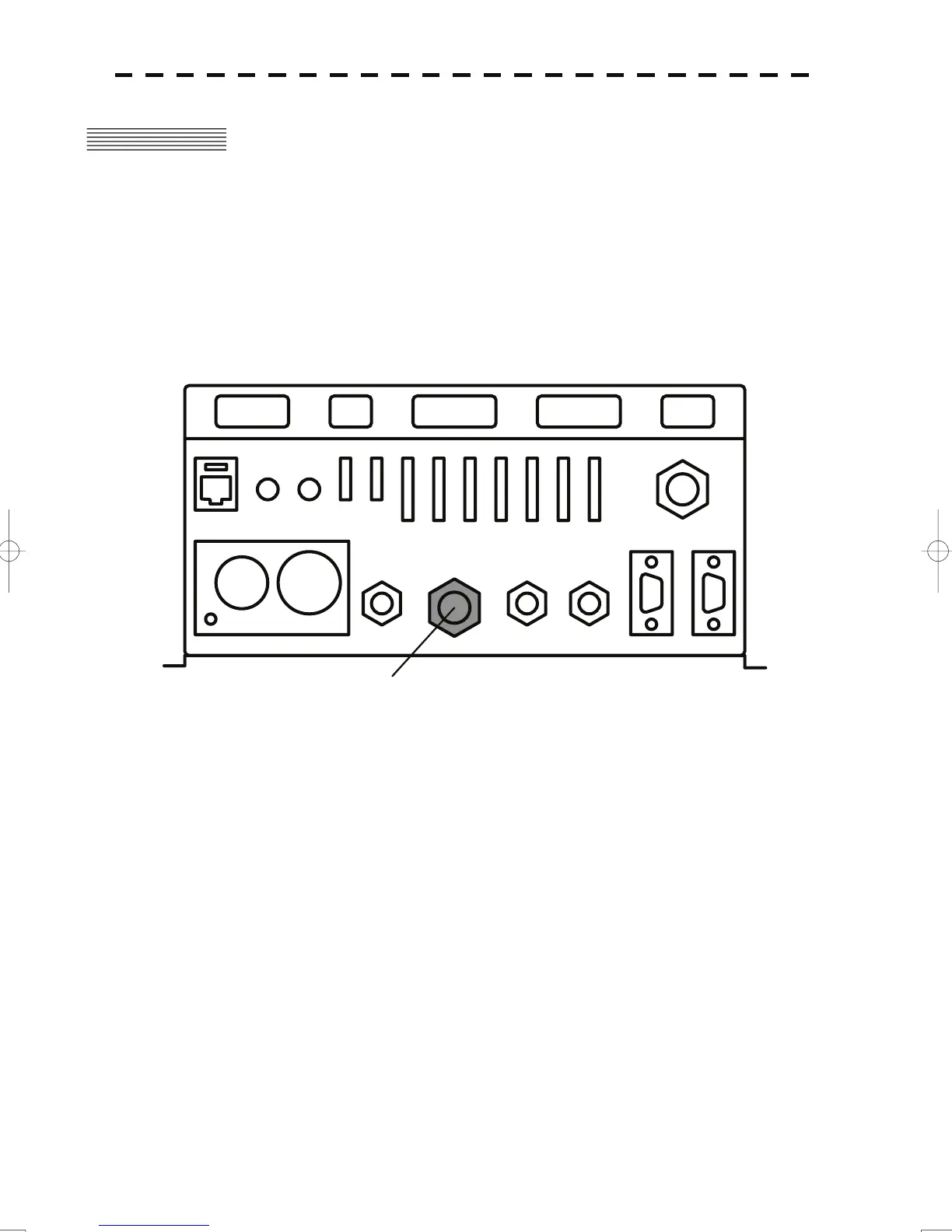

operation unit. Connect the cable extending from the operation unit to the connector for which "KEY
BOARD" is engraved at the rear of the radar process unit cabinet. Turn the plug attached to the connector
until it cannot be turned any further.
To the operation unit
F2 F3
POWER SCANNER
KEY BOARDGPS
GYRO
COMPASS
VIDEO
DC OUT
VIDEO NMEA
AUX
E
J2J1
J7
J6J5
J4
J3
J8
3-3
