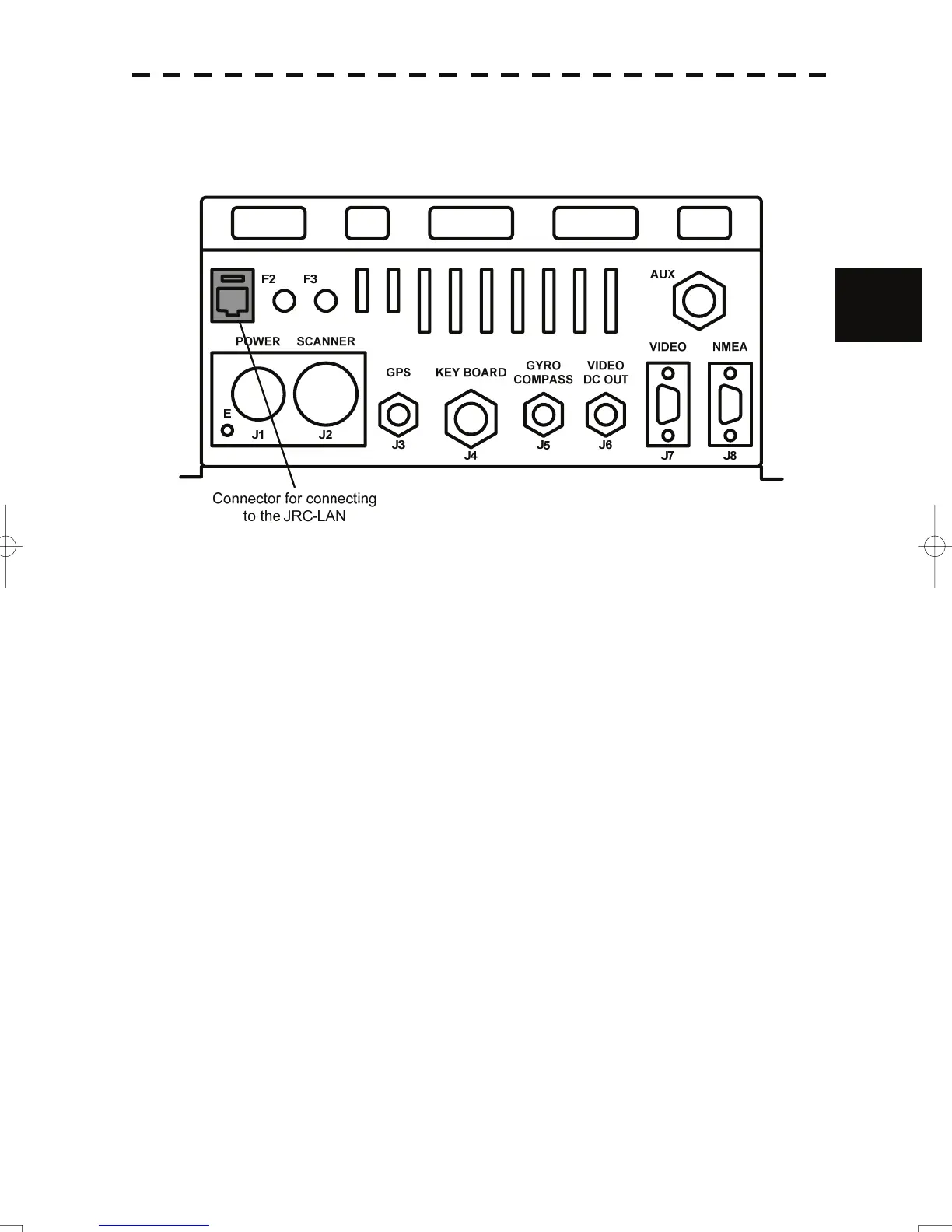

3.21.1 Connection to NDC-1417 RADAR PROCESSOR UNIT

Connect one end of the LAN cable to th

e LAN connector at the rear of the radar process unit cabinet. Into

the LAN cable connector until it clicks.
