3.15 PLOTTER CIRCUIT (NDB-34A)
(OPTION)
Install the plotter circuit in the radar process unit according to the procedures below:

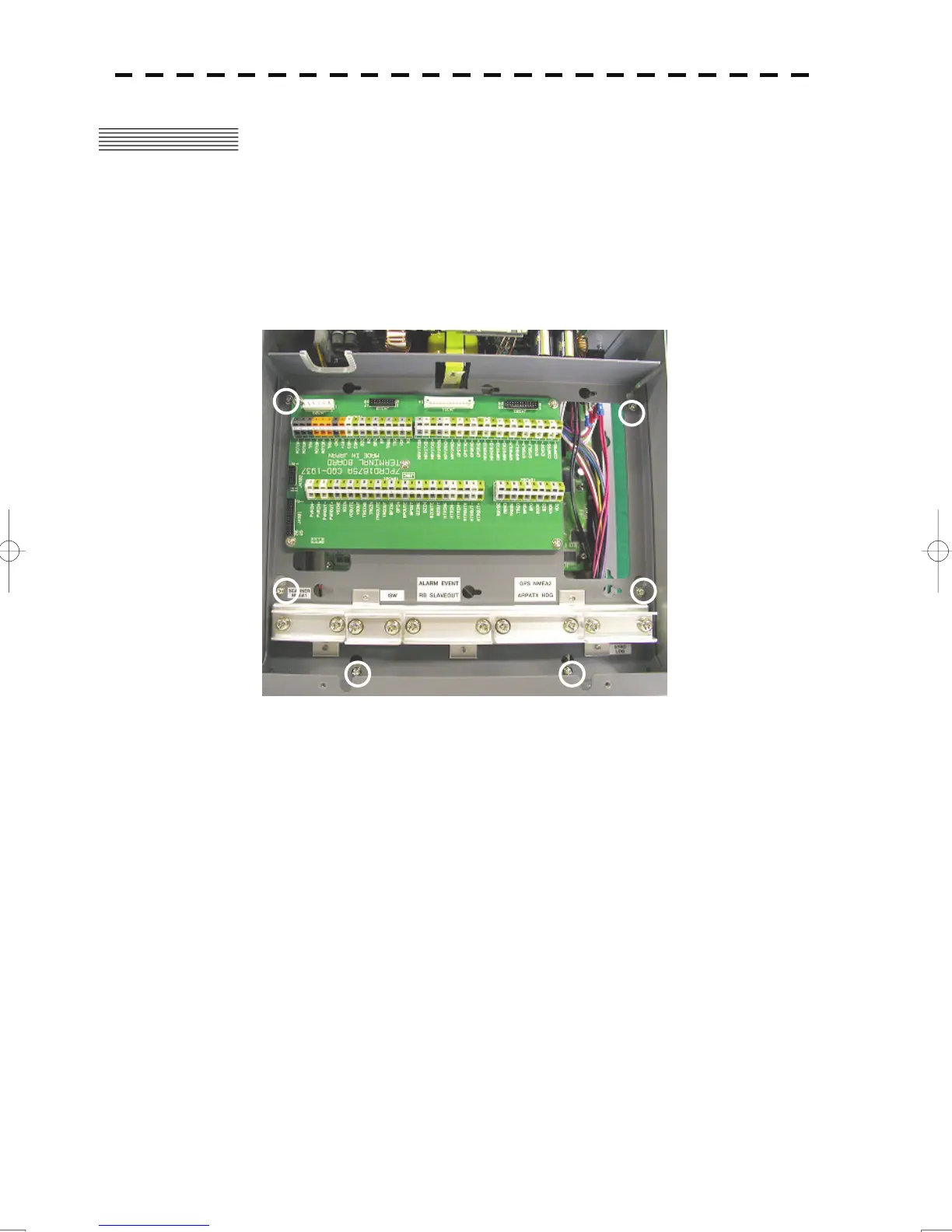

(1) Remove the radar process unit cabinet cover, loosen the screws that mount the terminal board to the
cabinet, a
n
d remove the terminal board from the radar process unit cabinet.
(2) Connect the P4901 side of the cable (H-7ZCRD0934) attached to the plotter circuit to the plotter circuit's
connector J4
901.
(3) Connect the P4407 side of the cable (H-7ZCRD0934) attached to
the plotter circuit to the radar process
unit's radar processing board J4407.
