• Rotation signal input (already pulled up at 470 ohm)
Connect the rotation signal line to the following terminals located on the terminal board:
TB4310-BP
TB4310-BPE
Since the radar JMA-5300MK2 does not detect the rotation direction, only one type of encoder input,
BP
, is neces
sary.
Connect the rotation reference signal line to the following t
erminals located on the terminal board:
3
TB4310-BZ
TB4310-BZE
Both signal lines have been pulled up at 470 ohm, therefore, an open collector can be connected on
th
e ou
tput side.

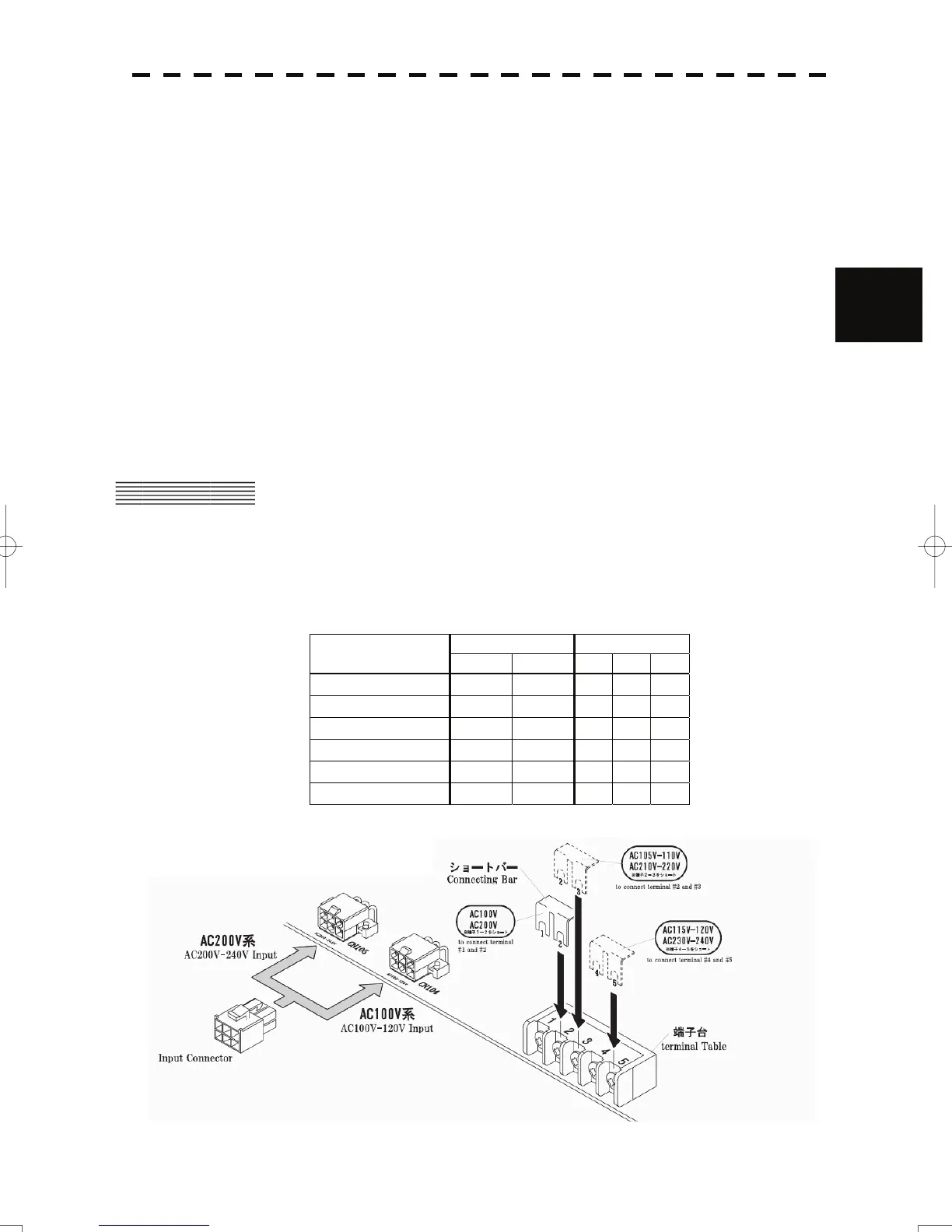

3.13 POWER SUPPLY (NBA-5111) (OPTION)
If the ship's mains are alternating current, use the pow
e
r supply. The power supply can be used for both
AC100-120 V and AC200-240 V of the ship's mains, but the input connector and the connecting bar must
be changed.
Input connector Connecting bar
INPUT VOLTAGE
CN105 CN104 1-2 2-3 4-5
AC100V
○ ○
AC105-110V
○
○
AC115-120V
○
○
AC200V
○
○
AC210-220V
○
○
AC230-240V
○
○
3-24
