(2)

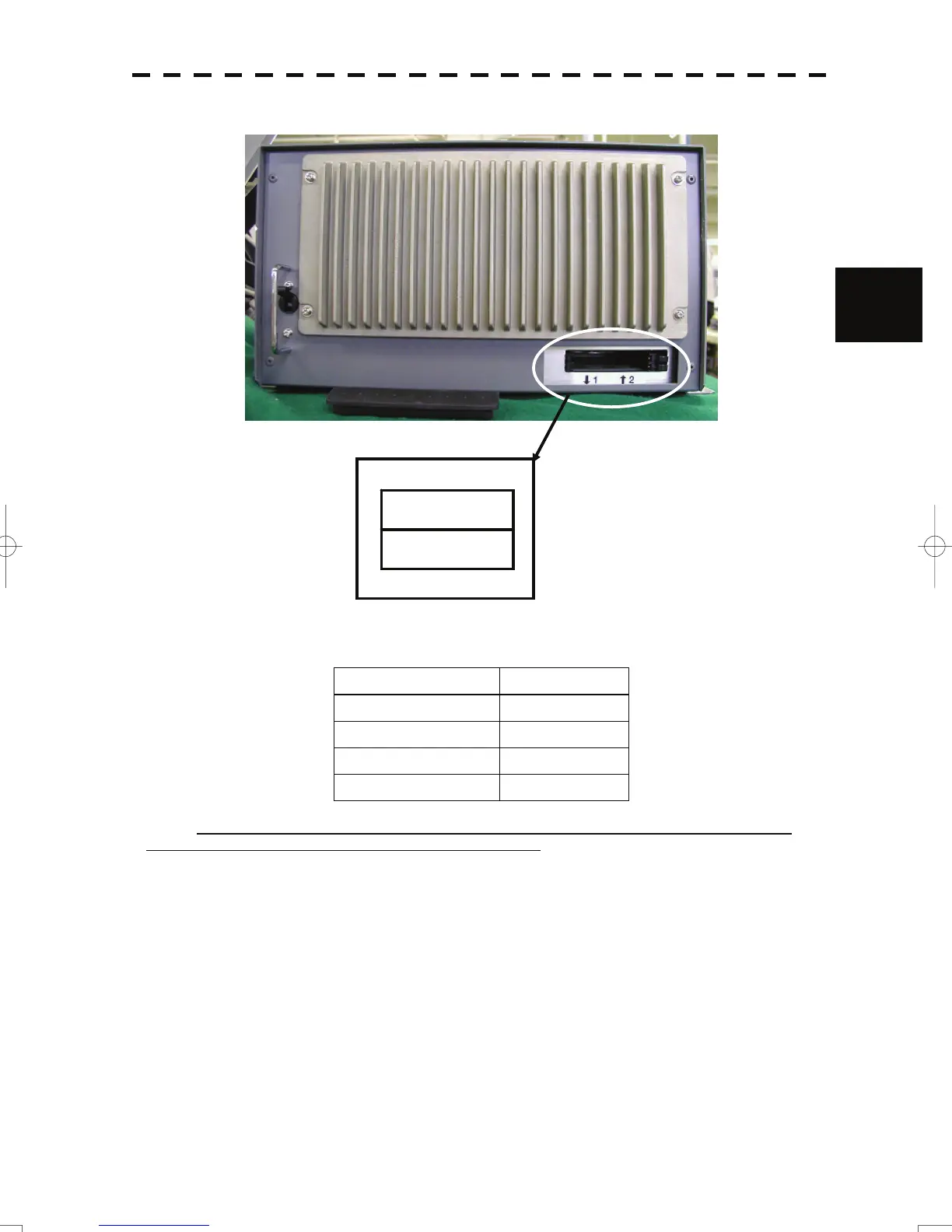

JMA-5300MK2 series car
d slot
numbers are
assigned as shown
below:
3
Insert the card into the
specified sl
ot accordi
n
g to the following table:
Card type
Insertion slot
No.
JRC card
Either one
ERC card
Either one
C-Map NT+ detail card
Either one
Memory card
Either one
Note
The Background of C-Map has been built
in, don’t insert C-Map
NT+ backgr
ound card.
If the backgr
ound card is inserted, the system will malfunction.
Slot No.1
Slot No.2
3-34
62
64
Table of Contents
Table of Contents
3
Overview
9
Installation of the Scanner
11
Selecting the Installation Position
12
Installation Procedure
18
Jma-5312-6/6Hs
19
Jma-5322-7/9/6Hs
19
Jma-5332-12
19
Connecting the Installation Cable Nke-2103 (Jma-5312-6/6Hs)
22
Connecting the Installation Cable Nke-2254 (Jma-5322-7/9/6Hs)
24
Connecting the Installation Cable Nke-1130 (Jma-5332-12)
26
Installation of the Display Unit
29
Selecting the Installation Position
30
Installation of the Lcd Monitor
31
Installation of the Operation Unit
32
Installation of the Power Cable (Cfq-5436)
33
Installation of the Cable (Cfq-6912) between the Radar Process Unit and the Scanner
35
Connecting to the Gps Receiver
37
Connecting to the Gps Compass
39
Jlr-20/30
41
Other Magnetic Compass
42
Connecting to Nmea Heading Output Device
43
Connecting to the Gyro and Electromagnetic Log (Gyro I/Funit Setting) (Opton)
45
Connecting to the Gyro and Electromagnetic Log
45
Connecting to the Pc Plotter
50
Connecting to Other Nmea Devices
50
Connecting to Other Devices
51
Power Supply (Nba-5111) (Option)
53
Target Tracking (Nca-877Wa/877A) (Option)
54
Plotter Circuit (Ndb-34A) (Option)
56
Connecting to Ais (Nqa-2103) (Option)
58
Coastline Rom Card/Memory Card (Option)
62
Connect Slave Monitor / Vdr
65
Interswitch Unit (Nqe-3141-4A/8A) (Option)
68
Installation of the Power Control Unit (Nqe-3167) (Option)
70
Connection with Nke-2103 (Jma-5312-6/6Hs) / Nke-2254 (Jma-5322-7/9/6Hs) Scanner Units
70
3.20.2 Connection with NKE-1130 (JMA-5332-12) Scanner Unit
70
Installation of the Power Control Unit
70
(Nqe-3167) (Option)
70
3.20.3 Connection to Display Unit
71
3.20.4 Equipment Cable End Processing
71
Installation of the Lan Cable (Option)
72
3.21.1 Connection to NDC-1417 RADAR PROCESSOR UNIT
73
Network Setting (Network)
74
Transmit/Receive Data Setting (Lan Port Setting)
76
3.21.4 Equipment Cable End Processing
79
Initial Setting
85
How to Open the Serviceman Menu
86
Tune Adjustment
87
Bearing Adjustment
89
Range Adjustment
89
Navigator Setting (Device)
90
Setting of True Bearing Value
90
Antenna Height Setting (Antenna Height)
91
Setting of Ccrp/Antenna/Gps Antenna Position (Ccrp Setting)
92
Setting of Ccrp/Antenna/Gps Antenna Position
92
→ 4. CCRP Setting
92
Communication Port Setting (Com Port Setting)
94
Sector Blank Setting (Sector Blank)
97
Tni Blank Setting (Tni Blank)
98
Setting of Bearing Pulses from Antenna (Output Pulse)
99
Setting of Bearing Pulses from Antenna
99
→ 6. Output Pulse
99
Slave Mode Setting (Master/Slave)
100
Language Setting (Language)
101
Date Time Setting
101
Main Bang Suppression Adjustment (Mbs)
102
Adjustment of Performance Monitor (Mon)
103
Magnet Compass Setting
104
Gps Receiver Setting
105
Dgps Receiver Setting
109
Sbas Receiver Setting
111
Displaying Gps Reception Status
113
