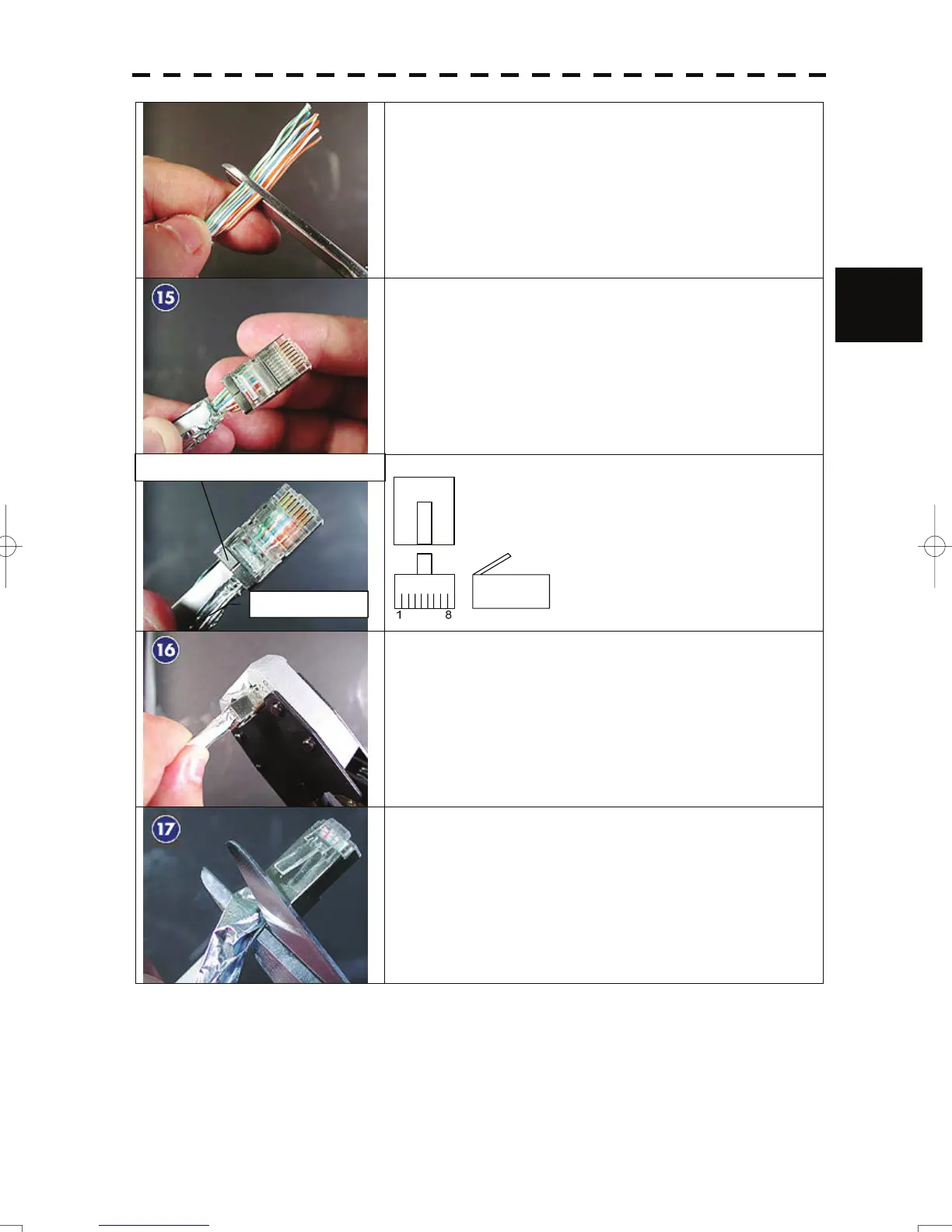

Insert the core wires into the STP connector.
Check the leading edges of the wires reach to the connector
edge.
NOTE: Also
check
that the foil and the drain wire are touched
to the metal part inside the connector.
(From left to right) Pin No.1－No.8
Calk by a calking tool.
Cut off the unnecessary foil and drain wire by scissors.
3
The metal part inside the connector
Drain wire
3-54
