JUDO PROFI-PLUS 13
Operation
5. Operation
ATTENTION
(see chapter “Safety information and dan-
gers due to non-compliance”)
Always observe the chapter “Intended Use”!
5.1 Commissioning
Before starting up (initial putting into service
or startup after maintenance work), fill the
filter with water and vent!
– To this end, after installation the filter
station is filled with water by opening the
upstream shut-off valve.
– The filter is now at the same pressure as
the water system.
– The enclosed air must then be immedi-
ately removed from the filter station in or-
der to avoid damage to the installation
caused by pressure surges. The filter
station is vented by means of backwash-
ing (see chapter “Discharging the back-
washing water”).
– After backwashing and venting the filter
station is ready for use.
– Note electronics only JPF
+
¾" –1¼":
A note electronics is accommodated in
the lid of the handwheel. It uses a beep
to remind every two months that the filter
needs to be backwashed.
Activation:
• Lift the lid of the handwheel.
• Insert the two included batteries in the
battery compartment. Use 1.5 V Micro
batteries.
• Replace the handwheel lid.
• You can test the functionality by press-
ing the
RESET-key in the lid of the hand-
wheel.
5.2 Funktional description
Water (a) flows through the built-in rotary
flange (10) into the filter.
A coarse filter (9) prevents large dirt parti-
cles from getting into the fine filter (12). The
water flows through the fine filter (12) from
the outside inwards.
The filtered dirt is retained by the fine filter
(12) screen. The adhering dirt is visible
through the transparent filter bell (6). The fil-
tered water (b) then leaves the filter via the
built-in rotary flange (10).
JPF
+
¾" – 1¼"

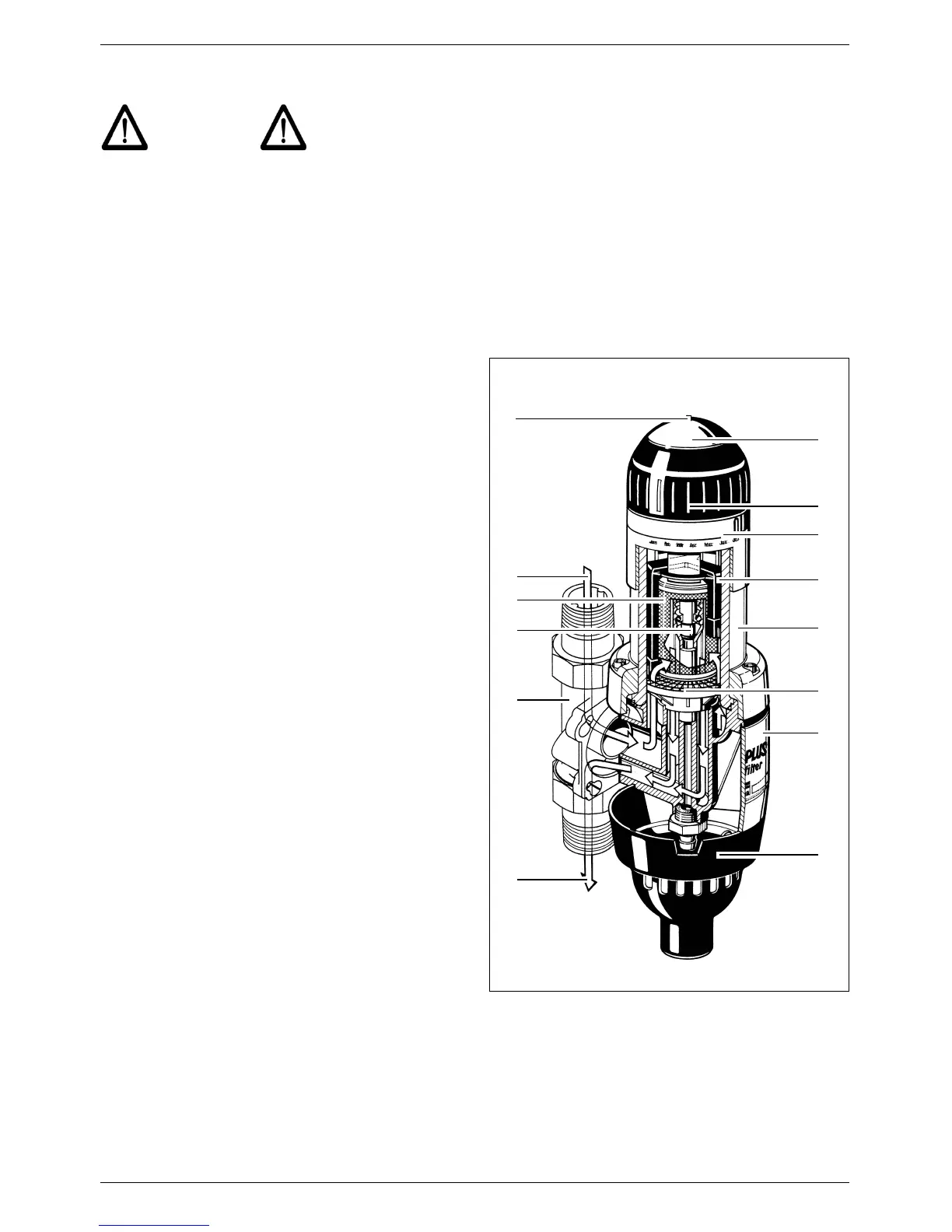

Abb. 8: Funktional description
1
2
3
4
5
6
7
8
9
10
11
12
a
b
