22 JUDO PROFI-PLUS
Data Sheet
9.5
Installed dimensions
¾" - 1¼"
9.6
Installed dimensions
1½" - 2"

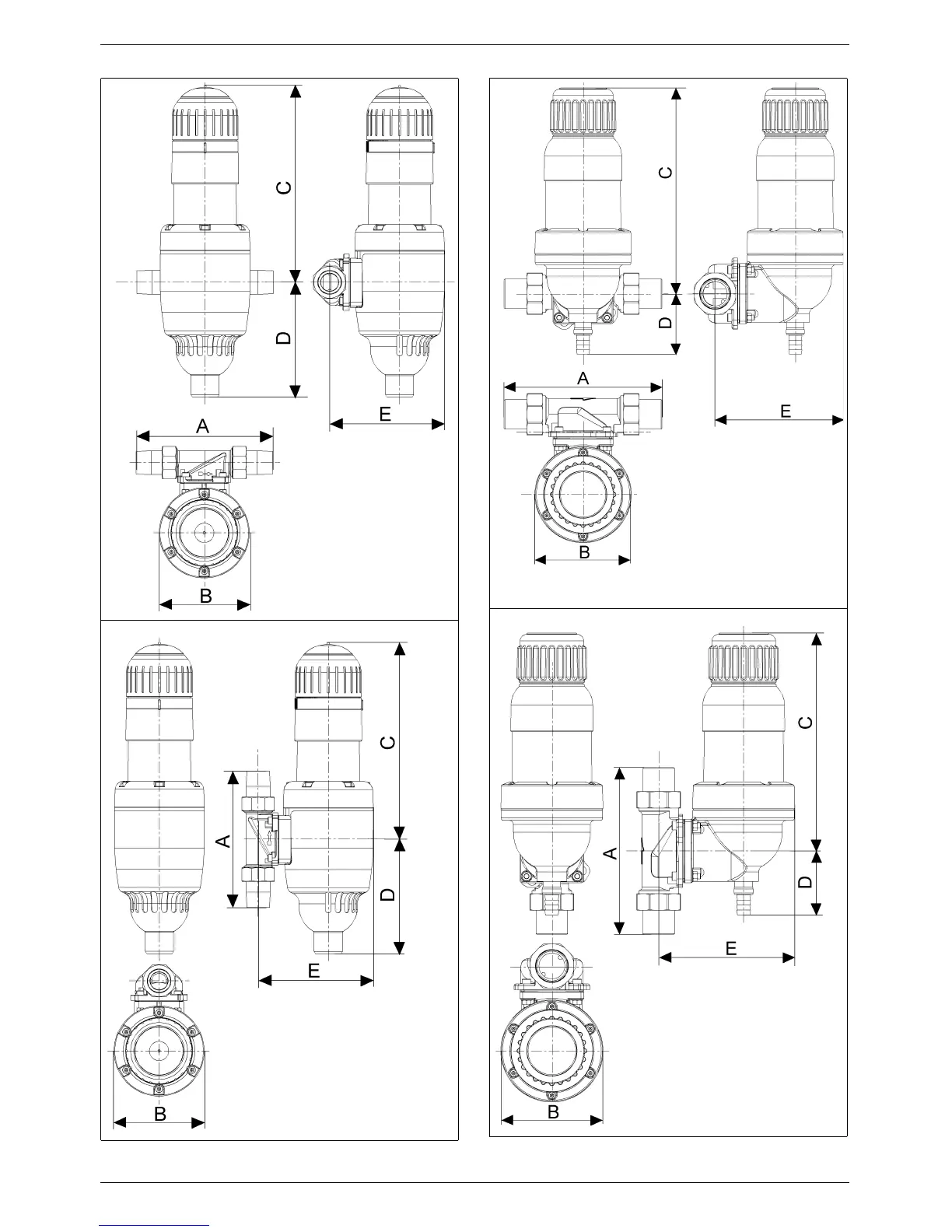

Abb. 9: Installed dimensions ¾" - 1¼"
Montage:
built-in rotary flange
horizontal
Montage:
built-in rotary flange
vertical
Abb. 10: Installed dimensions 1½" - 2"
Montage:
built-in rotary flange
horizontal
Montage:
built-in rotary flange
vertical
