−19 −
(4)
(3)
(10)
(1)
(2)

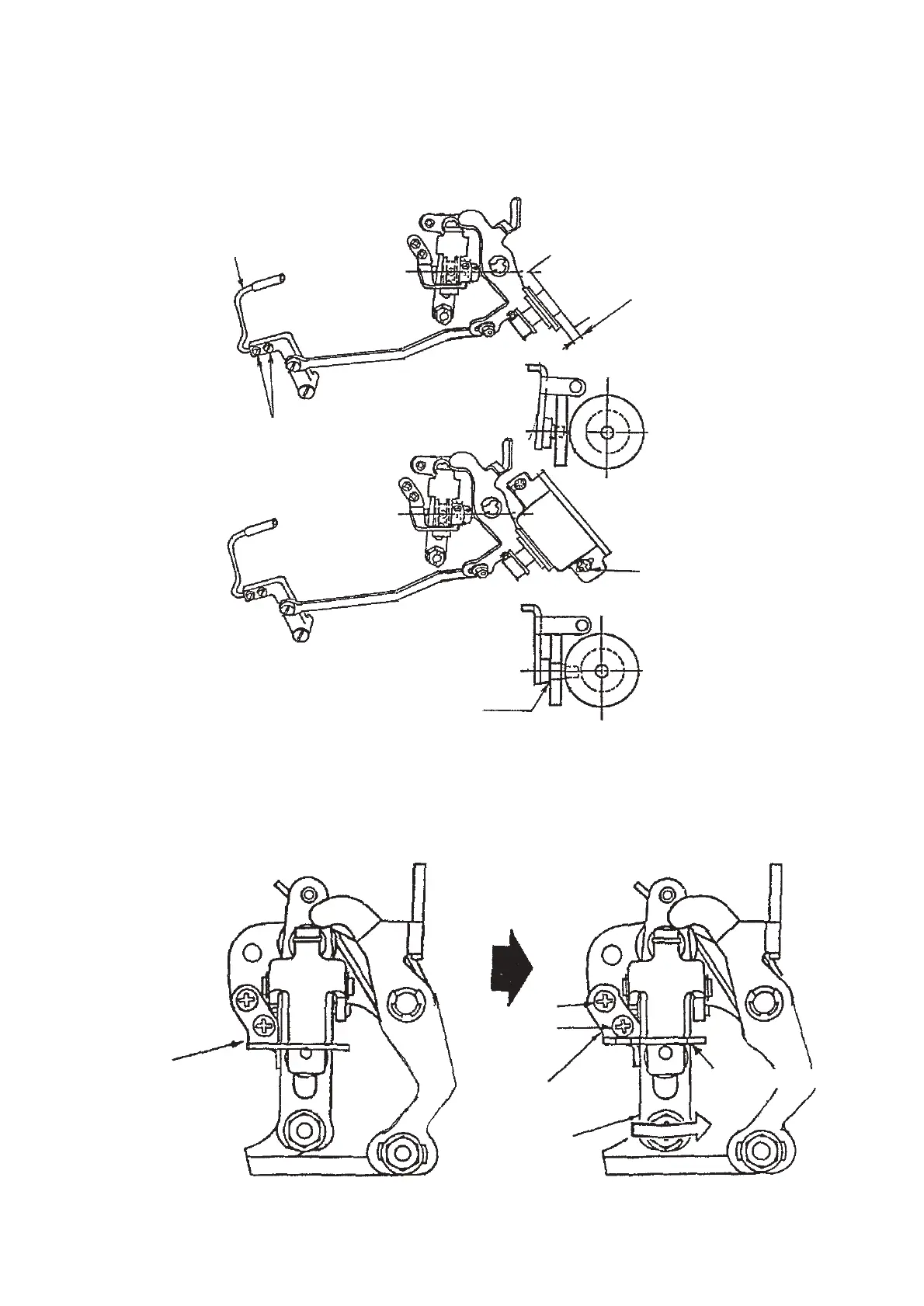

3-13 Adjusting the clutch plate and the thread trimmer solenoid
The stroke of thread trimmer solenoid is 6 mm.
Installing positions of the clutch plate and the solenoid are the positions where the clearance of section A is 0.1 to
0.5 mm when the thread trimmer solenoid is drawn (Fig. 30).
In this state, tighten solenoid setscrew (Fig. 30 (10)).
Solenoid stroke 6 mm
Driving arm
stopper
3-14 Driving arm stopper
Section A
Fig. 30
Driving arm
stopper
Roller arm
Fig. 31
Stopper section
A
