(8) Adjustment of the amount of feeding
7) Adjustment of the feed dial section
Standard Adjustment

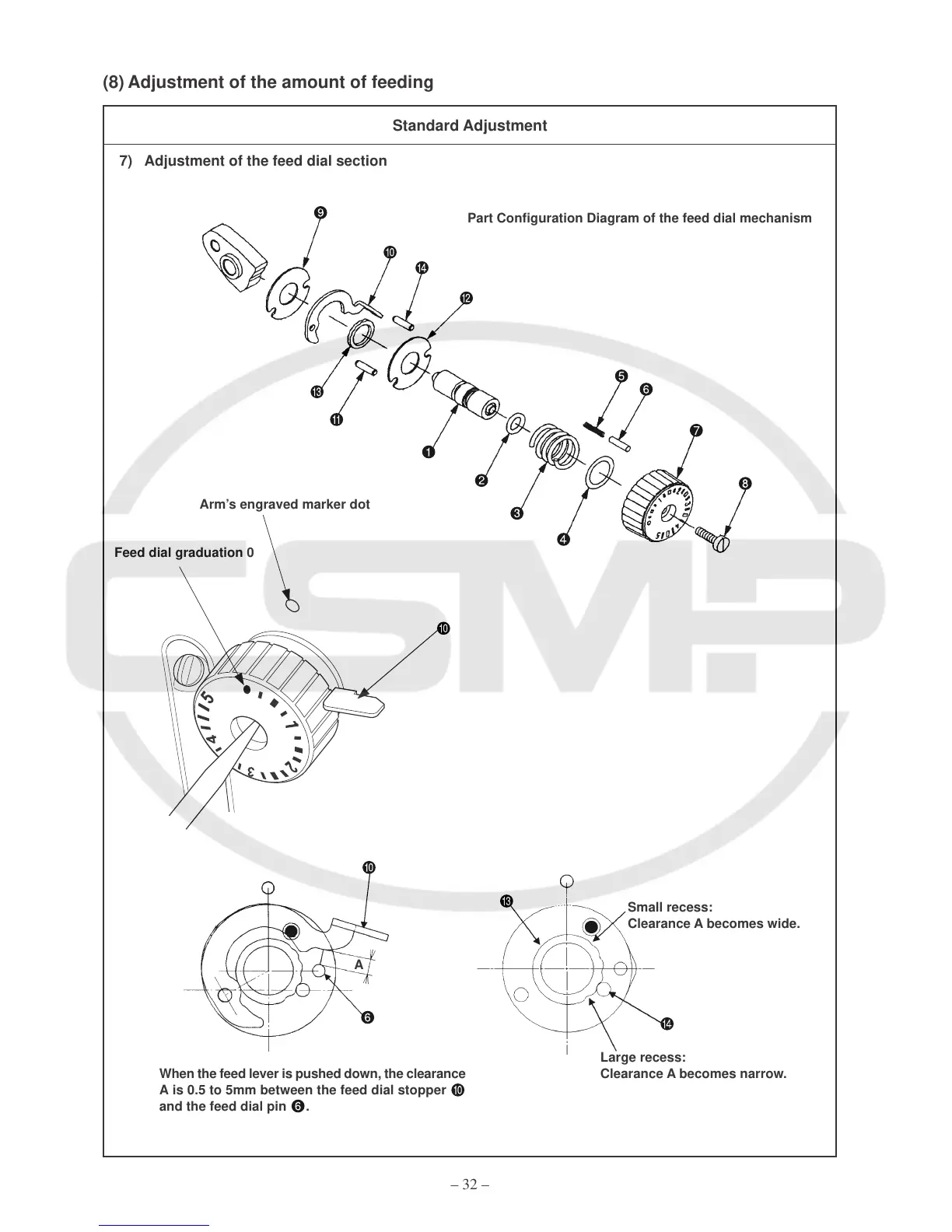

Part Configuration Diagram of the feed dial mechanism
Arm’s engraved marker dot
Feed dial graduation 0
A
Small recess:
Clearance A becomes wide.
Large recess:
Clearance A becomes narrow.
When the feed lever is pushed down, the clearance
A is 0.5 to 5mm between the feed dial stopper
and the feed dial pin .
