(8) Adjustment of the amount of feeding

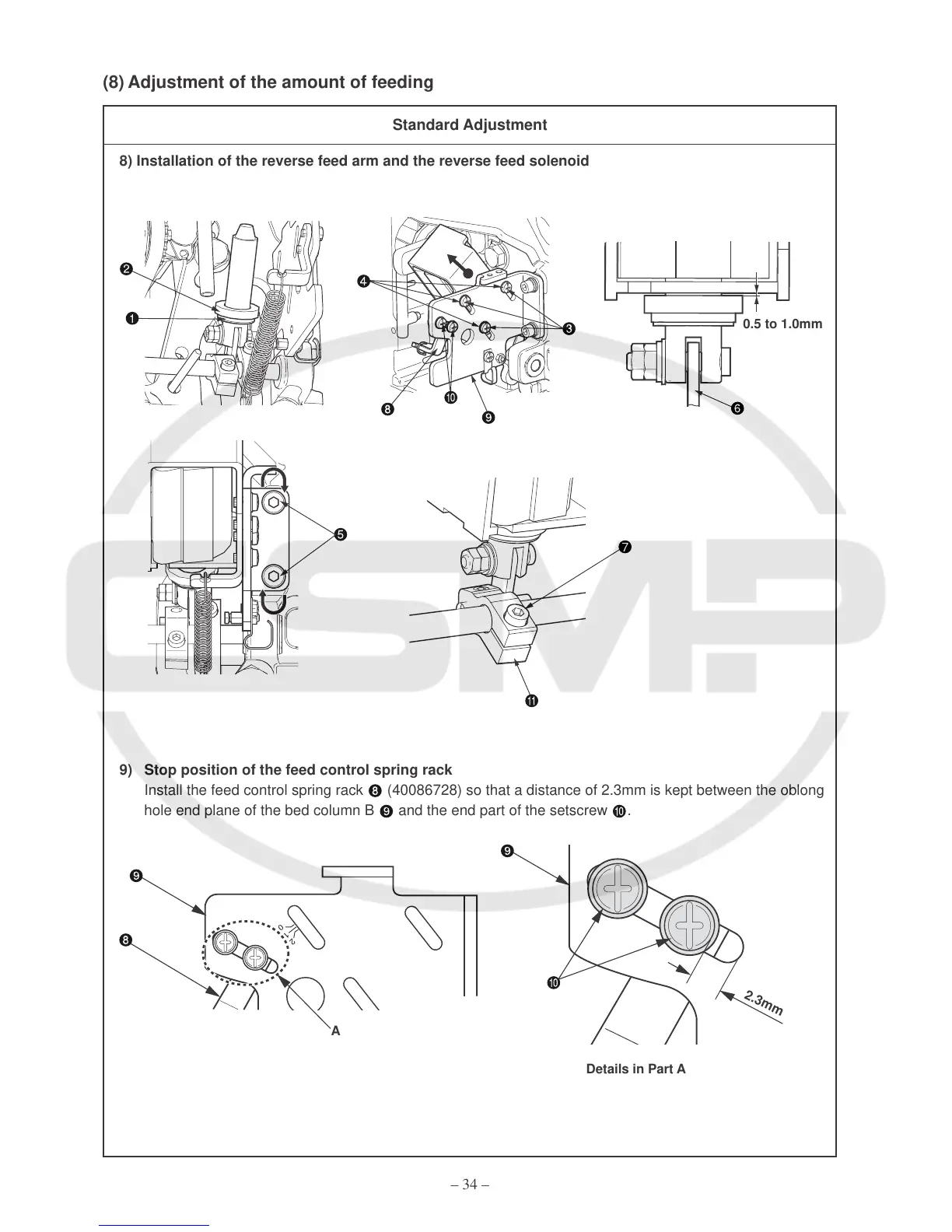

8) Installation of the reverse feed arm and the reverse feed solenoid
Standard Adjustment
0.5 to 1.0mm
9) Stop position of the feed control spring rack
Install the feed control spring rack (40086728) so that a distance of 2.3mm is kept between the oblong
hole end plane of the bed column B and the end part of the setscrew .
2.3mm
A
Details in Part A
