JUKI DDL-9000B-DS - Adjustment of the Micro-Lifter; Adjustment of the Micro-Lifter Unit (Available Separately)

– 38 –

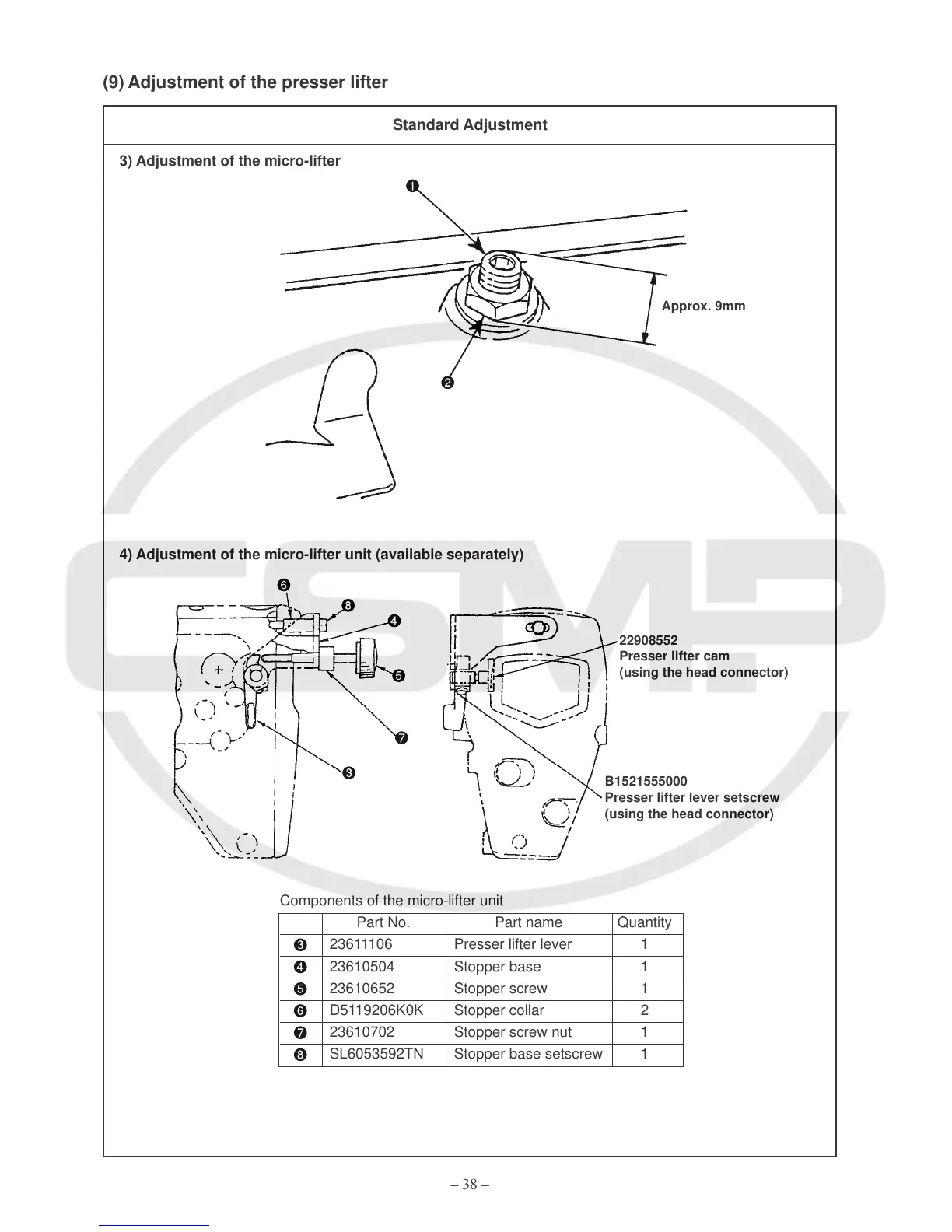

(9) Adjustment of the presser lifter
3) Adjustment of the micro-lifter
Part No. Part name Quantity
23611106 Presser lifter lever 1
23610504 Stopper base 1
23610652 Stopper screw 1
D5119206K0K Stopper collar 2
23610702 Stopper screw nut 1
SL6053592TN Stopper base setscrew 1
Components of the micro-lifter unit
4) Adjustment of the micro-lifter unit (available separately)
Approx. 9mm
22908552
Presser lifter cam
(using the head connector)
B1521555000
Presser lifter lever setscrew
(using the head connector)
Standard Adjustment
