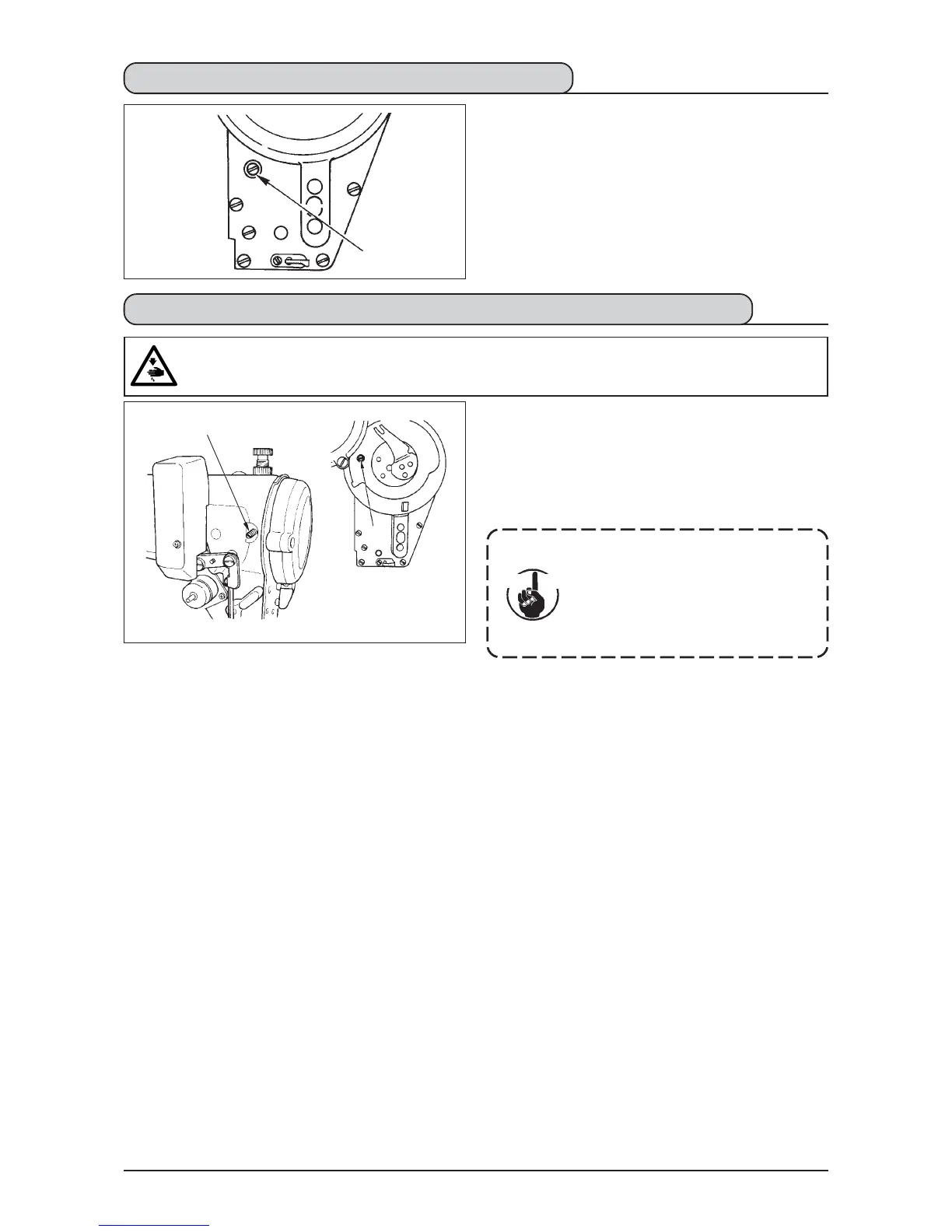

8-3. Adjusting the height of the presser bar
1) To change the height of the presser bar or the
inclination of the presser foot, loosen the presser
bar connection screw 1and perform the adjustment
properly.
2) After the adjustment, securely tighten the screw.
8-4. Adjusting the micro-lifting mechanism of the presser foot
Some type of material needs to be sewn with the presser
foot slightly lifted. In this case, perform this adjustment
following the procedure described below.
1) Loosen the setscrew 1 in the presser foot micro-lifter.
2) Turn the presser foot micro-lifting screw 2 clockwise
through the hole in the face plate until the presser foot is
raised as desired. Then, tighten the screw 1 .
If you do not use the micro-lifting
mechanism of the presser foot, fully
return the presser foot micro-lifting
screw 2 to its home position.
The standard of lifting amount of
the presser foot is as thick as a
sheet of paper.
WARNING :
To protect against possible personal injury due to abrupt start of the machine, be sure to start the
following work after turning the power off and ascertaining that the motor is at rest.
Cau tion
1
2
