JUKI LK-1900A Series - Table Installation Drawings; Table Type for Longitudinal Installation

– 119 –

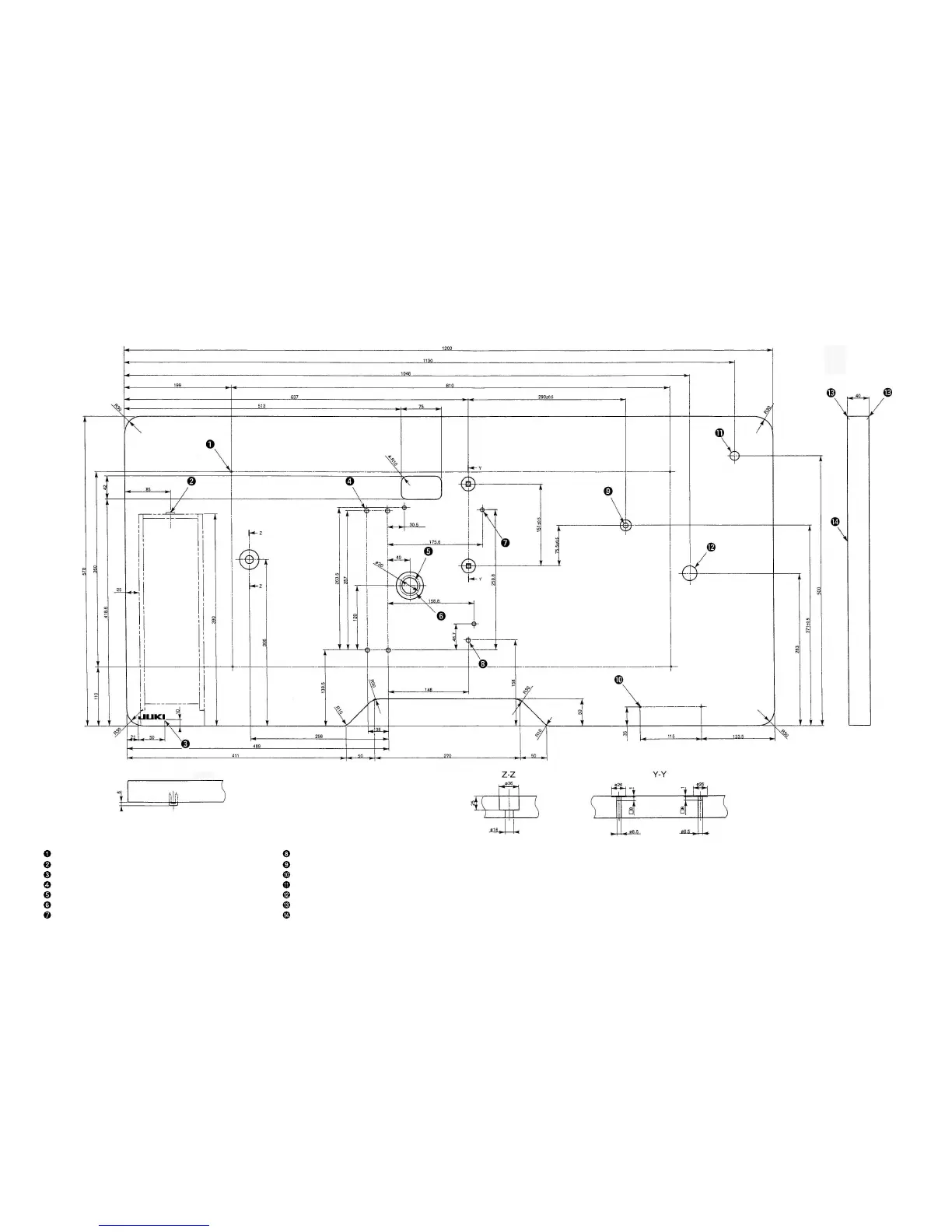

13. Table drawings
(1) Table type for longitudinal Installation
For LK-1900A
For LK-1901A
For LK-1903A
Part No.: 40006886
4x2 drill depth 10 rear side (Table stand mounting holes) 8 drill
Drawer stopper mounting position (1 position on rear side) 9 drill x20 depth Counterbore depth 17
JUKI logotype 2x2 drill depth 10 rear side (Power switch mounting holes)
4x8 drill 17 drill
30 drill 51 depth Counterbore depth 16 28 drill
Oil drain funnel mounting hole R2 (all periphery)
3x7 drill, depth 6 Top of a table
