JUKI LU-2810 Series User Manual

– 2 –
2. Standard adjustment

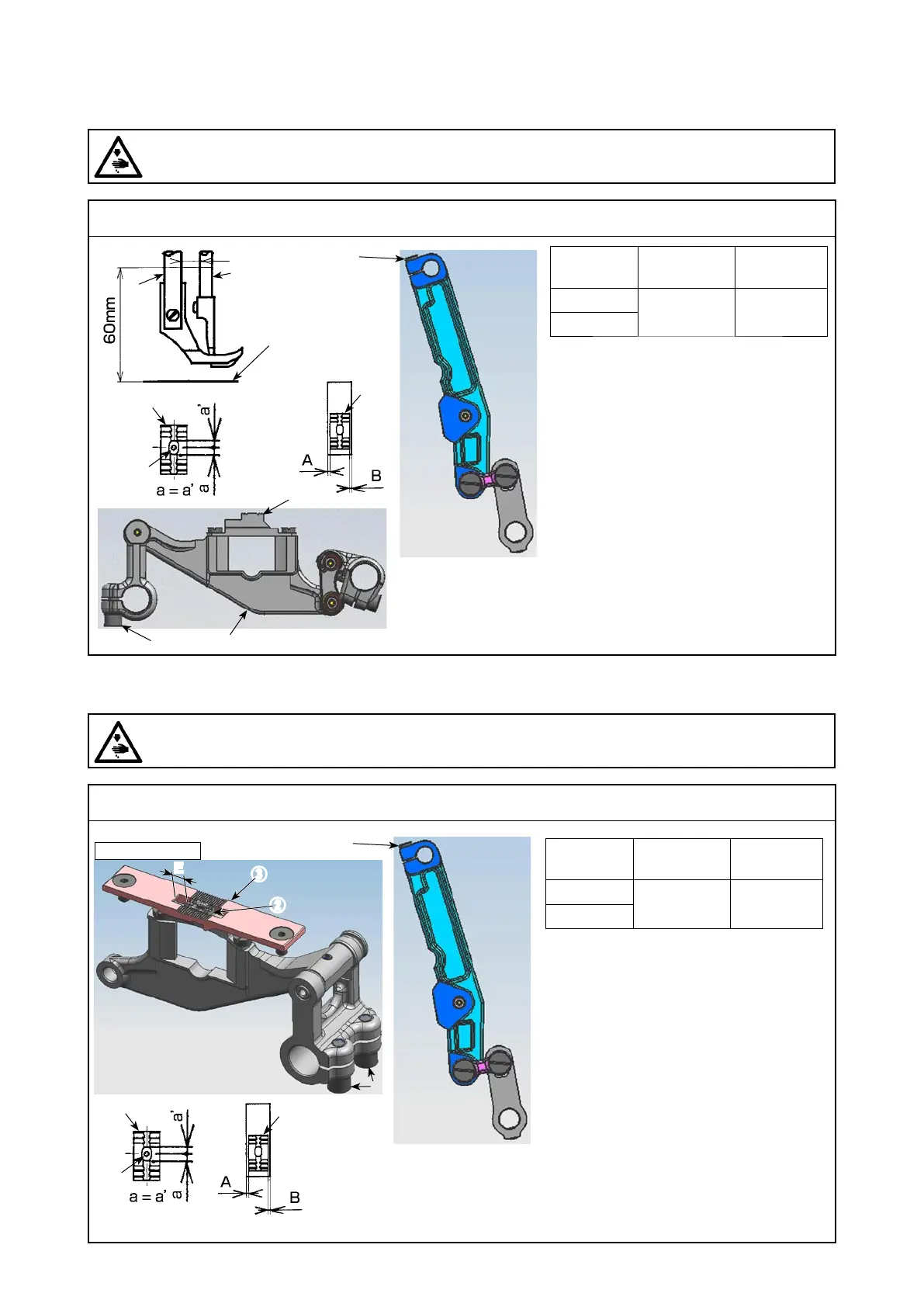

(1) Needle entry position (Standard gauge type)
WARNING :
Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the
sewing machine.
Standard adjustment
(2) Needle entry position (Europe gauge type)
WARNING :
Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the
sewing machine.
Standard adjustment
Model
Dimension E
(mm)
Gauge type
LU-2810
7.5 ± 0.1
Standard
gauge type
LU-2810-7
[Conditions]
• Needle bar at lowest dead point
• Feed amount : 0 mm
• Height of feed dog : 0.5 to 0.6 mm
(Highest position)
1
2
2
6
2
E
Top surface of
3
8
7
4
5
2
4
E
3
2
Operator's side
1
2
6
Model
Dimension E
(mm)
Gauge type
LU-2810
5.2 ± 0.2
Europe
gauge type
LU-2810-7
[Conditions]
• Needle bar at lowest dead point
• Feed amount : 0 mm
• Height of feed dog : 0.5 to 0.6 mm
(Highest position)
海外講習会用121122LU-2810(-7)EM

JUKI LU-2810 Series Specifications

General

Max Stitch Length	9 mm
Lubrication	Automatic
Max Sewing Speed	2, 800 sti/min
Needle Type	DPx5
Motor	Servo Motor
Machine Type	Lockstitch
