– 4 –
6) Install hinge
on the bed with screw
. En-
gage the hinge with the rubber hinge of the
table. Then, place the machine head on the
machine head support rubber.

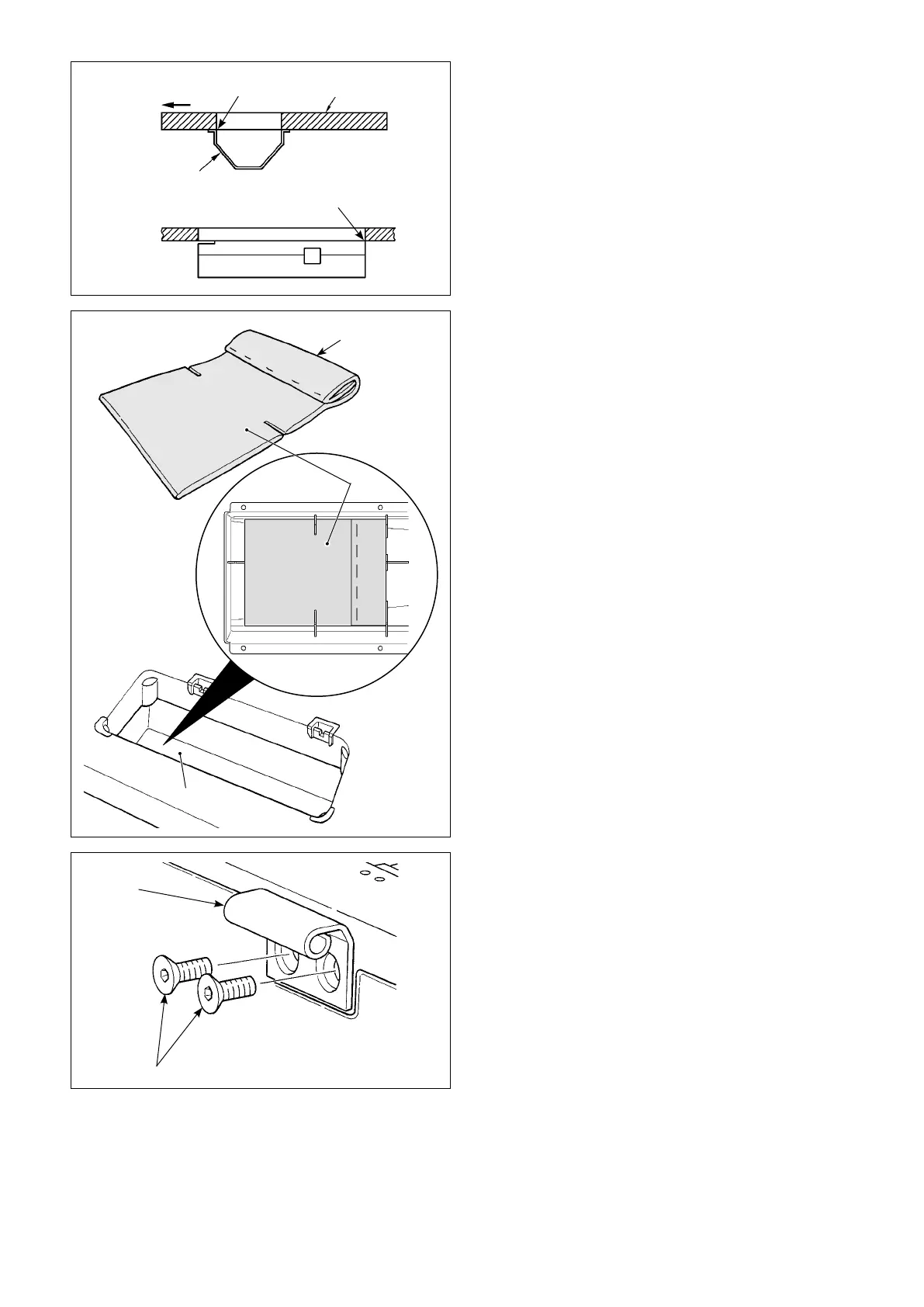

5) Attach a lter
to the oil pan
❾
as shown in
the gure.
Install lter
so that its multi-layered part is
brought to the right side as observed from you.
Multi-layered part
❾
Top surface
4) Attaching the oil pan
Fix the oil pan
❾
supplied with the machine on
the table by tightening ten wood screws.
Operator’s side
Table
❾
Align
Align
